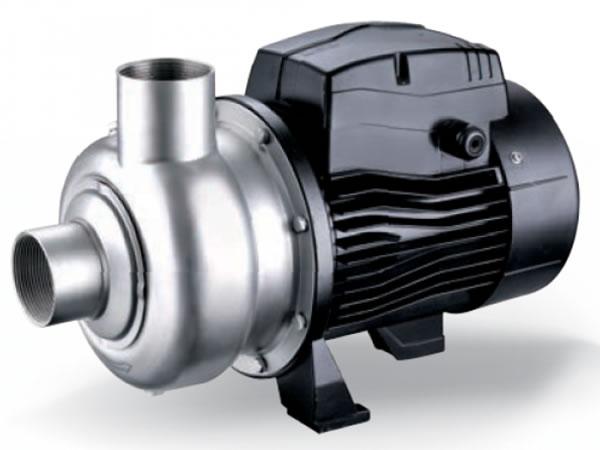

ABK Semi Open Impeller Stainless Steel Centrifugal Pump
ABK Semi Open Impeller Stainless Steel Centrifugal Pump Features
- AISI 304 pump body
- AISI 304 shaft
- Max. liquid temperature: +35℃
ABK Semi Open Impeller Stainless Steel Centrifugal Pump Motor Features
- Motor with copper winding
- Built-in thermal protector for single phase motor
- Insulation class: F
- Protection class: IPX4
- Max. temperature: +40℃
| MODEL | POWER | Q(m3/h) | 1.2 | 2.4 | 3.6 | 4.8 | 6 | 12 | 18 | 24 | 33 | 42 | 48 | 57 | 66 | ||
| 1~ | 3~ | kW | HP | Q(l/min) | 20 | 40 | 60 | 80 | 100 | 200 | 300 | 400 | 550 | 700 | 800 | 950 | 1100 |
| 0.37 | 0.5 | H (m) | 11.6 | 10.5 | 9.7 | 8.7 | 7.5 | ||||||||||
| 0.75 | 1 | 8 | 7 | 5 | |||||||||||||
| 0.9 | 1.2 | 11 | 10 | 9 | |||||||||||||
| 1.1 | 1.5 | 9.5 | 8.8 | 7.8 | 6.7 | 5 | |||||||||||
| 1.5 | 2 | 12.7 | 12 | 11.2 | 10 | 8.3 | 6.5 | ||||||||||
| 2.2 | 3 | 15 | 14 | 13.5 | 12.7 | 11.2 | 9.8 | 8.9 | 7.5 | ||||||||
| - | 3 | 4 | |||||||||||||||
| No. | Part | Material |
| 1 | Bottom support | Steel |
| 2 | Pump body | AISI 304 |
| 3 | Diffuser | AISI 304 |
| 4 | Impeller | AISI 304 |
| 5 | O-ring | NBR |
| 6 | Airproof plate | AISI 304 |
| 7 | Support | ZL 102 |
| 8 | Mechanical seal | Silicon Carbide/Carbon |
| 9 | Ball bearing | |
| 10 | Rotor | |
| 11 | Stator | |
| 12 | Fan | PP |
| 13 | Rear housing | ZL 102 |
| 14 | Fan cover | PP |
| 15 | Terminal box | ABS |
LEO is a listed company in China (stock code 002131), LEO is a leading stainless steel centrifugal water pump manufacturer only offers high quality pumps. LEO has made millions of pumps now used in more than 140 countries, and is offering residential water pumps, submersible pumps, deep well pumps with custom solutions. LEO stainless steel centrifugal water pumps can meet you any requires in domestic pumping systems.
