Application
ECH-F stainless steel horizontal multistage pump is applicable to household water supply, equipment support, pipeline pressurization, garden watering, vegetable greenhouse watering, fish farming & poultry raising, industrial and mining, water supply and drainage in high-rise building, central air conditioner and centralized heating circulation system, etc.

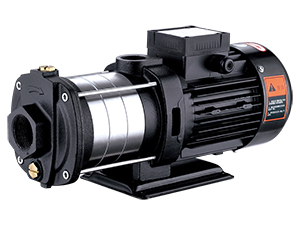

ECH-F Stainless Steel Horizontal Multistage Pump Features
- AISI 304 shaft.
- Max. liquid temperature: +60℃.
- Altitude: up to 1000m .
- Max. suction: 8m.
- Max. inlet pressure: limited by max. operating pressure.
- Max. operation pressure: 10 bar
-Liquid PH value: 6.5-8.5
ECH-F Stainless Steel Horizontal Multistage Pump Motor Features IE2 motor
- Motor with copper winding.
- Built-in thermal protector for single phase motor .
- Insulation class: F.
- Protection class: IPX4.
- Max. ambient temperature: +40℃.

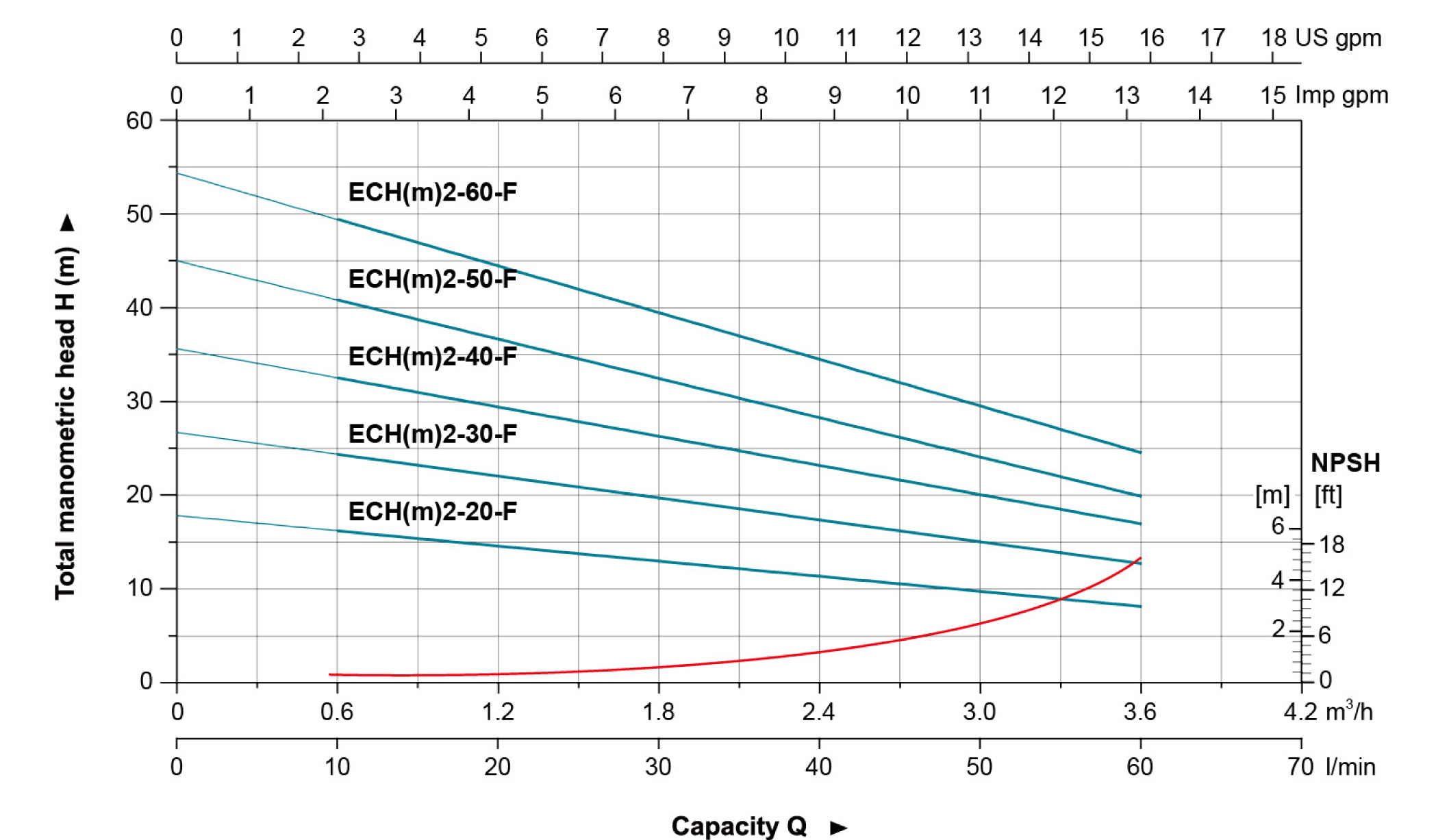

Model | Power | Q(m³/h) | 0 | 0.6 | 1.2 | 1.8 | 2.4 | 3.0 | 3.6 | |
kW | HP | Q(l/min) | 0 | 10 | 20 | 30 | 40 | 50 | 60 | |

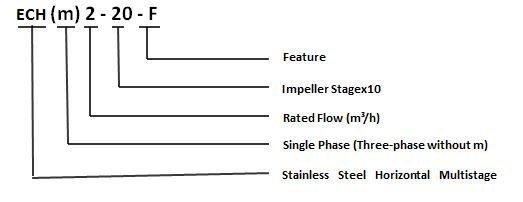

ECH(m)2-20-F | 0.37 | 0.5 | H (m) | 18 | 16 | 15 | 13 | 12 | 10 | 8 |
ECH(m)2-30-F | 0.37 | 0.5 | 27 | 24 | 22 | 20 | 18 | 16 | 12 | |
ECH(m)2-40-F | 0.55 | 0.75 | 35 | 33 | 30 | 26 | 24 | 21 | 16 | |
ECH(m)2-50-F | 0.55 | 0.75 | 45 | 40 | 37 | 33 | 30 | 24 | 19 | |
ECH(m)2-60-F | 0.75 | 1.0 | 53 | 50 | 45 | 40 | 36 | 30 | 23 |

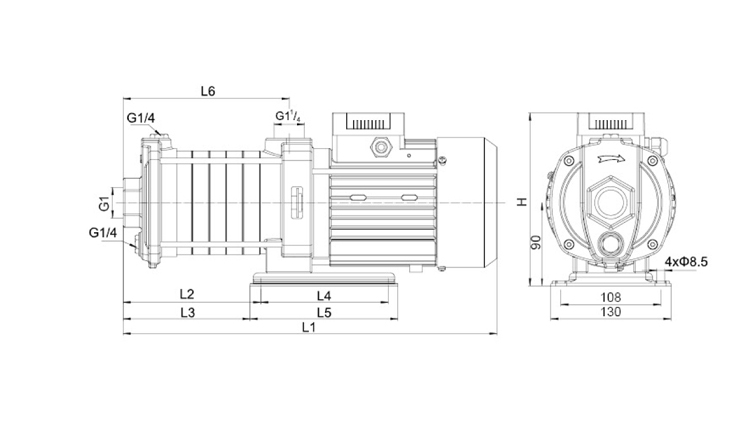

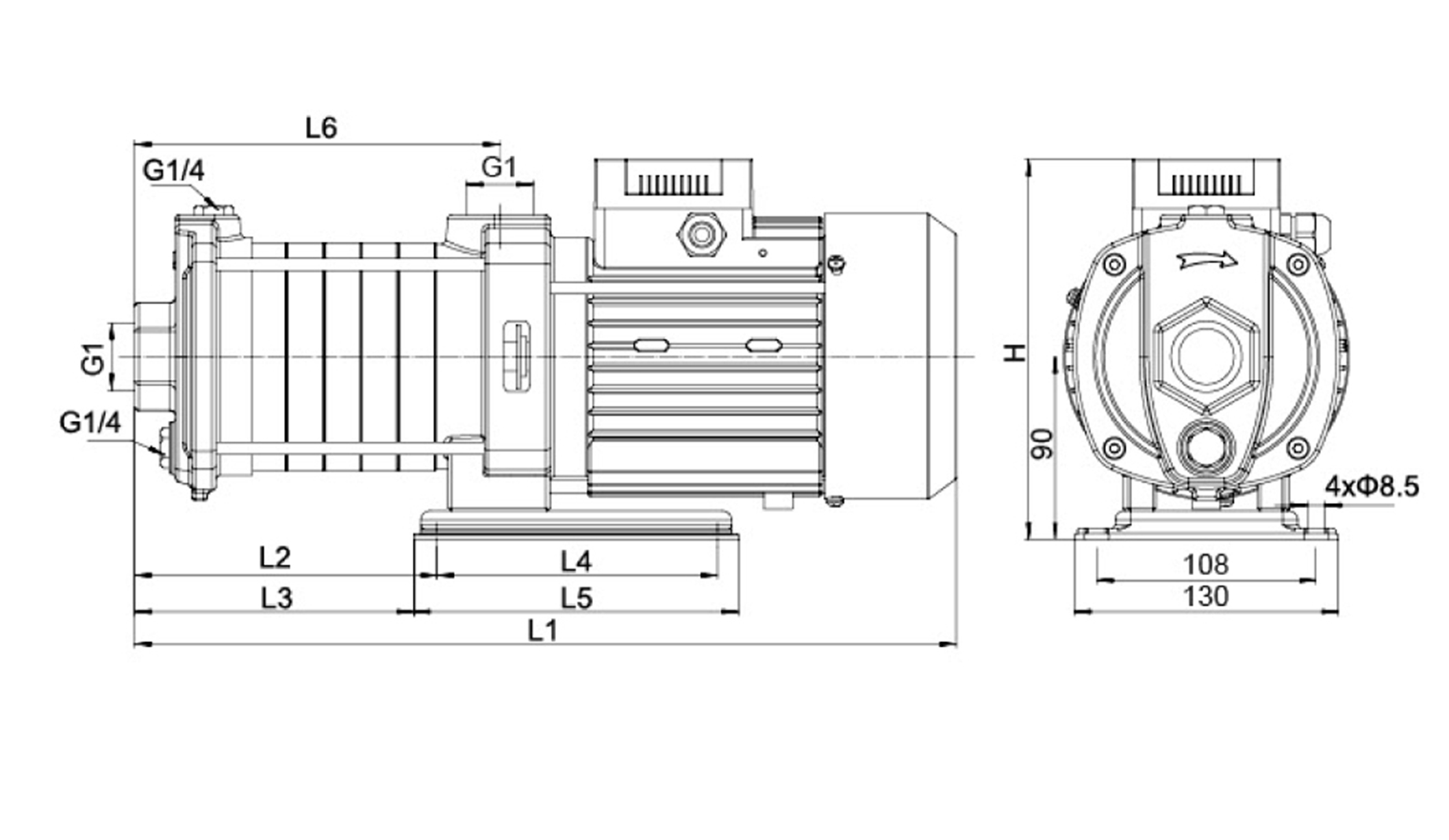

Model | L1 | L2 | L3 | L4 | L5 | L6 | H | GW (kg) | LxWxH (mm) | Quantity (PCS/20'TEU) | |
1~ | 3~ | ||||||||||
ECH(m)2-20-F | 333 | 75 | 64 | 138 | 160 | 103.5 | 197.5 | 187 | 12.3 | 400x205x240 | 1386 |
ECH(m)2-30-F | 352 | 93.5 | 82.5 | 138 | 160 | 122 | 197.5 | 187 | 12.6 | 400x205x240 | 1260 |
ECH(m)2-40-F | 370 | 112 | 101 | 138 | 160 | 140.5 | 197.5 | 187 | 13.3 | 400x205x240 | 1386 |
ECH(m)2-50-F | 389 | 130.2 | 119.5 | 138 | 160 | 159 | 197.5 | 187 | 13.8 | 400x205x240 | 1260 |
ECH(m)2-60-F | 407 | 149 | 138 | 138 | 160 | 177.5 | 197.5 | 187 | 14.7 | 400x205x240 | 1161 |

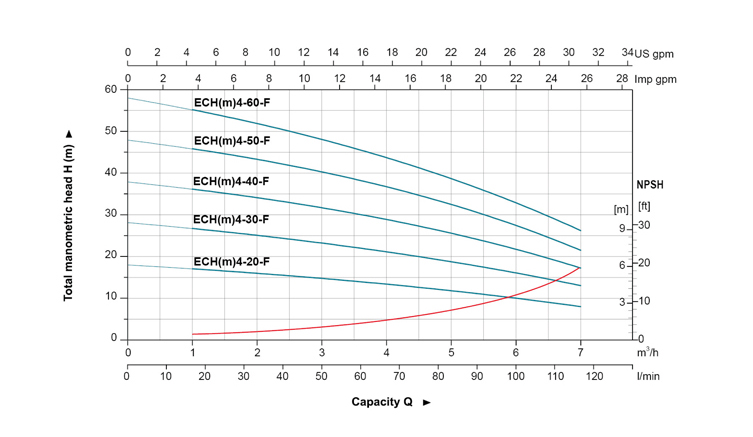

Model | Power | Q(m³/h) | 0 | 1 | 2 | 3 | 4 | 5 | 6 | 7 | |
kW | HP | Q(l/min) | 0 | 17 | 33 | 50 | 67 | 83 | 100 | 117 | |
ECH(m)4-20-F | 0.55 | 0.75 | H (m) | 18 | 17 | 16 | 15 | 13 | 12 | 10 | 8 |
ECH(m)4-30-F | 0.55 | 0.75 | 28 | 27 | 25 | 23 | 21 | 19 | 16 | 13 | |
ECH(m)4-40-F | 0.75 | 1.0 | 38 | 36 | 34 | 32 | 28 | 26 | 22 | 17 | |
ECH(m)4-50-F | 1.1 | 1.5 | 48 | 46 | 43 | 40 | 36 | 33 | 28 | 21 | |
ECH(m)4-60-F | 1.1 | 1.5 | 58 | 55 | 52 | 48 | 43 | 39 | 33 | 26 |

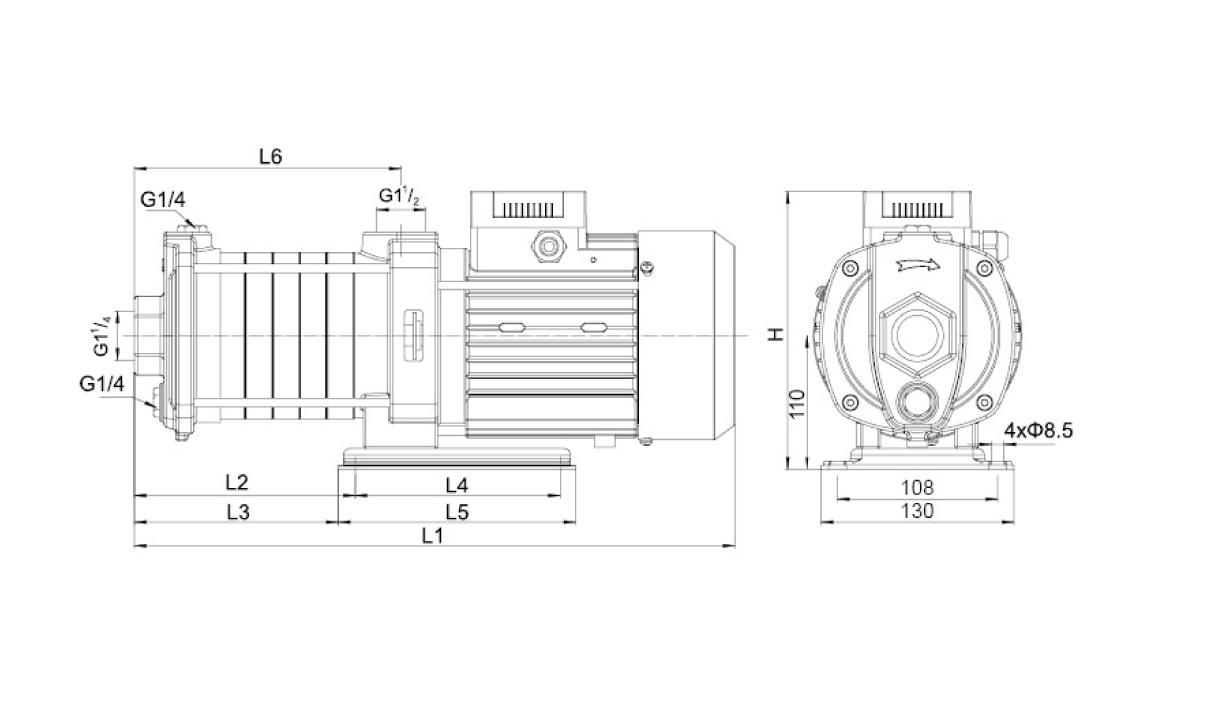

Model | L1 | L2 | L3 | L4 | L5 | L6 | H | GW (kg) | LxWxH (mm) | Quantity (PCS/20'TEU) | |
1~ | 3~ | ||||||||||
ECH(m)4-20-F | 342 | 85.5 | 74.5 | 138 | 160 | 114 | 197.5 | 187 | 12.8 | 400x205x240 | 1386 |
ECH(m)4-30-F | 370 | 113 | 102 | 138 | 160 | 141.5 | 197.5 | 187 | 13 | 400x205x240 | 1386 |
ECH(m)4-40-F | 398 | 140.5 | 129.5 | 138 | 160 | 169 | 197.5 | 187 | 14.9 | 400x205x240 | 1260 |
ECH(m)4-50-F | 426 | 168 | 157 | 138 | 160 | 196.5 | 197.5 | 187 | 15.7 | 400x205x240 | 1260 |
ECH(m)4-60-F | 453 | 195.5 | 184.5 | 138 | 160 | 224 | 197.5 | 187 | 15.9 | 400x205x240 | 1161 |

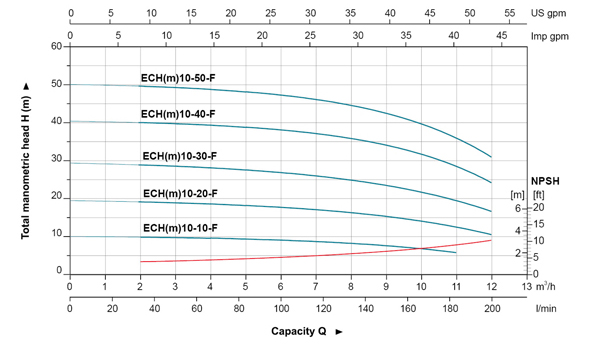

Model | Power | Q(m³/h) | 0 | 2 | 4 | 6 | 7 | 8 | 9 | 10 | 11 | 12 | |
kW | HP | Q(l/min) | 0 | 33 | 67 | 100 | 117 | 133 | 150 | 167 | 183 | 200 | |
ECH(m)10-10-F | 0.75 | 1.0 | H (m) | 10.1 | 9.8 | 9.6 | 9.1 | 8.7 | 8.2 | 7.7 | 6.8 | 5.8 | - |
ECH(m)10-20-F | 0.75 | 1.0 | 19.5 | 19 | 18.7 | 17.9 | 17.1 | 16.3 | 15.3 | 14 | 12.5 | 10.6 | |
ECH(m)10-30-F | 1.1 | 1.5 | 29.3 | 28.6 | 28.3 | 27.1 | 26.3 | 24.9 | 23.4 | 21.4 | 19.3 | 16.9 | |
ECH(m)10-40-F | 1.5 | 2 | 38.1 | 39.6 | 39.8 | 38.6 | 37.6 | 35.9 | 33.9 | 31.2 | 28.2 | 24.6 | |
ECH(m)10-50-F | 2.2 | 3.0 | 49.9 | 49.2 | 49.1 | 47.8 | 46.4 | 44.4 | 42.2 | 39.5 | 35.9 | 31.1 |
Model | L1 | L2 | L3 | L4 | L5 | L6 | H | GW (kg) | LxWxH (mm) | Quantity (PCS/20'TEU) | |
1~ | 3~ | ||||||||||
ECH(m)10-10-F | 389 | 122 | 111 | 138 | 160 | 120 | 232.5 | 226 | 21.5 | 435x275x310 | 896 |
ECH(m)10-20-F | 398 | 122 | 111 | 138 | 160 | 120 | 232.5 | 226 | 21.9 | 435x275x310 | 896 |
ECH(m)10-30-F | 428 | 152 | 141 | 138 | 160 | 150 | 232.5 | 226 | 24.3 | 465x275x310 | 756 |
ECH(m)10-40-F | 530 | 194 | 183 | 138 | 160 | 187 | 236 | 230 | 26.1 | 575x275x310 | 686 |
ECH(m)10-50-F | 560 | 224 | 213 | 138 | 160 | 217 | 242 | 230 | 30.4 | 605x275x310 | 637 |

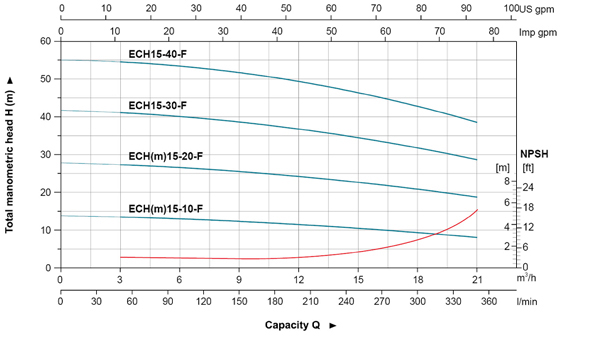

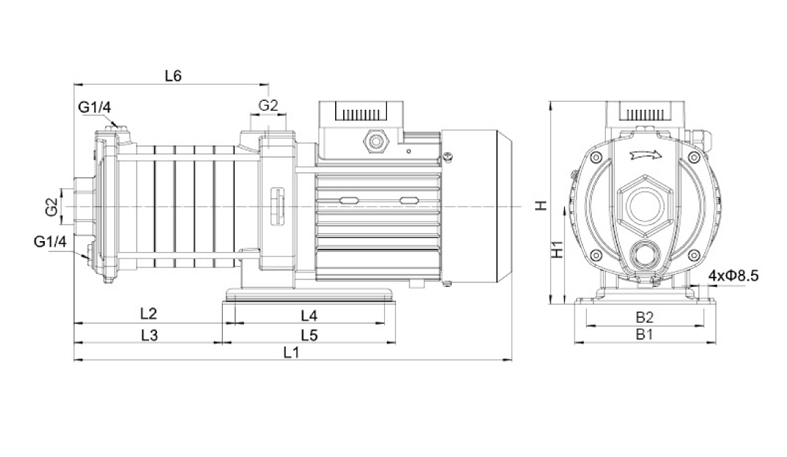

Model | Power | Q(m³/h) | 0 | 3 | 6 | 9 | 12 | 15 | 18 | 21 | |
kW | HP | Q(l/min) | 0 | 50 | 100 | 150 | 200 | 250 | 300 | 350 | |
ECH(m)15-10-F | 1.1 | 1.5 | H (m) | 13.9 | 13.5 | 13.1 | 12.4 | 11.6 | 10.6 | 9.4 | 8.2 |
ECH(m)15-20-F | 2.2 | 3.0 | 27.8 | 27.5 | 26.7 | 25.6 | 24.1 | 22.7 | 21.1 | 18.8 | |
ECH15-30-F | 3.0 | 4.0 | 42.1 | 40.9 | 39.8 | 38.7 | 36.9 | 34.9 | 31.9 | 28.5 | |
ECH15-40-F | 4.0 | 5.0 | 55.5 | 54.3 | 52.8 | 51.8 | 49.7 | 46.8 | 42.9 | 38.3 |
Model | L1 | L2 | L3 | L4 | L5 | L6 | H | H1 | GW (kg) | LxWxH (mm) | Quantity (PCS/20'TEU) | |
1~ | 3~ | |||||||||||
ECH(m)15-10-F | 419 | 142 | 131 | 138 | 160 | 142 | 232.5 | 226 | 110 | 23 | 465x275x310 | 756 |
ECH(m)15-20-F | 485 | 149 | 138 | 138 | 160 | 142 | 242 | 230 | 110 | 29.2 | 530x275x310 | 696 |
ECH15-30-F | 546 | 192 | 190 | 190 | 230 | 185 | - | 250 | 120 | 34.5 | 590x275x310 | 539 |
ECH15-40-F | 591 | 237 | 217 | 190 | 230 | 230 | - | 250 | 120 | 46.5 | 635x275x310 | 430 |

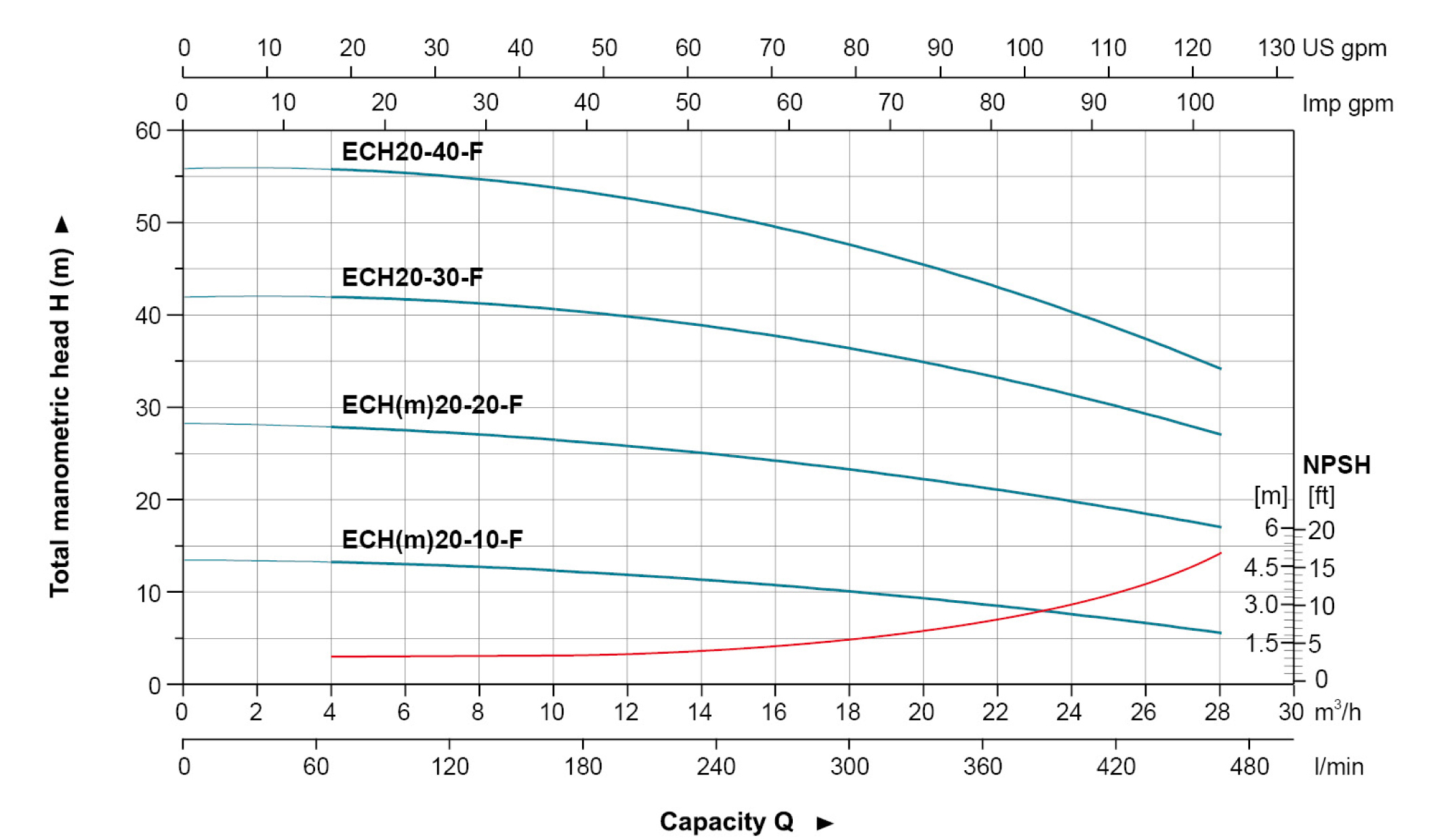

Model | Power | Q(m³/h) | 0 | 4 | 8 | 12 | 16 | 20 | 24 | 28 | |
kW | HP | Q(l/min) | 0 | 67 | 133 | 200 | 267 | 333 | 400 | 467 | |
ECH(m)20-10-F | 1.1 | 1.5 | H (m) | 13.6 | 13.3 | 12.8 | 12.1 | 10.8 | 9.5 | 7.8 | 5.7 |
ECH(m)20-20-F | 2.2 | 3.0 | 28.5 | 27.8 | 27.0 | 26.1 | 24.4 | 22.4 | 19.8 | 17.2 | |
ECH20-30-F | 4.0 | 5.0 | 42.5 | 41.6 | 40.9 | 39.9 | 38.0 | 35.5 | 31.4 | 26.9 | |
ECH20-40-F | 4.0 | 5.0 | 56.6 | 55.2 | 54.2 | 52.7 | 50.1 | 45.9 | 40.3 | 34.0 |

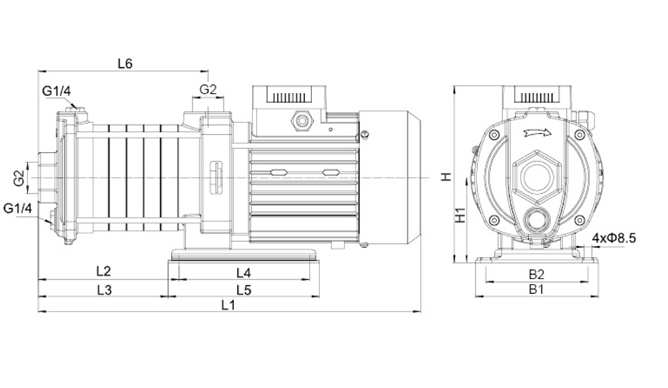

Model | L1 | L2 | L3 | L4 | L5 | L6 | H | H1 | GW (kg) | LxWxH (mm) | Quantity (PCS/20'TEU) | |
1~ | 3~ | |||||||||||
ECH(m)20-10-F | 419 | 142 | 131 | 138 | 160 | 142 | 232.5 | 226 | 110 | 23 | 465x275x310 | 756 |
ECH(m)20-20-F | 485 | 149 | 138 | 138 | 160 | 142 | 242 | 230 | 110 | 29.2 | 530x275x310 | 696 |
ECH20-30-F | 546 | 192 | 190 | 190 | 230 | 185 | - | 250 | 120 | 34.5 | 590x275x310 | 539 |
ECH20-40-F | 591 | 237 | 217 | 190 | 230 | 230 | - | 250 | 120 | 46.5 | 635x275x310 | 430 |

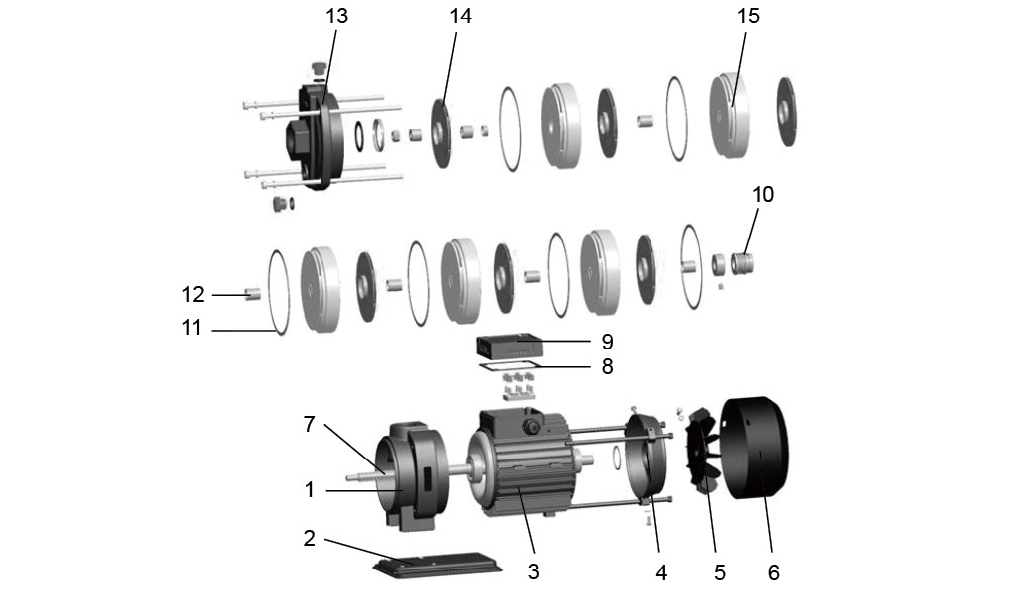

No | Part | Material |
1 | Support | Cast iron |
2 | Base | Q235 |
3 | Stator | ZL 102 |
4 | Rear | ZL 102 |
5 | Fan | PP-GF 15 |
6 | Fan cover | 08F |
7 | Rotor | |
8 | O-ring | NBR |
9 | Terminal Box | PP-GF 20 |
10 | Mechanical seal | Sic/Carbon |
11 | O-ring | NBR |
12 | Sleeve | AISI 304 |
13 | Pump body | HT 200 |
14 | Impeller | AISI 304 |
15 | Diffuser | AISI 304 |
