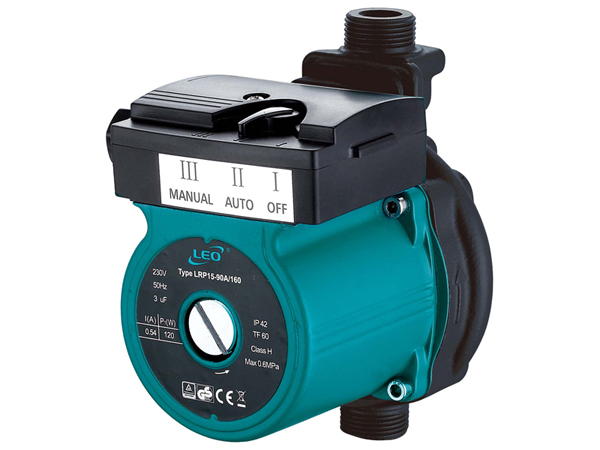

LRP15 Booster Pump

LRP15  Booster Pump

LRP Booster Pump Features
- Automatic pressure boosting
- Anti-rust cast iron pump body
- Noryl impeller with heat resistance up to 150℃
- 99% alumina ceramic shaft
- Liquid temperature: 2 - 60℃

LRP Booster Pump Motor Features
- Insulation class: H
- Protection class: IP 42
- 99% alumina ceramic bearing
- Copper winding

Technical Data of LRP Booster Pump
MODEL POWER POWER (W) Max. Flow (l/min) Max. Head (m) Inlet/Outlet (mm) Pipe Size (")
LRP15-90A/160 1~230 V/50 Hz 123 25 9 15 1

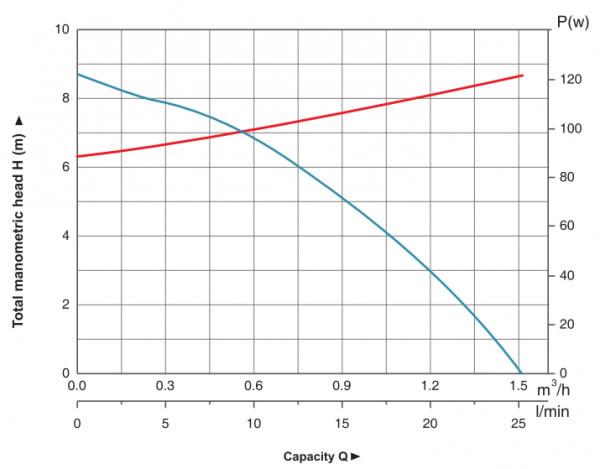

Hydraulic Performance Curves for LRP Booster Pump

LEO is a listed company in China (stock code 002131), LEO is a leading LRP Booster Pump manufacturer only offers high quality pumps. LEO has made millions of pumps now used in more than 140 countries, and is offering commercial water pumps, submersible pumps, recirculating pumps with custom solutions. LEO booster pumps can meet you any requires in commercial pumping systems.
