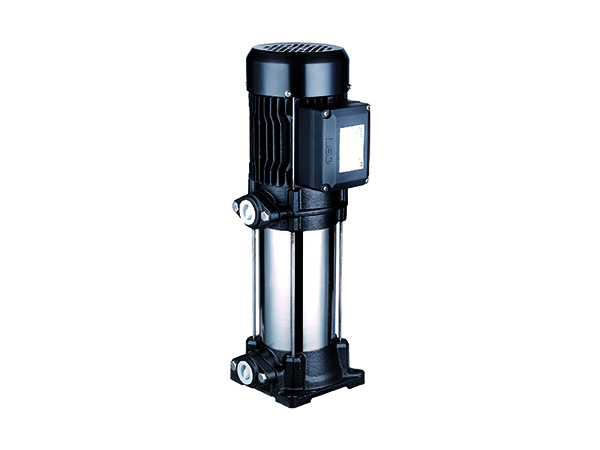

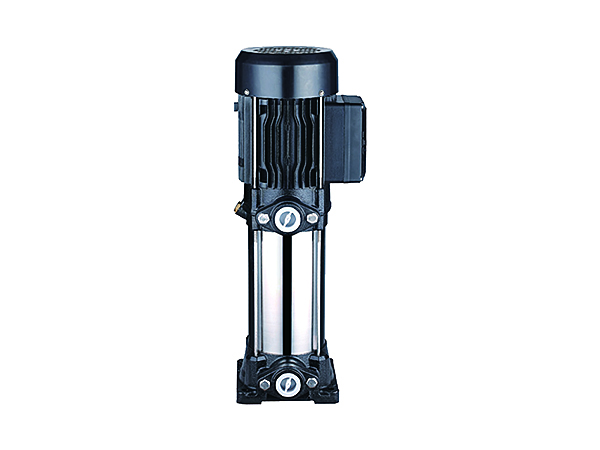

EVP Vertical Multistage Centrifugal Pump

Working Condition for EVP Vertical Multistage Centrifugal Pump
- Liquid temperature: +5 - 60℃
- Maximum ambient temperature: +40℃
- Maximum operation pressure: 15 bar
- Altitude: up to 1,000 m

EVP Vertical Multistage Centrifugal Pump Feature
- LEO's multistage vertical commercial pump is applicable for a wide scope of different temperatures, flow rates and pressure ranges
- Water inlet and outlet can be rotated for proper assembly in accordance with installation requirement
- Easy installation and maintenance
- Advanced hydraulic model design, featuring stable operation and high efficiency
- Cast iron water inlet and outlet with special anti-rust treatment
- High-strength engineering plastic flow passage components
- Reliable stainless steel welded shaft

Technical Data of EVP Vertical Multistage Centrifugal Pump
MODEL POWER Q (m3/h) 0 1 2 3 4
1~ 3~ kW HP Q (l/min) 0 16.7 33.3 50 66.7
EVPm2-2 EVP2-2 0.37 0.5 H (m) 24 23 18 13 6
EVPm2-3 EVP2-3 0.55 0.75 36 33 26 20 9
EVPm2-4 EVP2-4 0.75 1.0 48 45 35 26 11
EVPm2-5 EVP2-5 1.0 1.5 59 57 44 33 15
EVPm2-6 EVP2-6 1.0 1.5 69 65 52 37 18
EVPm2-7 EVP2-7 1.1 1.5 82 75 62 45 25
EVPm2-8 EVP2-8 1.5 2.0 94 87 72 52 28
EVPm2-9 EVP2-9 1.5 2.0 105 98 82 60 35
EVPm2-11 EVP2-11 1.8 2.5 130 119 98 69 37
- EVP2-13 2.2 3.0 153 142 115 80 39
MODEL POWER Q (m3/h) 0 1 2 3 4 5 6
1~ 3~ kW HP Q (l/min) 0 16.7 33.3 50 66.7 83.3 100
EVPm4-2 EVP4-2 0.55 0.75 H (m) 24 23 22 21 18 15 10
EVPm4-3 EVP4-3 0.75 1.0 37 36 34 33 29 24 16
EVPm4-4 EVP4-4 1.0 1.5 47 46 45 41 36 28 20
EVPm4-5 EVP4-5 1.5 2.0 61 58 57 55 48 39 29
EVPm4-6 EVP4-6 1.5 2.0 74 72 69 66 57 47 36
- EVP4-7 2.2 3.0 86 83 81 77 68 57 43
- EVP4-8 2.2 3.0 98 95 92 86 76 63 47
- EVP4-10 2.2 3.0 116 114 110 102 90 73 57
- EVP4-12 3.0 4.0 145 142 140 131 115 97 75
MODEL POWER Q (m3/h) 0 1 2 3 4 5 6 7 8 9 10
1~ 3~ kW HP Q (l/min) 0 16.7 33.3 50 66.7 83.3 100 116.7 133.3 150 166.7
EVPm6-3 EVP6-3 1.1 1.5 H (m) 30 29.5 29 28.5 28 27 26 24.5 23 21 19
EVPm6-4 EVP6-4 1.5 2.0 40 38.5 37.5 37.3 37 36 34 33.5 32 30 27
- EVP6-5 2.2 3.0 50 49 48.5 48.3 48 45 43 42 41 39 36
- EVP6-6 2.2 3.0 58 56 54 53.5 53 52 51 48 45 41 40
- EVP6-7 3.0 4.0 68 67 66.5 65 63.5 62 60 58 56 54 51
- EVP6-8 3.0 4.0 78 75 73 72 71 70 68 65 62 59 55
MODEL POWER Q (m3/h) 0 1 2 3 4.5 6 7.5 9 10.5
1~ 3~ kW HP Q (l/min) 0 16.7 33.3 50 75 100 125 150 175
EVPm6H-3 EVP6H-3 1.1 1.5 H (m) 39 38 37 35 33 29 24 18 10
EVPm6H-4 EVP6H-4 1.5 2.0 52 51 49 47 44 39 32 25 14
EVPm6H-5 EVP6H-5 1.8 2.5 64 62 60 58 54 47 38 28 16
- EVP6H-6 2.2 3.0 76 74 71 68 63 56 45 34 20
- EVP6H-8 3.0 4.0 103 100 97 95 90 80 66 50 31
- EVP6H-10 4.0 5.5 130 127 124 121 114 103 86 66 41
MODEL POWER Q (m3/h) 0 2 4 6 8 10 12 14 16
3~ kW HP Q (l/min) 0 33 67 100 133 167 200 233 267
EVP10H-3 3.0 4.0 H (m) 56 55 54 52 49 46 42 39 29
EVP10H-4 4.0 5.5 75 74 72 70 67 64 60 53 43
EVP10H-5 5.5 7.5 93 91 87 84 81 77 72 64 55
EVP10H-6 5.5 7.5 113 110 107 104 100 96 87 78 68
EVP10H-7 7.5 10 132 128 124 120 116 112 103 93 80
EVP10H-8 7.5 10 150 147 143 139 134 127 120 108 92
Material Table of EVP Vertical Multistage Centrifugal Pump
Part Material
1 Fan cover 08F
2 Fan cover PP
3 Rear cover Cast iron
4 Bearing
5 Stator
6 Rotor
7 Gasket Rubber
8 Flange Cast iron
9 Motor bracket Aluminum
10 Mechanical seal
11 Pump barrel AISI 304
12 Impeller Plastic
13 Diffuser Plastic
14 Last stage diffuser Plastic
15 Terminal box Plastic

LEO is a listed company in China (stock code 002131), LEO is a leading multistage stainless steel vertical pump manufacturer only offers high quality pumps. LEO has made millions of pumps now used in more than 140 countries, and is offering commercial water pumps, submersible pumps, centrifugal pumps, sewage pumps with custom solutions. LEO stainless steel water pumps can meet you any requires in commercial pumping systems.
