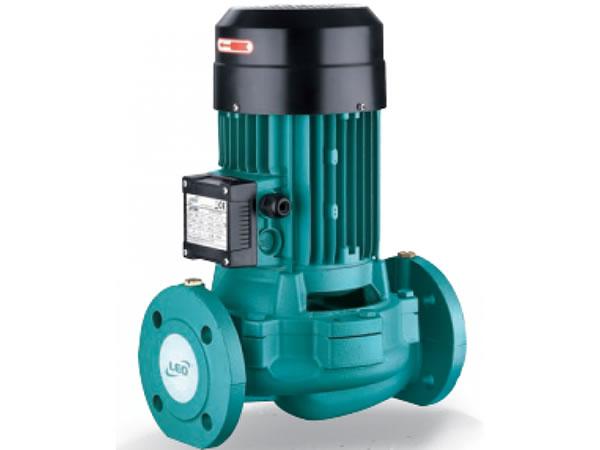

LP Booster Pump
LP Booster Pump Features
- Cast iron pump body and support under special anti-rust treatment
- AISI 304 shaft
- Liquid temperature: 2 - 100℃
LP Booster Pump Motor Features
- Insulation class: B
- Protection class: IP 44
| MODEL | POWER | Q (m3/h) | 0 | 6 | 9 | 12 | 15 | 18 | 21 | 24 | 30 | 32 | ||
| kW | HP | Q (l/min) | 0 | 100 | 150 | 200 | 250 | 300 | 350 | 400 | 500 | 533 | ||
| LP1500 | 1.5 | 2 | H (m) | 26 | 25 | 24 | 23 | 21 | 19 | 17 | 13 | 5 | 0 | |
| LP2200 | 2.2 | 3 | 34 | 33 | 32 | 30 | 28 | 26 | 23 | 20 | 12 | 8 | ||

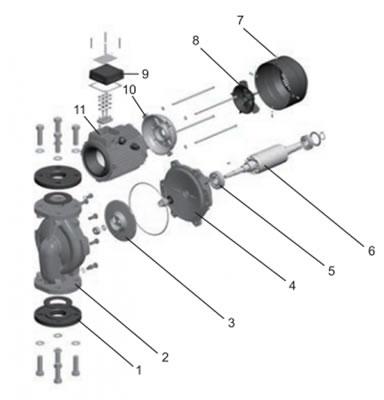

| No. | Part | Material |
| 1 | Flange | HT200 |
| 2 | Pump body | HT200 |
| 3 | Impeller | Brass |
| 4 | Support | HT200 |
| 5 | Bearing | |
| 6 | Rotor | |
| 7 | Fan cover | 08F |
| 8 | Fan | PP |
| 9 | Terminal box | ABS |
| 10 | Rea cover | ZL102 |
| 11 | Stator |
