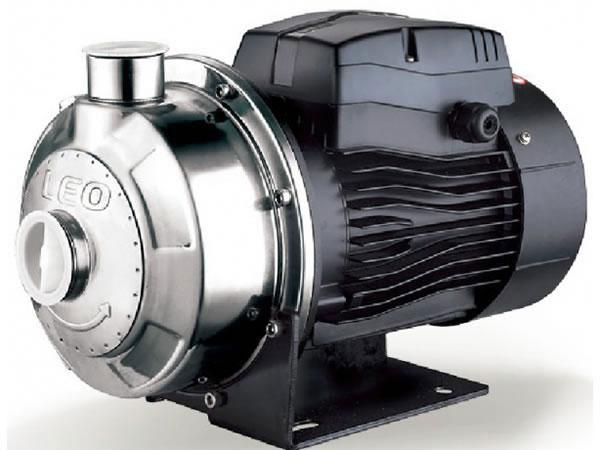

AMS Stainless Steel Centrifugal Pump

AMS Stainless Steel Centrifugal Pump

Application
The AMS70-120 stainless steel centrifugal pump is applicable to household water supply, equipment support, pipeline pressurization, garden watering, vegetable greenhouse watering, fish farming and poultry raising, industrial and mining, water supply and drainage in high-rise buildings, central air conditioners and centralized heating circulation systems.

Pump Features
- AISI 304 pump body
- AISI 304 shaft
- Max. liquid temperature: +85℃
- Altitude: up to 1000m

Motor Features
- Motor with cooper winding
- Built-in thermal protector for single phase motor
- Insulation class: F
- Protection class: IPX4
- Max. ambient temperature: +40℃

Technical Data of AMS70-120 Stainless Steel Centrifugal Pump
MODEL POWER Q(l/min) 0 30 40 60 80 100 120 140 160 180
Single Phase Three Phase KW HP Q(m³/h) 0 1.8 2.4 3.6 4.8 6 7.2 8.4 9.6 10.8
AMSm70/0.37 AMSm70/0.37 0.37 0.5 H(m) 20.9 19 18.1 15.7 12.1 ˗ ˗ ˗ ˗ ˗
AMSm70/0.55 AMSm70/0.55 0.55 0.75 29.5 27.3 26.3 23.4 19.1 ˗ ˗ ˗ ˗ ˗
AMSm70/0.75 AMSm70/0.75 0.75 1 30.4 28.5 27.8 26 23 ˗ ˗ ˗ ˗ ˗
AMSm120/0.55 AMSm120/0.55 0.55 0.75 20.2 ˗ ˗ 17.9 16.6 15.1 13.3 11.2 8.7 ˗
AMSm120/1.1 AMSm120/1.1 1.1 1.5 30.2 ˗ ˗ 26.7 25.1 23.3 21.2 19 16.4 ˗

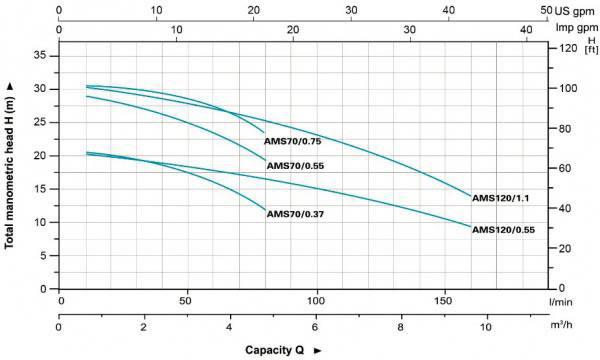

AMS70-120 Stainless Steel Centrifugal Pump Hydraulic Performance Curves
AMS70-120 Stainless Steel Centrifugal Pump Hydraulic Performance Curves
Technical Data of AMS210-370 Stainless Steel Centrifugal Pump
POWER Q(l/min) 0 30 60 100 120 140 160 180 200 250 300 350 400 430 480 520
KW HP Q(m³/h) 0 1.8 3.6 6 7.2 8.4 9.6 10.8 12 15 18 21 24 26 29 31
0.75 1 H(m) 16.8 ˗ ˗ ˗ 15.6 15.2 14.8 14.2 13.6 11.9 9.8 ˗ ˗ ˗ ˗ ˗
1.1 1.5 19.7 ˗ ˗ ˗ 18.7 18.3 18 17.5 17.1 15.6 13.6 ˗ ˗ ˗ ˗ ˗
1.5 2 24.2 ˗ ˗ ˗ 23.5 23.2 22.8 22.4 21.8 20.2 18 ˗ ˗ ˗ ˗ ˗
2.2 3 27.5 ˗ ˗ ˗ 26.7 26.5 26.1 25.7 25.2 23.8 21.9 ˗ ˗ ˗ ˗ ˗
1.1 1.5 15.4 ˗ ˗ ˗ ˗ ˗ ˗ 14.7 14.4 13.5 12.3 10.8 8.9 7.6 ˗ ˗
1.5 2 19.3 ˗ ˗ ˗ ˗ ˗ ˗ ˗ 18.1 17.3 16.3 15 13.3 12.3 10.2 ˗
2.2 3 23.1 ˗ ˗ ˗ ˗ ˗ ˗ ˗ 21.7 20.9 20 18.8 17.2 16.2 14.2 12.3

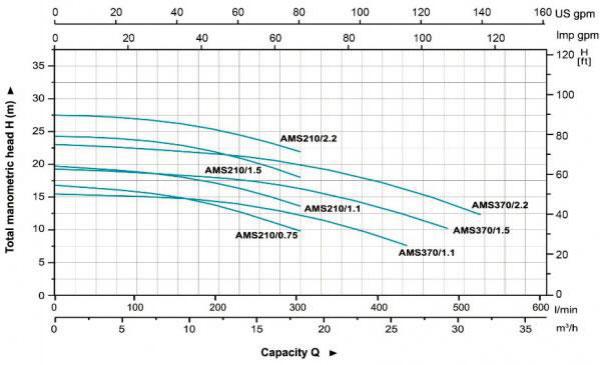

AMS210-370 Stainless Steel Centrifugal Pump Hydraulic Performance Curves
AMS210-370 Stainless Steel Centrifugal Pump Hydraulic Performance Curves

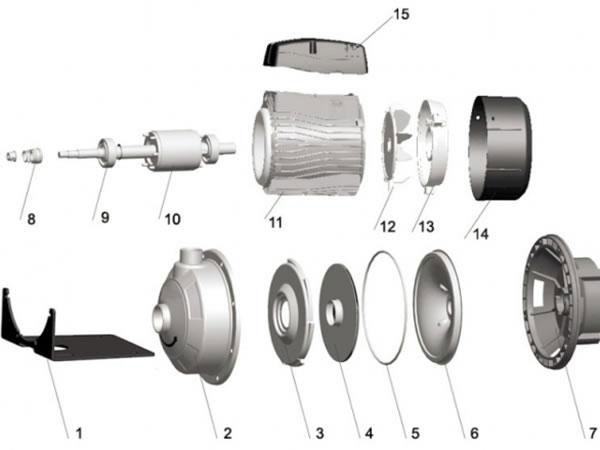

Material Table
Material Table
No. Part Material
1 Bottom Support Steel
2 Pump Body AISI 304
3 Diffuser AISI 304
4 Impeller AISI 304
5 O-ring NBR
6 Airproof Plate AISI 304
7 Support ZL 102
8 Mechanical Seal Silicon Carbide/Carbon
9 Ball Bearing
10 Rotor
11 Stator
12 Fan PP
13 Rear Housing ZL 102
14 Fan Cover PP
15 Terminal Box ABS

The AMS stainless steel centrifugal pump is applicable to household water supply, pipeline pressurization, garden watering, vegetable greenhouse watering, fish farming and poultry raising, water supply and drainage in high-rise buildings, central air conditioners and centralized heating circulation systems.
