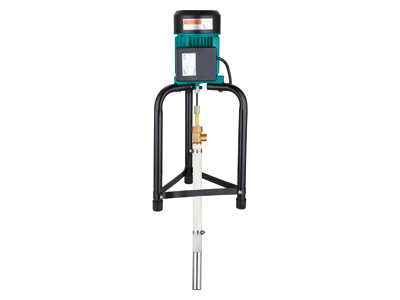

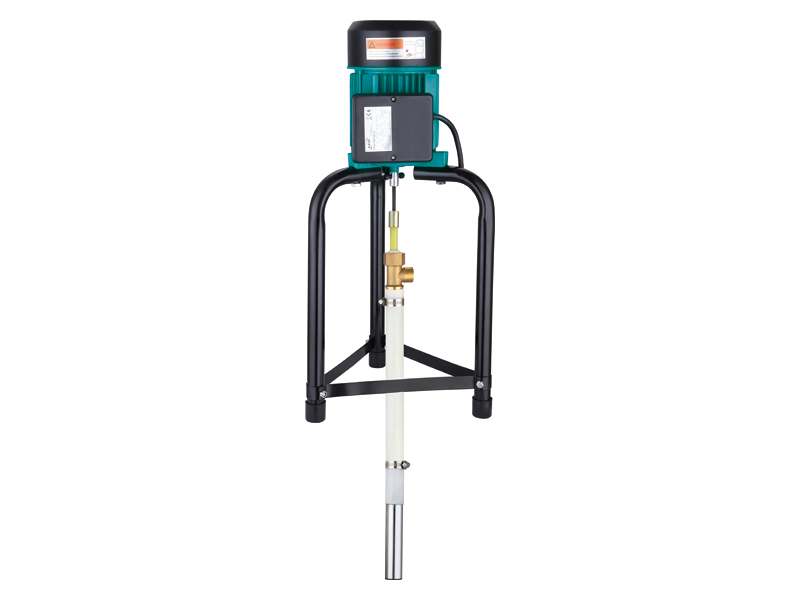

FSP Series Submersible Pump

FSP Series Submersible Pump

Application
The flexible shaft pump is designed for household water pumping as well as small agricultural irrigation.

Flexible Shaft Pump Features
- The pump body is located at the bottom of the pump. The pump suction is equal to the length of the pipe. It is ideal for replacing other surface pumps which cannot pump water once result in it falls below a certain level.
- Max diameter of the pump is 42mm. The water pump can be used in wells whose diameter is more than 50mm.
- This pump is provided with excellent anti freezing functions. When the pump is powered off, there is no water inside the pump body and the pipe, so the pump body or pipe shall be free of any cracks when used in cold weather.
- Apply to water solid content (Quality estimation): ≤1%。
- Water PH: 6.5-8.5
- Chlorine ion content in water: ≤ 400mg/L
- Max. ambient Temperature: +40°C

Configuration
- Copper wire motor with protector
- High quality stator
- IP54

Technical Data of Flexible Shaft Pump
Model Power Q(m³/h) 0.3 0.7 0.95 1.3 1.5
kW HP Hz Q(l/min) 5 11.6 15.8 21.6 25
FSP750-25 0.75 1 50/60 H(m) 81.3 50.1 31.2 10 5

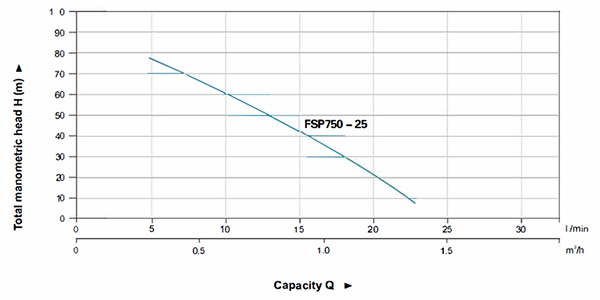

Flexible Shaft Pump Hydraulic Performance Curves

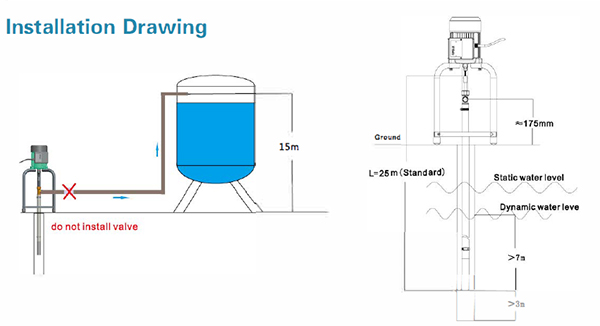

Mounting Dimension

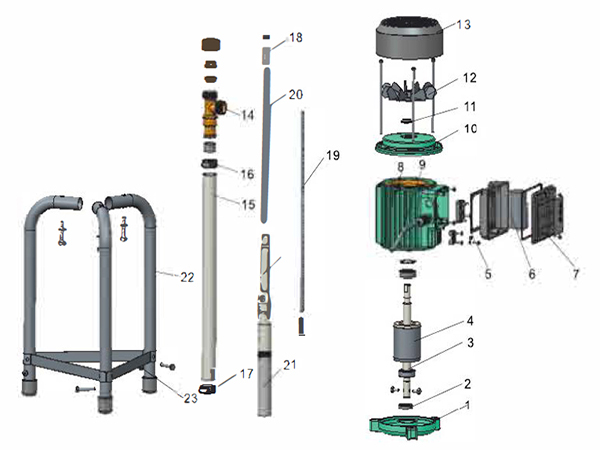

Materials Table of Flexible Shaft Pump
No Part Material 12 Fan PP
1 Front end cover HT200 13 Fan cover Q235
2 Oil seal NBR 14 Tee Brass
3 Bearing GCr15 15 External pipe PP
4 Rotor 16 Hose clamp 304
5 Cover box ABS 17 Hose clamp 304
6 Capacitor 18 Bearing sheath Q235
7 Cover lid ABS 19 Component of soft shaft
8 Stator 20 Internal pipe PP
9 Outgoing line 21 Component of pump head
10 Rear end cover HT200 22 Support Q235
11 VD type sealing ring 23 Rail Q235

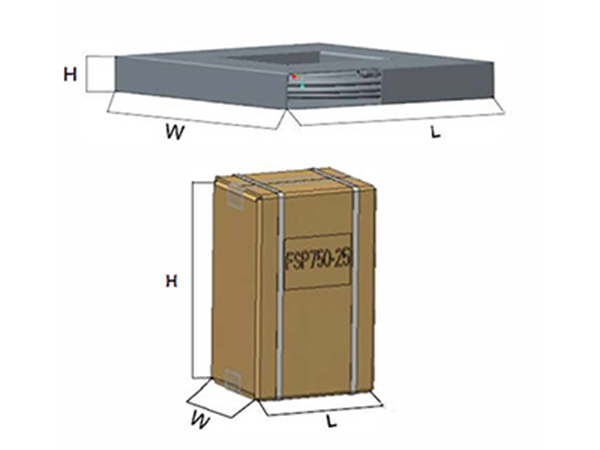

Package Information
Model Packaging No GW(kg) H(mm) W(mm) L(mm)
FSP750-40 FSP 1 21.5 230 1115 1120
Motor & Parts 1 8.5 405 200 250
FSP750-35 FSP 1 17.5 115 1115 1120
Motor & Parts 1 8.5 405 200 250
FSP750-30 FSP 1 14.5 115 1115 1120
Motor & Parts 1 8.5 405 200 250
FSP750-25 FSP 1 12 115 1115 1120
Motor & Parts 1 8.5 405 200 250
FSP750-20 FSP 1 10 115 1115 1120
Motor & Parts 1 8.5 405 200 250
FSP750-15 FSP 1 8.5 115 1115 1120
Motor & Parts 1 8.5 405 200 250
