Application

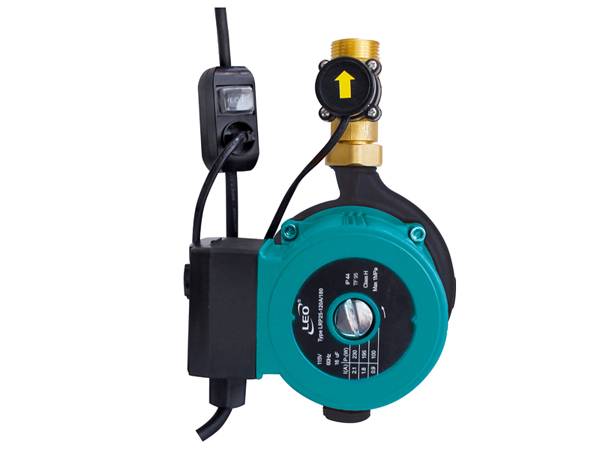

LRP25 booster pump is designed for pressure boosting in cold and hot water systems. This pump can be widely used in heating ventilating and air conditioning (HVAC) circulation, water circulation for central and district heating systems, domestic hot water circulation, cold and hot water circulation for industrial auxiliary equipment, solar water heater circulation system, etc.
LRP Booster Pump Features
- External flow switch
- Automatic pressure boosting
- Anti-rust cast iron pump body
- Noryl impeller with heat resistance up to 150℃
- 99% alumina ceramic shaft
- Liquid temperature: 2 - 95 ℃
LRP Booster Pump Motor Features
- Insulation class: H
- Protection class: IP 44
- 99% alumina ceramic bearing
- Copper winding
Model | Voltage/Frequency | Input Power (W) | Max. Flow (m) |
Max. Head (m) |
Inlet/Outlet (mm) |
Pipe Size (inch) |
N.W (kgs) |
G.W (kgs) |
Packing Size (mm) |
||
3 | 2 | 1 | |||||||||
LRP25-120A/180 |
220-240V/50Hz | 270 | 200 | 160 | 58.3/45/25 | 12/11/3.5 | ∅ 25 | 1.5 | 4.62 | 4.96 | 192x170x190 |
Model | Voltage/Frequency | Input Power (W) | Max. Flow (m) |
Max. Head (m) |
Inlet/Outlet (mm) |
Pipe Size (inch) |
N.W (kgs) |
G.W (kgs) |
Packing Size (mm) |
||
3 | 2 | 1 | |||||||||
LRP15-40A/130 |
220-240V/50Hz | 74 | 54 | 34 | 38.3/30/21.7 | 4.2/3.6/2.4 | ∅ 15 | 1 | 2.32 | 2.45 | 198x143x160 |
Model | Voltage/Frequency | Input Power (W) | Max. Flow (m) |
Max. Head (m) |
Inlet/Outlet (mm) |
Pipe Size (inch) |
N.W (kgs) |
G.W (kgs) |
Packing Size (mm) |
||
3 | 2 | 1 | |||||||||
LRP15-50A/130 |
220-240V/50Hz | 85 | 60 | 40 | 38.3/30/21.7 | 4.5/4/2.6 | ∅ 15 | 1 | 2.32 | 2.45 | 198x143x160 |
Model | Voltage/Frequency | Input Power (W) | Max. Flow (m) |
Max. Head (m) |
Inlet/Outlet (mm) |
Pipe Size (inch) |
N.W (kgs) |
G.W (kgs) |
Packing Size (mm) |
||
3 | 2 | 1 | |||||||||
LRP15-60A/130 |
220-240V/50Hz | 96 | 69 | 45 | 38.3/28.3/21.7 | 5.5/4.7/3 | ∅ 15 | 1 | 2.32 | 2.45 | 198x143x160 |

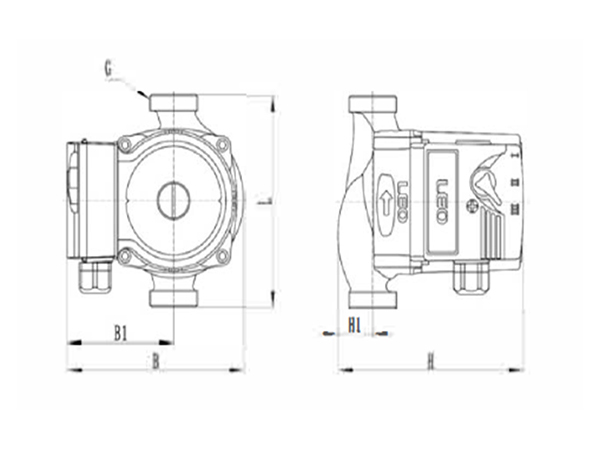

Model | L (mm) |
B (mm) |
B1 (mm) |
H (mm) |
H1 (mm) |
G |
LRP15-40A/130 | 130 | 125 | 75 | 130 | 25 | G1 |
LRP15-50A/130 | 130 | 125 | 75 | 130 | 25 | G1 |
LRP15-60A/130 | 130 | 125 | 75 | 130 | 25 | G1 |
LRP25-120A/180 | 180 | 148 | 75 | 155 | 25 | G1.5 |

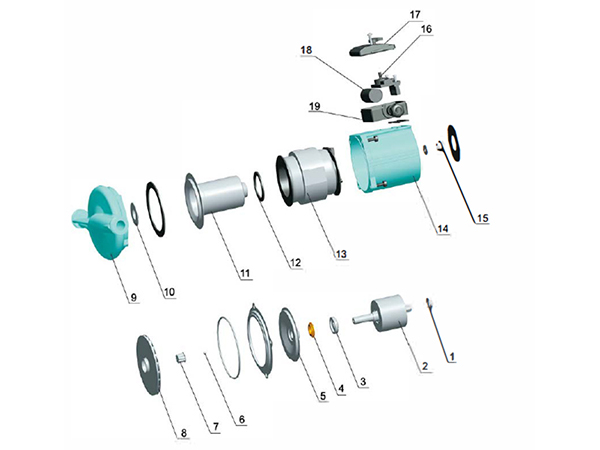

No. | Part | Material |
1 | Back bearing adjusting mat | PPO-GF30 |
2 | Rotor | |
3 | Thrust ring support | EPDM |
4 | Bushings | Graphite |
5 | Pump support cover | |
6 | Check ball | Silicone rubber |
7 | Locking | Stainless steel |
8 | Impeller | |
9 | Pump body | Cast iron |
10 | Pump body insert | Stainless steel |
11 | Seal housing | |
12 | Housing seal | Silicon rubber |
13 | Stator sleeve | |
14 | Motor housing | ADC 12 |
15 | Drain plug | DZR |
16 | Speed regulation board | |
17 | Terminal box cover | ABS |
18 | Capacitor | |
19 | Terminal box | PA6-GF20 |
LEO is a listed company in China (stock code 002131), LEO is a leading LRP Booster Pump manufacturer only offers high quality pumps. LEO has made millions of pumps now used in more than 140 countries, and is offering commercial water pumps, submersible pumps, recirculating pumps with custom solutions. LEO booster pumps can meet you any requires in commercial pumping systems.
