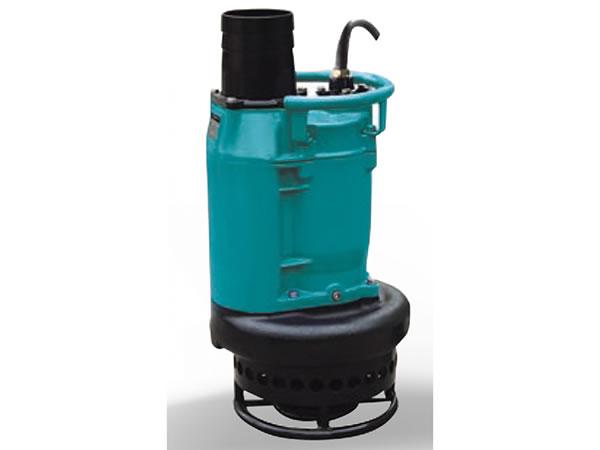

KBS Submersible Slurry Pump

 KBS Submersible Slurry Pump

KBS Submersible Slurry Pump Application
- Civil engineering.
- Mines, quarries, Coal ore & slurries.
- Sewage treatment plants.
- General pump purposes.

KBS Submersible Slurry Pump Features
- Max. liquid temperature: +40℃.
- Flow: up to 60 m³/h.
- Head: up to 57m.
- Power: 1.5KW (2HP) to 15kw(20HP).
- Max. Immersion depth: 25 m.
- Optional cable length.

KBS Submersible Slurry Pump Motor Features
- Copper winding.
- Insulation class: B.
- Protection class: IP68.

Technical Data of KBS Submersible Slurry Pump
Model Outlet Power Max head Max flow Impeller passage
mm KW HP m m³ /h m³ /min mm
80KBS44 80 4 5.5 14.8 99 1.65 30
100KBS46 100 6 8 16.9 150 2.5 30
150KBS49 150 9 12 21.5 168 2.8 30

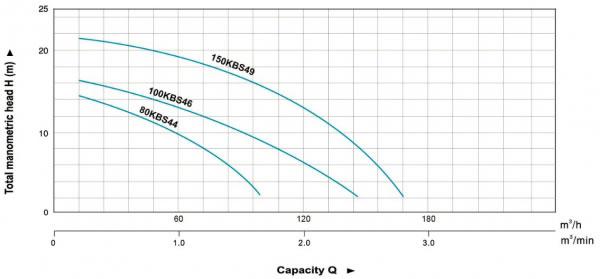

Hydraulic Performance Curves for KBS Submersible Slurry Pump

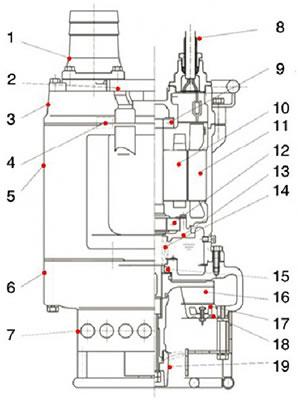

Material Table of KBS Submersible Slurry Pump
No. Part Material No. Part Material
1 Hose Coupling Cast Iron 11 Stator
2 Handle Steel 12 Bearing
3 Upper Cover Cast Iron 13 Bearing House Cast Iron
4 Motor Protector
14 Mechanical Seal Sic-Sic/Sic-Sic
5 Moto Body Cast Iron 15 Oil Seal
6 Pump Body Cast Iron 16 Impeller High Chrome alloy
7 Strainer Steel 17 Inlet Plate High Chrome alloy
8 Cable
18 Inlet Base Cast Iron
9 Bearing
19 Agitator High Chrome alloy
10 Rotor



LEO is a listed company in China (stock code 002131), LEO is a leading KBS Submersible Slurry Pump manufacturer only offers high quality pumps. LEO has made millions of pumps now used in more than 140 countries, and is offering commercial KBS Submersible Slurry Pumps, three phase pumps, centrifugal pumps with custom solutions. LEO KBS Submersible Slurry Pumps can meet you any requires in commercial pumping and domestic pumping systems.
