Application
EDH-F series stainless steel horizontal multistage pump is applicable to household water supply, equipment support, pipeline pressurization, garden watering, vegetable greenhouse watering, fish farming and poultry raising, industrial and mining, water supply and drainage in high-rise building, central air conditioner and centralized heating circulation system, etc.

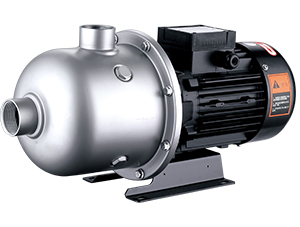

EDH-F Stainless Steel Horizontal Multistage Pump Features
- AISI 304 shaft.
- Max. liquid temperature: +60℃
- Altitude: up to 1000m
- Max. suction: 8m
- Max. inlet pressure: limited by max. operating pressure
- Max. operation pressure: 10 bar
- Liquid PH value: 6.5-8.5
EDH-F Stainless Steel Horizontal Multistage Pump Motor Features
- IE2 motor
- Motor with copper winding
- Built-in thermal protector for single phase motor
- Insulation class: F
- Protection class: IPX4
- Max. ambient temperature: +40℃

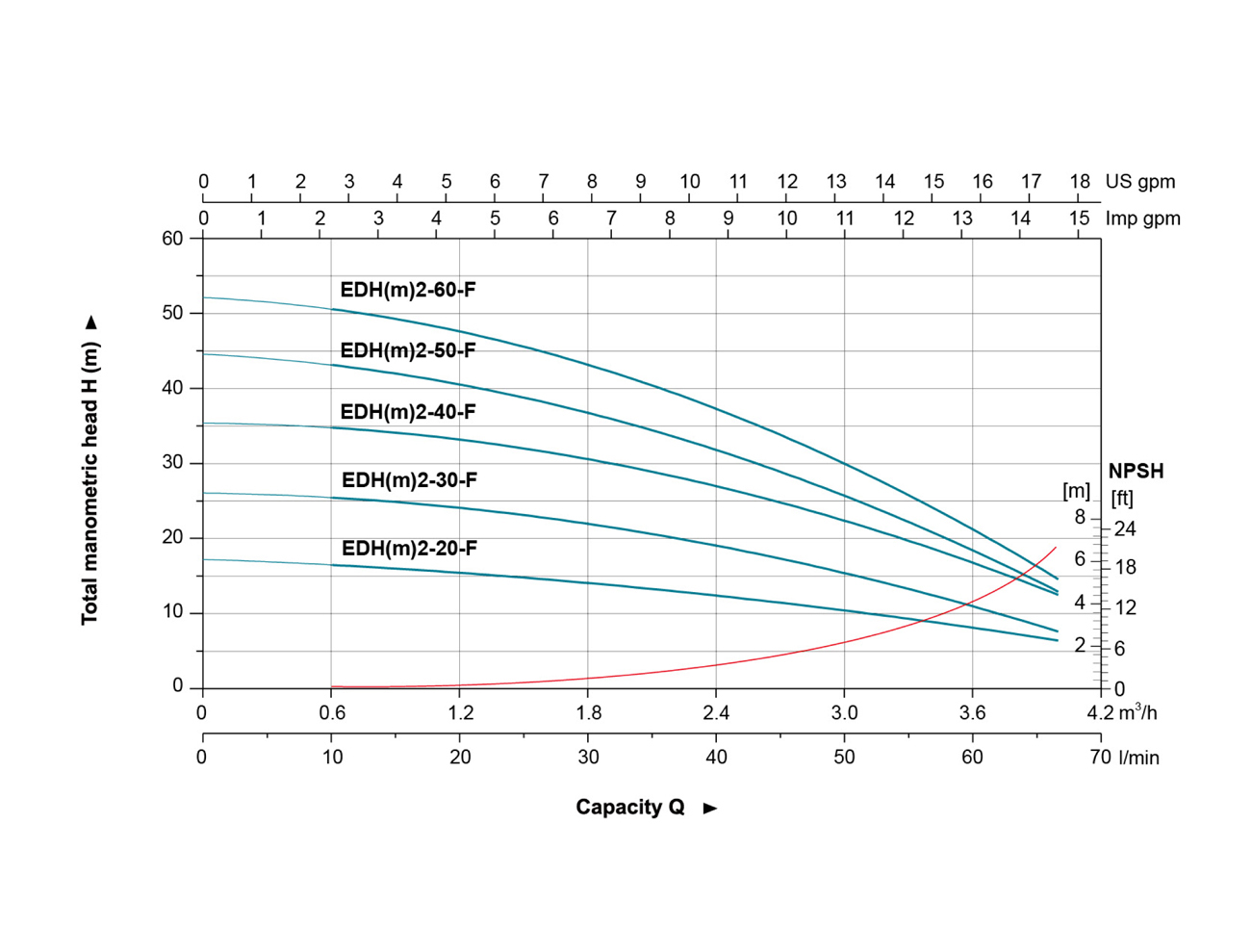

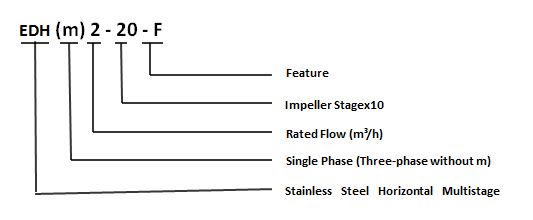

Model | Power | Q(m³/h) | 0.5 | 1 | 1.5 | 2 | 2.5 | 3 | 3.5 | 4 | |
kW | HP | Q(l/min) | 8.3 | 16.7 | 25 | 33.3 | 41.7 | 50 | 58.3 | 66.7 | |
EDH(m)2-20-F | 0.37 | 0.5 | H (m) | 16.7 | 16.2 | 15 | 14 | 12 | 10.6 | 8.8 | 6.5 |
EDH(m)2-30-F | 0.37 | 0.5 | 25.7 | 24.3 | 23.8 | 21.3 | 19 | 16.1 | 12.5 | 7.2 | |
EDH(m)2-40-F | 0.55 | 0.75 | 34.9 | 34.1 | 33.2 | 30.7 | 23 | 22.9 | 18.4 | 12.6 | |
EDH(m)2-50-F | 0.55 | 0.75 | 43.5 | 42.1 | 39.5 | 35.9 | 29 | 25.7 | 19.6 | 13.5 | |
EDH(m)2-60-F | 0.75 | 1.0 | 50.8 | 49.2 | 45.6 | 41.5 | 35 | 30.4 | 23.4 | 14.3 |

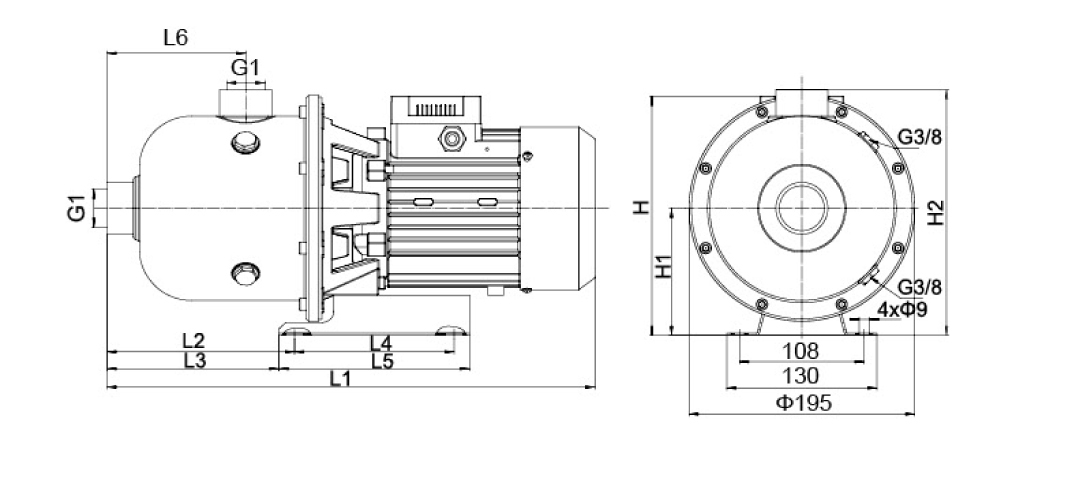

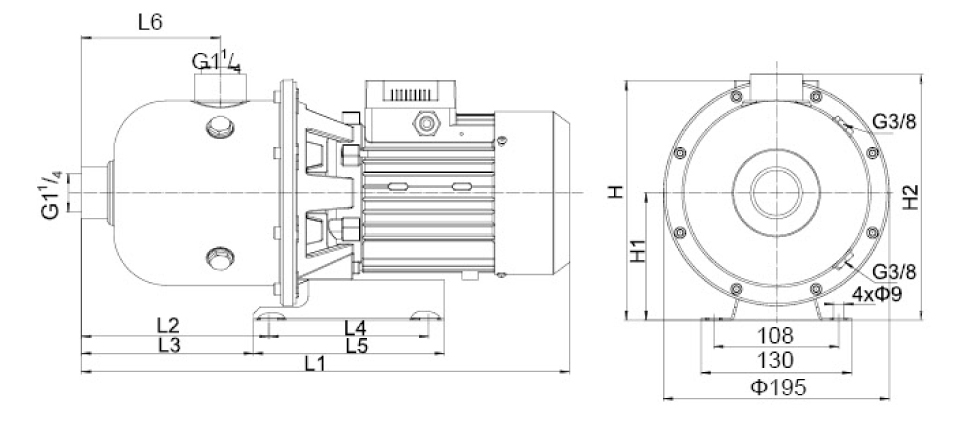

Model | L1 | L2 | L3 | L4 | L5 | L6 | H | H1 | H2 | GW (kg) | LxWxH (mm) | Quantity (PCS/20'TEU) | |
1~ | 3~ | ||||||||||||
EDH(m)2-20-F | 426 | 162 | 148.5 | 138 | 165 | 120 | 197.5 | 187 | 110 | 213 | 10.7 | 460x225x275 | 1044 |
EDH(m)2-30-F | 426 | 162 | 148.5 | 138 | 165 | 120 | 197.5 | 187 | 110 | 213 | 11.1 | 460x225x275 | 1044 |
EDH(m)2-40-F | 426 | 162 | 148.5 | 138 | 165 | 120 | 197.5 | 187 | 110 | 213 | 12.4 | 460x225x275 | 1044 |
EDH(m)2-50-F | 426 | 162 | 148.5 | 138 | 165 | 120 | 197.5 | 187 | 110 | 213 | 12.8 | 460x225x275 | 1044 |
EDH(m)2-60-F | 426 | 162 | 148.5 | 138 | 165 | 120 | 197.5 | 187 | 110 | 213 | 13.8 | 460x225x275 | 1044 |

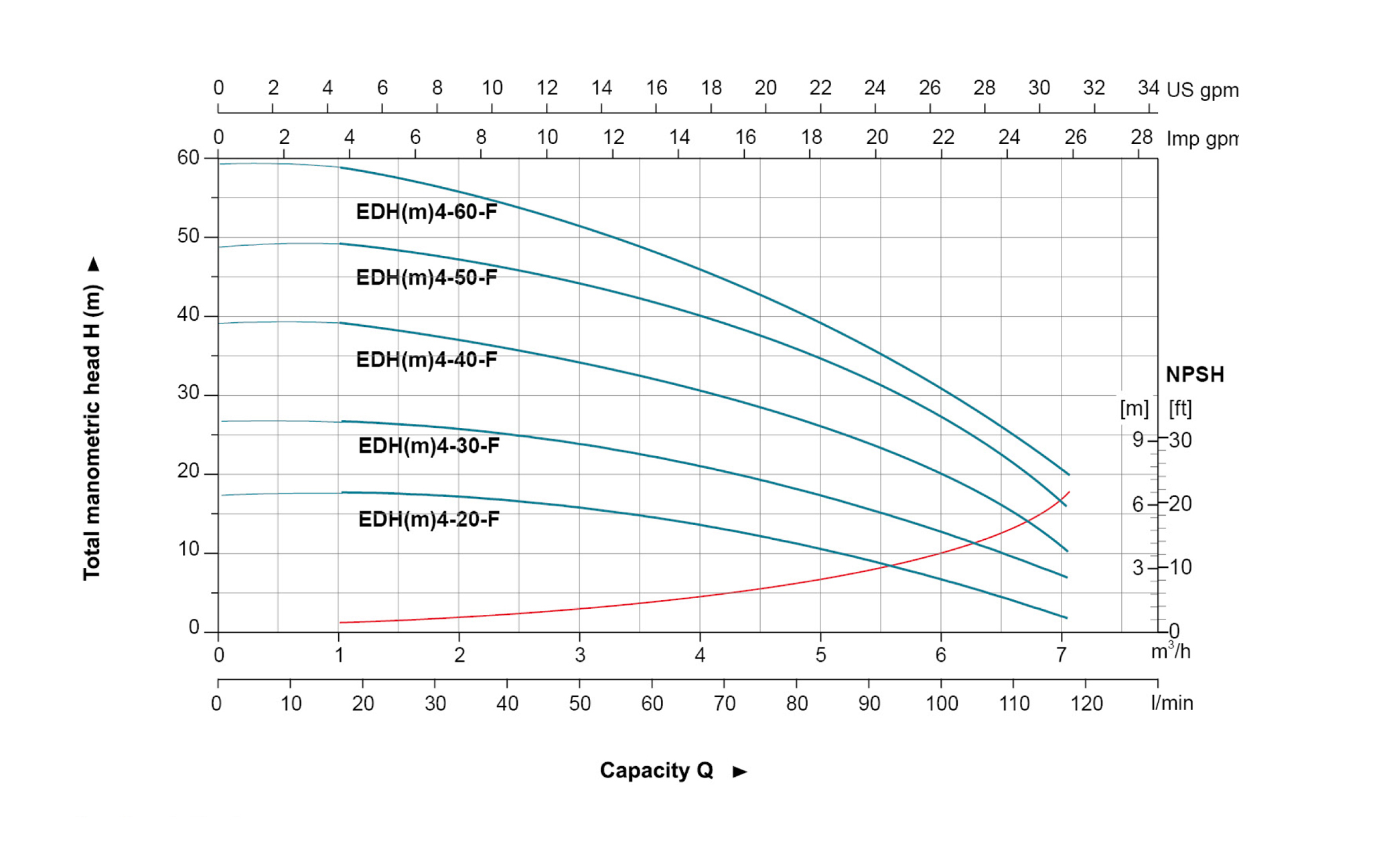

Model | Power | Q(m³/h) | 1 | 2 | 3 | 4 | 4.5 | 5 | 6 | 7 | |
kW | HP | Q(l/min) | 17 | 33 | 50 | 67 | 75 | 83 | 100 | 117 | |
EDH(m)4-20-F | 0.55 | 0.75 | H (m) | 17.8 | 17.2 | 16.1 | 14.3 | 12 | 11.3 | 6.3 | 2.3 |
EDH(m)4-30-F | 0.55 | 0.75 | 26.7 | 26.4 | 24.6 | 22.1 | 18 | 16.8 | 13.5 | 7.3 | |
EDH(m)4-40-F | 0.75 | 1.0 | 39 | 37 | 34 | 31.5 | 29 | 27 | 20 | 11 | |
EDH(m)4-50-F | 1.1 | 1.5 | 49 | 47 | 44 | 41 | 27 | 35 | 27 | 17 | |
EDH(m)4-60-F | 1.1 | 1.5 | 59 | 55 | 52 | 47 | 43 | 39 | 29 | 20 |

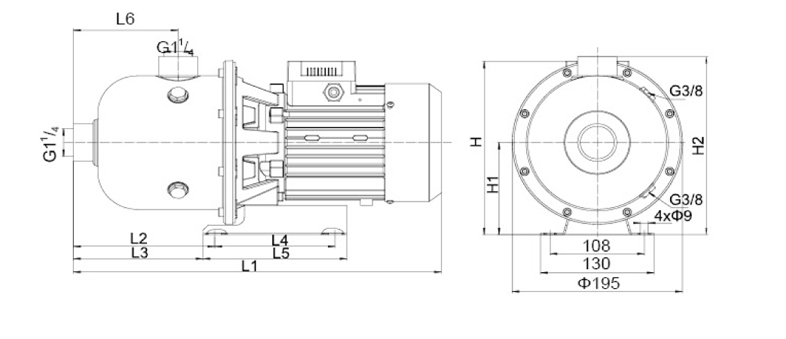

Model | L1 | L2 | L3 | L4 | L5 | L6 | H | H1 | H2 | GW (kg) | LxWxH (mm) | Quantity (PCS/20'TEU) | |
1~ | 3~ | ||||||||||||
EDH(m)4-20-F | 429 | 165 | 151.5 | 138 | 165 | 123 | 197.5 | 187 | 110 | 215..5 | 11.5 | 460x225x275 | 1044 |
EDH(m)4-30-F | 429 | 165 | 151.5 | 138 | 165 | 123 | 197.5 | 187 | 110 | 215.5 | 12.9 | 460x225x275 | 1044 |
EDH(m)4-40-F | 429 | 165 | 151.5 | 138 | 165 | 123 | 197.5 | 187 | 110 | 215.5 | 13.8 | 460x225x275 | 1044 |
EDH(m)4-50-F | 429 | 165 | 151.5 | 138 | 165 | 123 | 197.5 | 187 | 110 | 215.5 | 18.2 | 460x225x275 | 1044 |
EDH(m)4-60-F | 429 | 165 | 151.5 | 138 | 165 | 123 | 197.5 | 187 | 110 | 215.5 | 18.6 | 460x225x275 | 1044 |

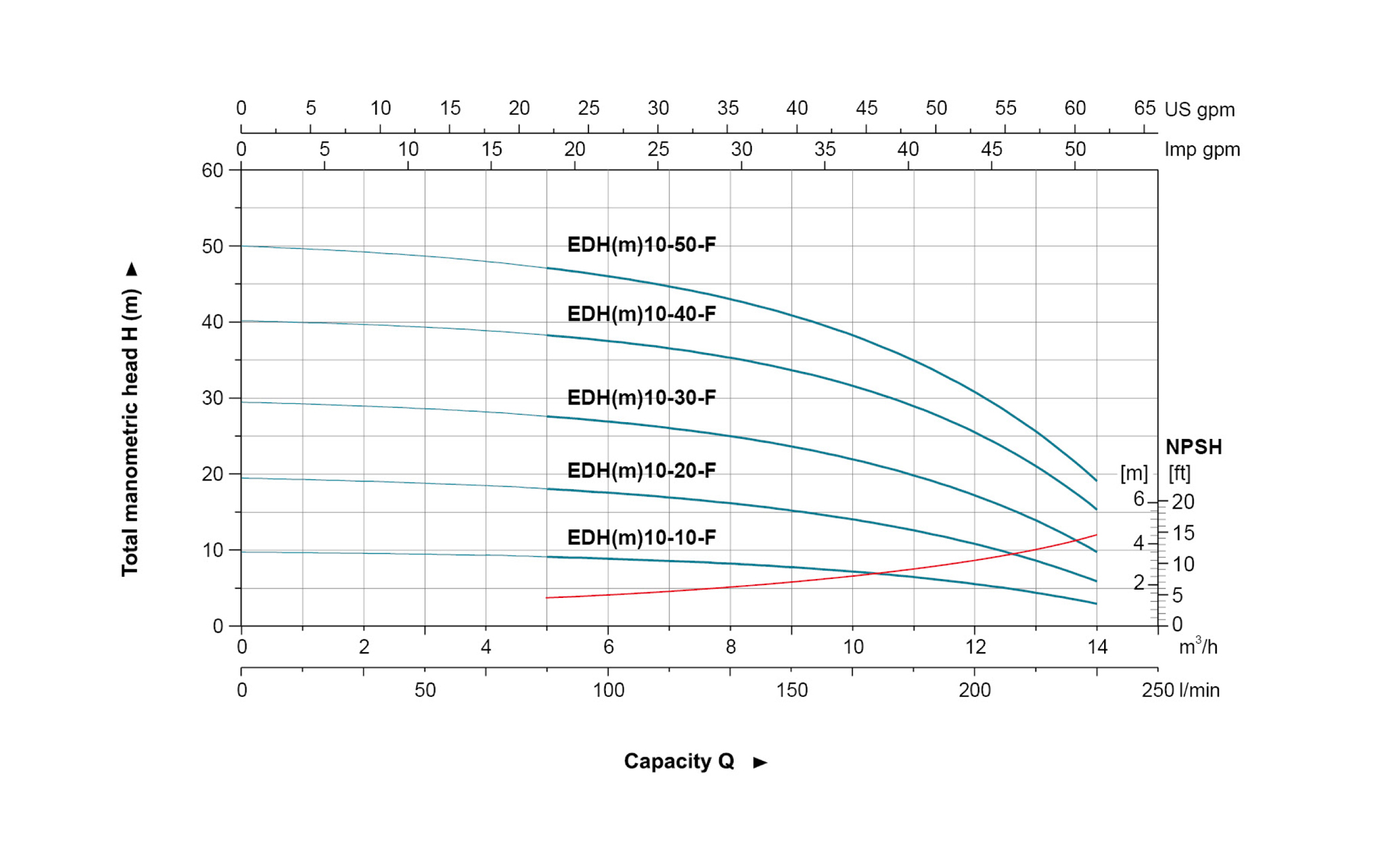

Model | Power | Q(m³/h) | 5 | 7 | 8 | 9 | 10 | 11 | 12 | 13 | 14 | |
kW | HP | Q(l/min) | 83 | 117 | 133 | 150 | 167 | 183 | 200 | 217 | 233 | |
EDH(m)10-10-F | 0.75 | 1.0 | H (m) | 9.1 | 8.7 | 8.3 | 7.8 | 7 | 6.4 | 5.4 | 4.4 | 3.1 |
EDH(m)10-20-F | 0.75 | 1.0 | 17.9 | 17.1 | 16.3 | 15.3 | 13.5 | 12.4 | 10.7 | 8.4 | 6.2 | |
EDH(m)10-30-F | 1.1 | 1.5 | 27.5 | 26.5 | 25.2 | 23.6 | 21.5 | 19.3 | 17 | 14 | 10 | |
EDH(m)10-40-F | 1.5 | 2.0 | 38.7 | 37.2 | 35.9 | 33.9 | 31.5 | 28.7 | 24.9 | 19.7 | 15.9 | |
EDH(m)10-50-F | 2.2 | 3.0 | 47.2 | 45.4 | 43.6 | 41 | 38 | 34.2 | 30 | 24.5 | 18 |

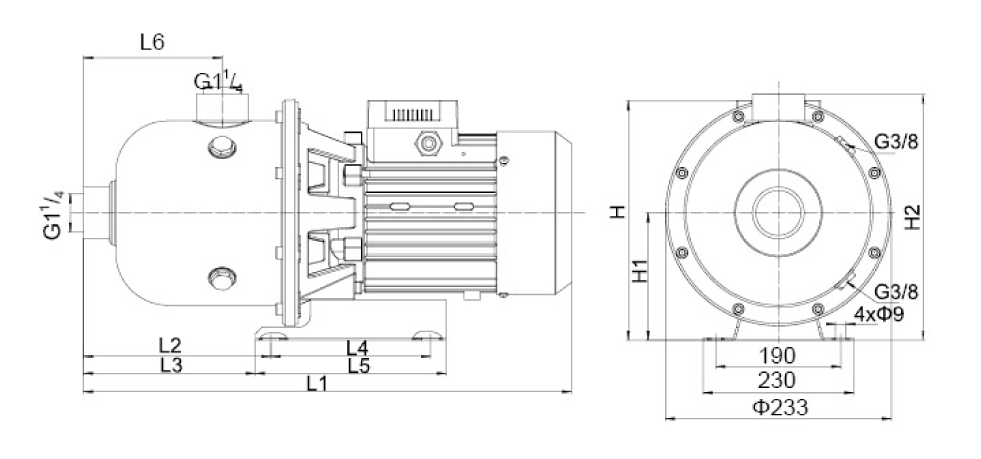

Model | L1 | L2 | L3 | L4 | L5 | L6 | H | H1 | H2 | GW (kgs) | LxWxH (mm) | Quantity (PCS/20'TEU) | |
1~ | 3~ | ||||||||||||
EDH(m)10-10-F | 557 | 288 | 273 | 140 | 170 | 188 | 232.5 | 226 | 120 | 260 | 21.5 | 610x265x317 | 540 |
EDH(m)10-20-F | 557 | 288 | 273 | 140 | 170 | 188 | 232.5 | 226 | 120 | 260 | 22 | 610x265x317 | 540 |
EDH(m)10-30-F | 557 | 288 | 273 | 140 | 170 | 188 | 232.5 | 226 | 120 | 260 | 23.0 | 610x265x317 | 540 |
EDH(m)10-40-F | 600 | 288 | 273 | 140 | 170 | 188 | 236 | 230 | 120 | 260 | 29.0 | 660x265x317 | 480 |
EDH(m)10-50-F | 600 | 288 | 273 | 140 | 170 | 188 | 242 | 230 | 120 | 260 | 30.7 | 660x265x317 | 480 |

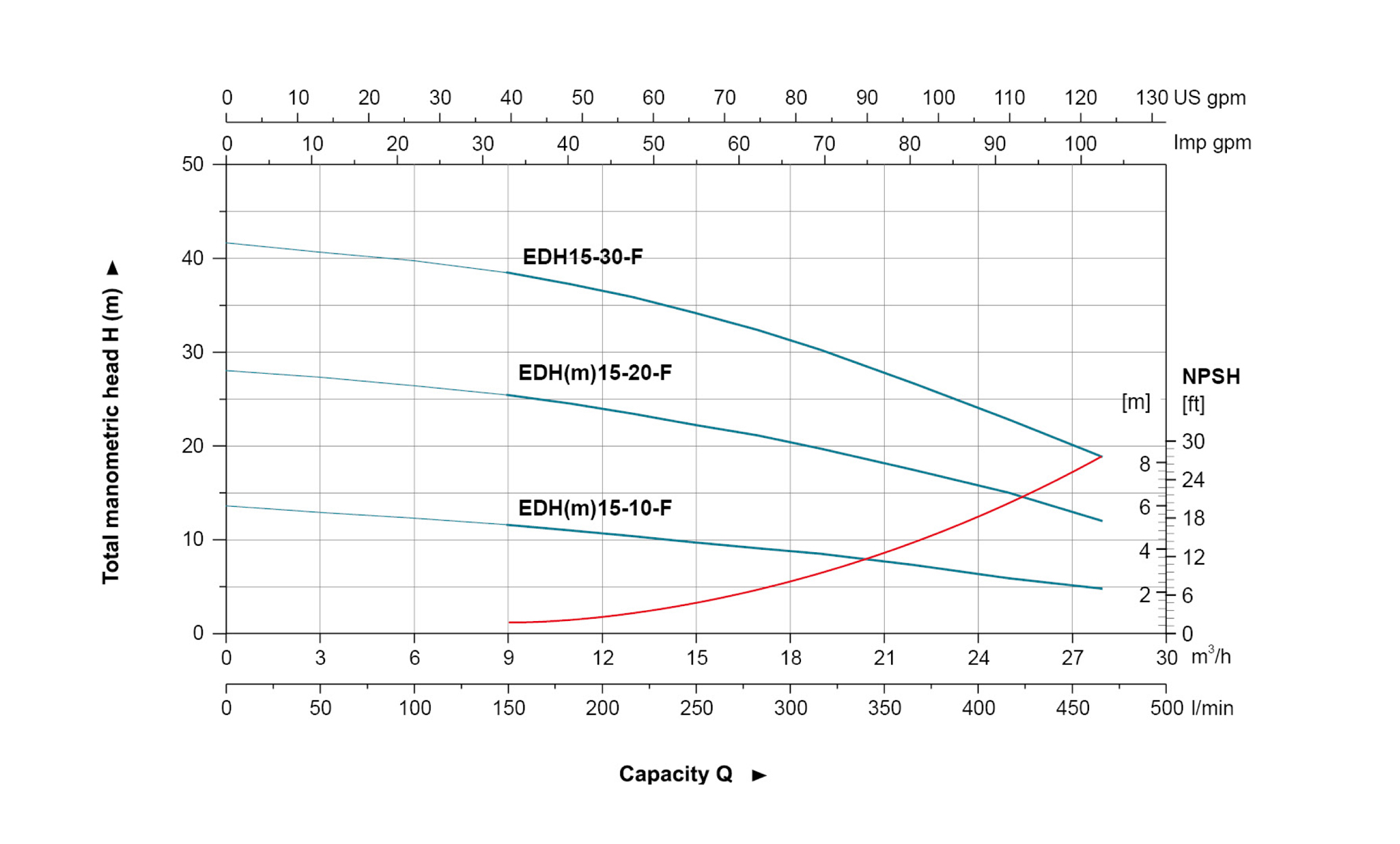

Model | Power | Q(m³/h) | 9 | 11 | 13 | 15 | 17 | 19 | 22 | 25 | 28 | |
kW | HP | Q(l/min) | 150 | 183 | 217 | 250 | 283 | 317 | 367 | 417 | 467 | |
EDH(m)15-10-F | 1.1 | 1.5 | H (m) | 11.6 | 11 | 10.4 | 9.4 | 9.1 | 8.5 | 7.7 | 5.9 | 4.8 |
EDH(m)15-20-F | 2.2 | 3.0 | 25.4 | 24.5 | 23.4 | 22 | 21.1 | 19.7 | 17.4 | 15 | 12 | |
EDH15-30-F | 4.0 | 5.0 | 38.4 | 37.2 | 35.8 | 34 | 32.3 | 30.2 | 26.6 | 22.8 | 18.8 |

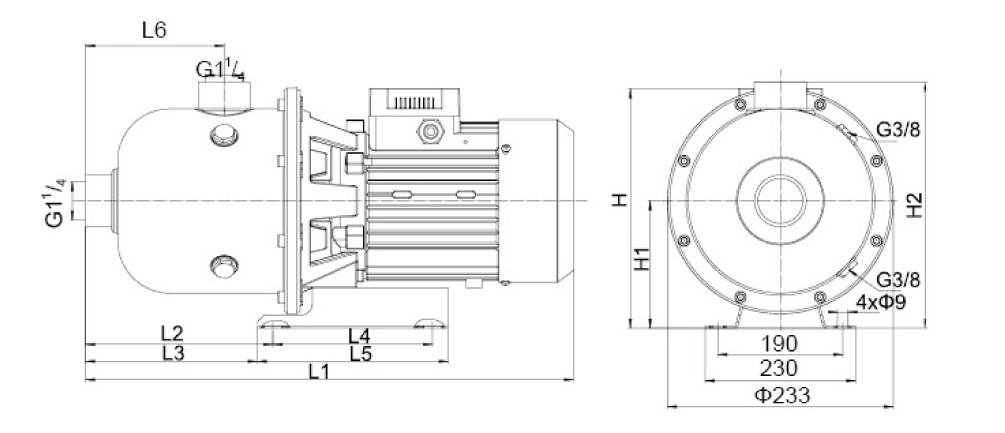

Model | L1 | L2 | L3 | L4 | L5 | L6 | H | H1 | H2 | GW (kg) | LxWxH (mm) | Quantity (PCS/20'TEU) | |
1~ | 3~ | ||||||||||||
EDH(m)15-10-F | 557 | 288 | 273 | 140 | 170 | 188 | 232.5 | 226 | 120 | 260 | 20.5 | 610x265x317 | 540 |
EDH(m)15-20-F | 600 | 288 | 273 | 140 | 170 | 188 | 242 | 230 | 120 | 260 | 28.8 | 660x265x317 | 480 |
EDH15-30-F | 620 | 288 | 273 | 140 | 170 | 188 | 250 | 250 | 120 | 260 | 33 | 660x265x317 | 480 |

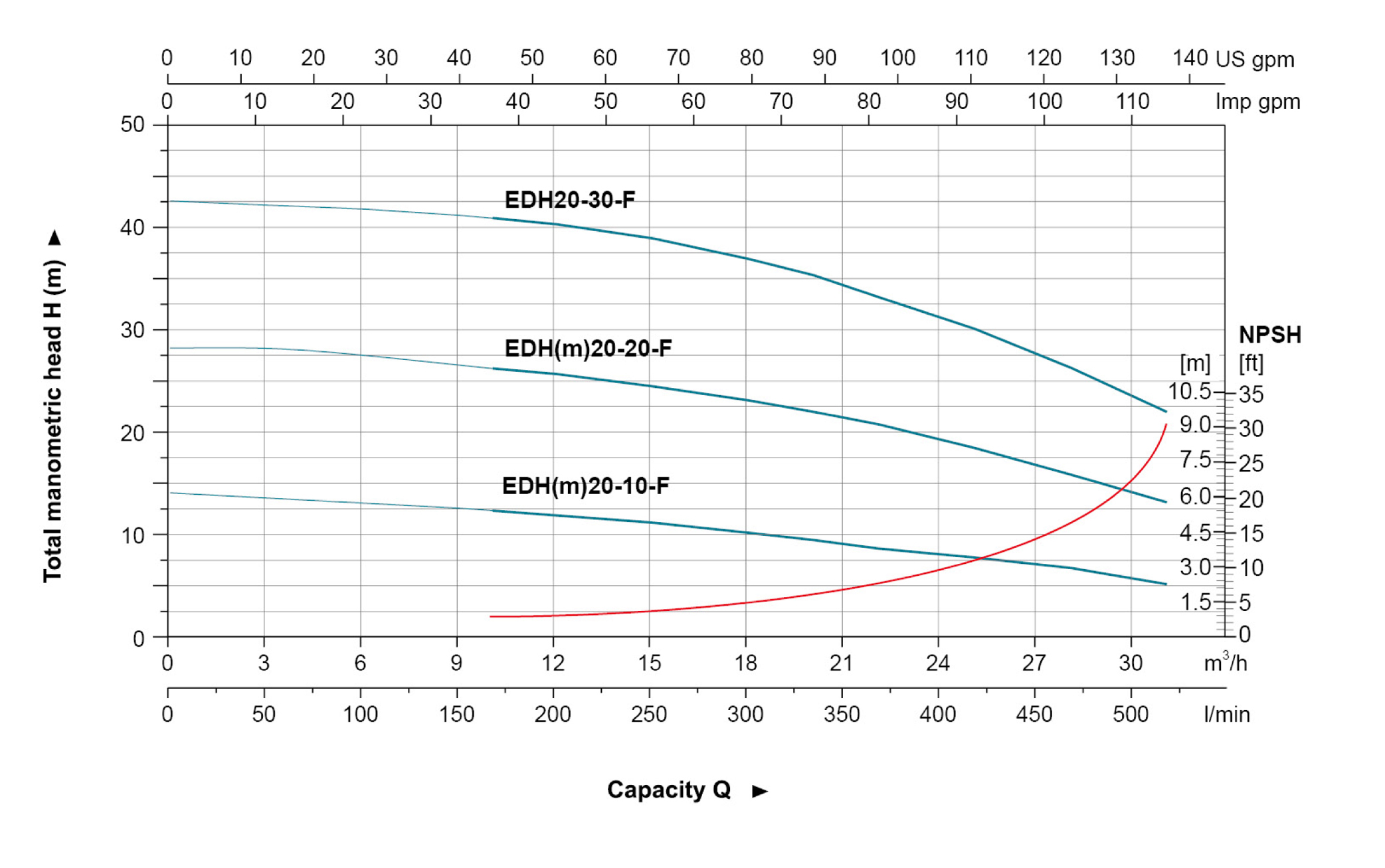

Model | Power | Q(m³/h) | 9 | 12 | 15 | 18 | 20 | 22 | 25 | 28 | 31 | |
kW | HP | Q(l/min) | 150 | 200 | 250 | 300 | 333 | 367 | 417 | 467 | 517 | |
EDH(m)20-10-F | 1.1 | 1.5 | H (m) | 12.4 | 11.9 | 11.2 | 10.2 | 9.5 | 8.7 | 8 | 6.8 | 5.2 |
EDH(m)20-20-F | 2.2 | 3.0 | 26.5 | 25.7 | 24.5 | 23.1 | 22 | 20.8 | 18.5 | 15.9 | 13.2 | |
EDH20-30-F | 4.0 | 5.5 | 41.2 | 40.3 | 38.9 | 36.9 | 35 | 33.2 | 30.1 | 26.3 | 22 |
Model | L1 | L2 | L3 | L4 | L5 | L6 | H | H1 | H2 | GW (kg) | LxWxH (mm) | Quantity (PCS/20'TEU) | |
1~ | 3~ | ||||||||||||
EDH(m)20-10-F | 557 | 288 | 273 | 140 | 170 | 188 | 232.5 | 226 | 120 | 260 | 20.5 | 610x265x317 | 540 |
EDH(m)20-20-F | 600 | 288 | 273 | 140 | 170 | 188 | 242 | 230 | 120 | 260 | 28.8 | 660x265x317 | 480 |
EDH20-30-F | 620 | 288 | 273 | 140 | 170 | 188 | 250 | 250 | 120 | 260 | 33 | 660x265x317 | 480 |

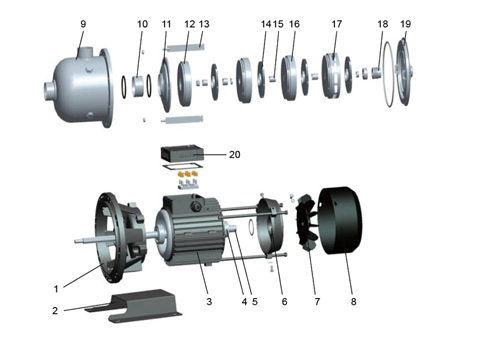

No | Part | Material |
1 | Support | ZL 102 |
2 | Base | W235 |
3 | Stator | |
4 | Bearing | |
5 | Rotor | ZL 102 |
6 | Rear | PP |
7 | Fan | 08F |
8 | Fan cover | AISI 304 |
9 | Pump body | AISI 304 |
10 | Spacer bush | AISI 304 |
11 | Pressure plate | AISI 304 |
12 | Diffuser1 | AISI 304 |
13 | Tension plate | AISI 304 |
14 | Impeller | AISI 304 |
15 | Sleeve | AISI 304 |
16 | Diffuser2 | AISI 304 |
17 | Diffuser3 | AISI 304 |
18 | Mechanical seal | Sic/Carbon |
19 | Bracket cover | AISI 304 |
20 | Terminal cover | Plastic |
