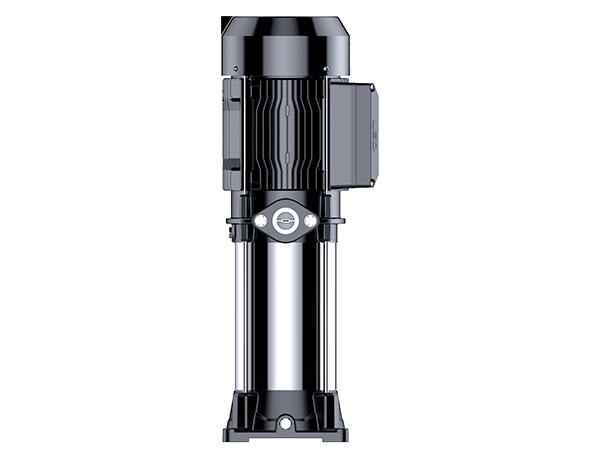

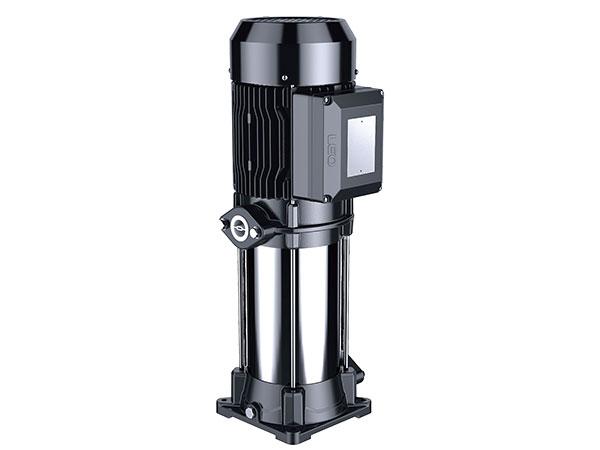

EVS Vertical Multistage Centrifugal Pump
This product has been discontinued and removed from our shelves.
Application
The EVS vertical multistage centrifugal pump is suitable for transferring liquids that are of a low viscosity, non-flammable, explosive resistant, and free of solid particles or fibers. It is also applicable for the water supply & drainage in high-rise buildings, filtration and transfer at waterworks, pressure boosting in main pipes, washing and cleaning systems, boiler feeding, cooling water circulation, water treatment systems, auxiliary system, and support equipment.
Ultra-filtration systems, reverse-osmosis systems.
Operating Conditions:
AISI304 Impeller, diffuser, barrel
Stainless steel welded shaft
Liquid temperature range: +4℃ ~ +60℃
Cast iron water inlet and outlet with special anti-rust treatment
Liquid PH value: 6.5 - 8.5
Max. operation pressure: 15 bar
Altitude: up to 1000 m
C&U bearing
Motor Feature:
Motor with copper winding
Insulation class: F
Protection class: IP55
Max. ambient temperature: 40°C
| Model | A | B | C | D | E | F | Inlet | Outlet | |
| EVS2-6 | 587 | 241.5 | 248 | 126.5 | 230 | 134 | G1 | G1 | |
| EVS2-7 | 612 | 266.5 | 248 | 126.5 | 230 | 134 | G1 | G1 | |
| EVS2-8 | 637 | 291.5 | 248 | 126.5 | 230 | 134 | G1 | G1 |
| Model | GW (Kgs) | L (mm) | W (mm) | H (mm) | Quantity(PCS/20'TEU) | |
| EVS2-6 | 41.44 | 730 | 330 | 370 | 336 | |
| EVS2-7 | 43.97 | 730 | 330 | 370 | 336 | |
| EVS2-8 | 44.74 | 730 | 330 | 370 | 336 |
| Model | A | B | C | D | E | F | Inlet | Outlet | |
| EVS4-6 | 587 | 241.5 | 248 | 126.5 | 230 | 134 | G1 | G1 | |
| EVS4-7 | 612 | 266.5 | 248 | 126.5 | 238.5 | 141 | G1 | G1 | |
| EVS4-8 | 637 | 291.5 | 248 | 126.5 | 238.5 | 141 | G1 | G1 |
| Model | GW (Kgs) | L (mm) | W (mm) | H (mm) | Quantity(PCS/20'TEU) | |
| EVS4-6 | 43.2 | 730 | 330 | 370 | 336 | |
| EVS4-7 | 47.38 | 730 | 330 | 370 | 336 | |
| EVS4-8 | 48.15 | 730 | 330 | 370 | 336 |

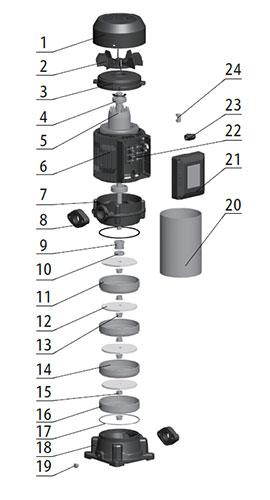

| No. | Part | Material |
| 1 | Fan cover | 08F |
| 2 | Fan | PP |
| 3 | Rear cover | Cast Iron |
| 4 | Bearing | |
| 5 | Rotor | |
| 6 | Stator | |
| 7 | Motor base | Cast Iron |
| 8 | Oval flange | Cast Iron |
| 9 | Mechanical Seal | Ceramic/Carbon |
| 10 | Locating sleeve | AISI304 |
| 11 | Medium diffuser | AISI304 |
| 12 | Impeller | AISI304 |
| 13 | Sleeve | AISI304 |
| 14 | Diffuser with bearing | AISI304 |
| 15 | Guide sleeve | AISI304 |
| 16 | Primary diffuser | AISI304 |
| 17 | O-ring | NBR |
| 18 | Base | Cast Iron |
| 19 | Drainage plug | |
| 20 | Barrel | AISI304 |
| 21 | Terminal box | ABS |
| 22 | Wiring base | |
| 23 | Cable holder | |
| 24 | Wire clip |
