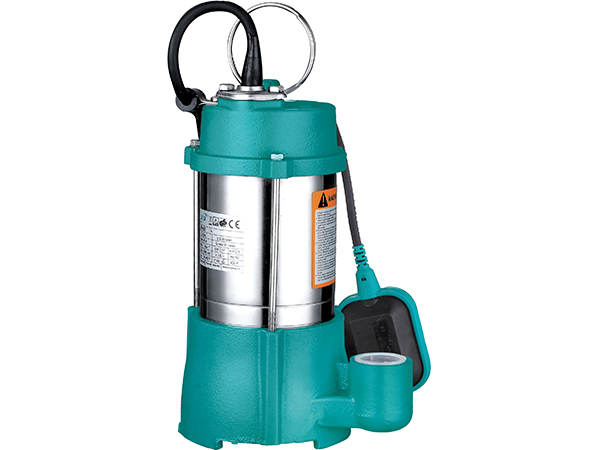

0.5HP SPm Submersible Peripheral Pump

0.5HP SPm Submersible Peripheral Pump

Application
- Can be used to transfer clean water or other liquids similar to water in physical and chemical properties.
- Suitable for lifting water from the well, sprinkling irrigation in garden, pressure boosting of running water, and supporting equipment etc.

5HP SPm Submersible Peripheral Pump Features:
- Special anti-rust treatment for cast iron pump body and support
- Max. liquid temperature: +35 ℃
- Max. immersion depth: 5m
- Liquid PH value: 6.5 - 8
- Maximum sand content: 0.1%
- Maximum solid diameter: 0.2mm

5HP SPm Submersible Peripheral Pump Motor Features:
- Copper winding
- Insulation class: F
- Protection class: IPX8

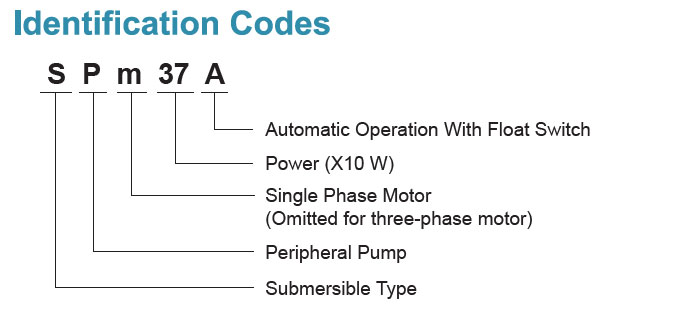

Identification Codes
Technical Data of 5HP SPm Submersible Peripheral Pump:
MODEL POWER Q(m3/h) 0 0.5 1 1.5 2 2.26
(KW) (HP) Q(L/min) 0 5 10 15 20 25
SPm37 0.37 0.5 H(m) 42 35 24.5 14 4.5 0.5

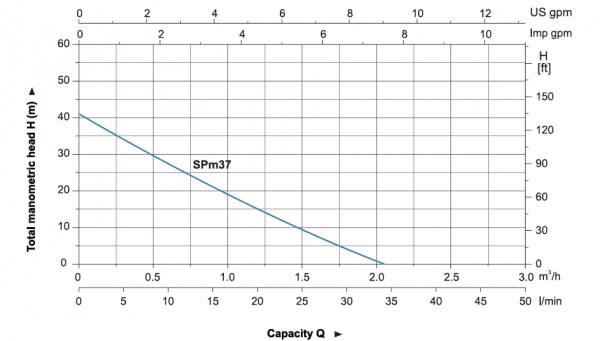

5HP SPm Submersible Peripheral Pump Hydraulic performance Curves

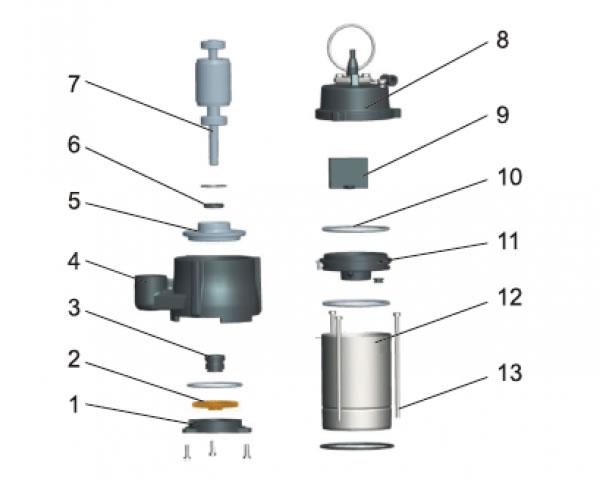

Material Table of 5HP SPm Submersible Peripheral Pump
No. Part Material
1 Casing cover HT200
2 Impeller Brass
3 Mechanical seal carbon/ceramic
4 Pump body HT200
5 Lowing bearing seat ZL102
6 Oil seal
7 Rotor
8 Top cover HT200
9 Capacitor
10 O-ring NBR
11 Up bearing seat HT200
12 Barrel AISI304
13 Screw
