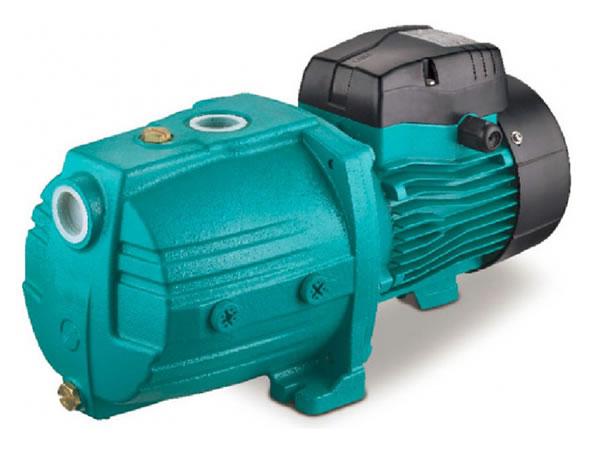

3(4)ACm Multistage Centrifugal Pump
Application
- 3(4)ACm Multistage Centrifugal Pump can be used to transfer clean water or other liquids similar to water in physical and chemical properties.
- It is suitable for industrial and urban water supply, domestic water supply, high rise buildings, long distance water transferring and related auxiliary equipment etc.
3(4)ACm Multistage Centrifugal Pump Features
- Cast iron pump body and support under special anti-rust treatment.
- AISI 304 shaft.
- Max. liquid temperature: +40℃.
- Max. suction: +8m.
3(4)ACm Multistage Centrifugal Pump Motor Features
- C&U bearing.
- Motor with cooper winding.
- Built-in thermal protector for single phase motor.
- Insulation class: F.
- Protection class: IPX4.
- Max. ambient temperature: +40℃.

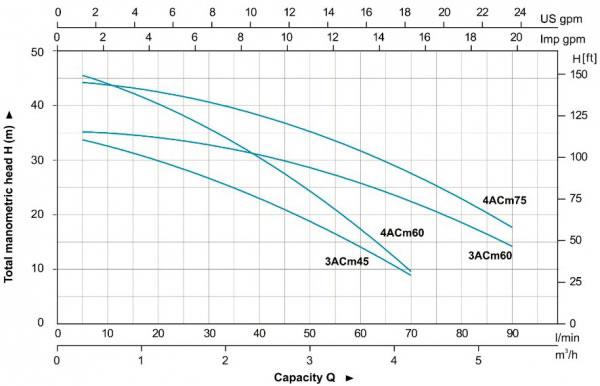

| MODEL | POWER | Q(m³/h) | 0 | 0.3 | 0.6 | 0.9 | 1.2 | 1.5 | 1.8 | 2.4 | 3 | 3.6 | 4.2 | 4.8 | 5.4 | ||
| Single Phase | Three Phase | KW | HP | Q(l/min) | 0 | 5 | 10 | 15 | 20 | 25 | 30 | 40 | 50 | 60 | 70 | 80 | 90 |
| ˗ | 0.45 | 0.6 | H(m) | 35 | 33.5 | 32.5 | 31.5 | 30 | 28.5 | 26.5 | 23 | 18.5 | 14 | 9 | ˗ | ˗ | |
| ˗ | 0.6 | 0.85 | 46.5 | 45 | 44 | 42.5 | 40.5 | 38.5 | 36 | 30 | 24 | 17 | 10 | ˗ | ˗ | ||
| ˗ | 0.6 | 0.85 | 36 | 35.5 | 35 | 34.5 | 34 | 33.5 | 32.5 | 30.5 | 28.5 | 26 | 23 | 19 | 13.5 | ||
| 0.75 | 1 | 46.5 | 45 | 44 | 43 | 42 | 41 | 40 | 38 | 35.5 | 32.5 | 28 | 23 | 17 | |||

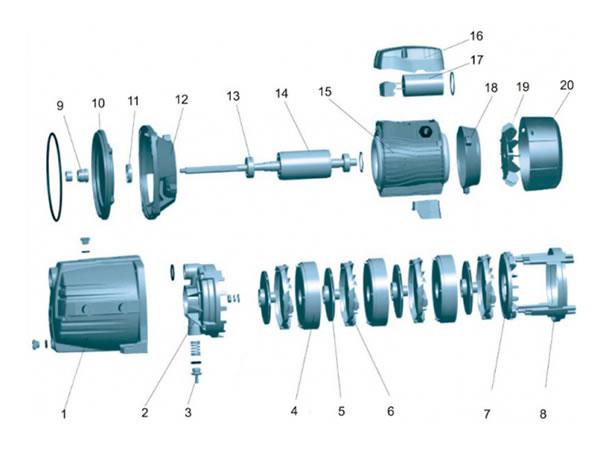

| No. | Part | Material |
| 1 | Pump Body | HT 200 |
| 2 | Pump Cover | PPO |
| 3 | Return Valve | PPO |
| 4 | Diffuser 1 | PPO |
| 5 | Impeller | PPO |
| 6 | Diffuser 2 | PPO |
| 7 | Diffuser Holder | PPO |
| 8 | Support Frame | PPO |
| 9 | Mechanical Seal | Carbon/Ceramic |
| 10 | Bracket Cover | HT 200 |
| 11 | Oil Seal | |
| 12 | Support | ZL 102 |
| 13 | Bearing | |
| 14 | Rotor | |
| 15 | Stator | |
| 16 | Terminal Box | ABS |
| 17 | Capacitor | |
| 18 | Rear Cover | ZL 102 |
| 19 | Fan | PP |
| 20 | Fan cover | PP |
