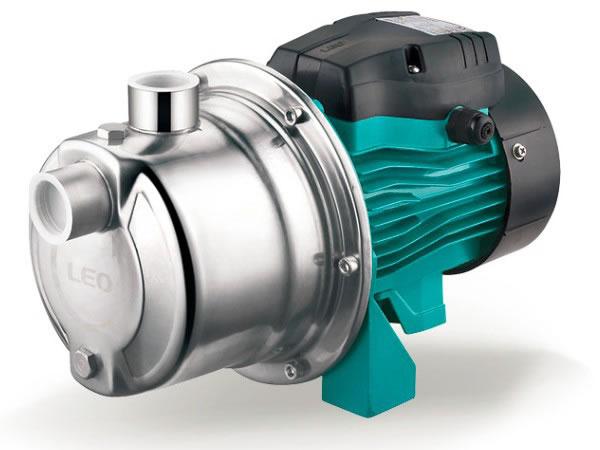

AJm-S Jet Pump

AJm-S Jet Pump

AJm-S Jet Pump Application
- Our jet pump can be used to transfer clean water or other liquids similar to water in physical and chemical properties.
- The pumps are suitable for lifting water from the well, garden irrigation, pressure boosting of running water, and supporting equipment etc.

Jet Pump Features
- Cast iron pump body and support under special anti-rust treatment.
- Stainless steel impeller.
- AISI 304 shaft.
- Max. liquid temperature: +40℃.
- Max. suction: +9m.

Jet Pump Motor Features
- C&U bearing.
- Motor with copper winding.
- Built-in thermal protector for single phase motor.
- Insulation class: F.
- Protection class: IPX4.
- Max. ambient temperature: +40℃.

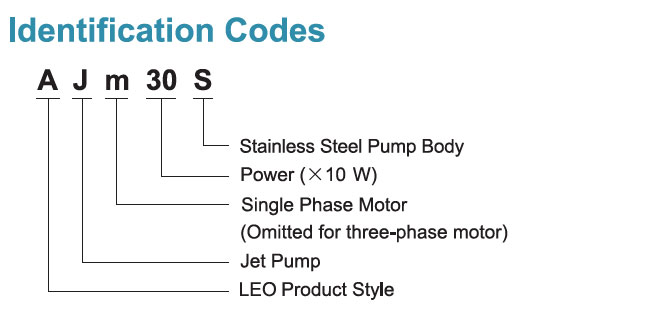

Identification Codes
Technical Data of AJm-S Jet Pump
MODEL POWER Q(m³/h) 0 0.3 0.6 0.9 1.2 1.5 1.8 2.1 2.4 2.8 3 3.3 3.6 3.9
KW HP Q(l/min) 0 5 10 15 20 25 30 35 40 47 50 55 60 65
AJm30 0.3 0.4 H
(M) 		35 30 26 22.5 20 18 16 14 ˗ ˗ ˗ ˗ ˗ ˗
AJm45 0.45 0.6 41 36 32 28 25 22 20 18 ˗ ˗ ˗ ˗ ˗ ˗
AJm60 0.6 0.8 45 41 37 33.5 31 28.5 26 24 22.5 21 ˗ ˗ ˗ ˗
AJm75 0.75 1 40 38 36 34.5 33 31.5 30 29 28 27 26 25 24 23
AJm75H 0.75 1 51 47 43 40 37 34.5 32 30 27.5 25 ˗ ˗ ˗ ˗
AJm90 0.9 1.2 48 46 44 42.5 41 39.5 38 36 35 34 33 32 31 30
AJm90H 0.9 1.2 62 57 53 49 46 43 40 37 35 33 ˗ ˗ ˗ ˗

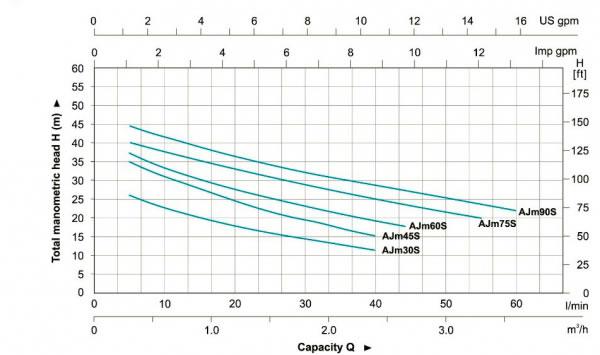

AJm-S Jet Pump Hydraulic Performance Curves
Material Table for AJm-S Jet Pump
No. Part Material
1 Pump body HT 200
2 Venturi tube PPO
3 Diffuser PPO
4 Impeller AISI 304
5 Mechanical seal Carbon/Ceramic
6 O-ring NBR
7 Support cover AISI 304
8 Support AISI 304
9 Bearing
10 Rotor
11 Fan cover PP
12 Fan PP
13 Rear cover ZL 102
14 Capacitor
15 Terminal box ABS
16 Terminal board
17 Stator
