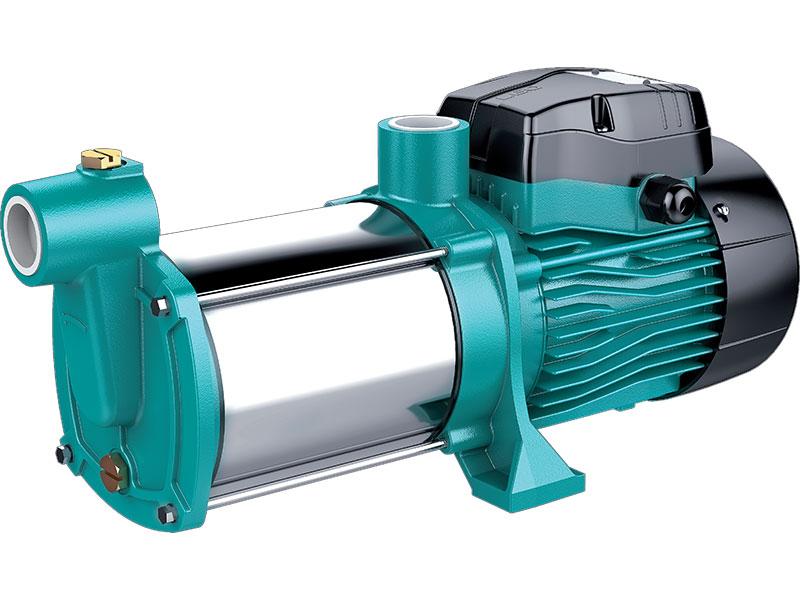

ACm100S Stainless Steel Multistage Centrifugal Pump
Application of ACSm100S Stainless Steel Multistage Centrifugal Pump:
- Transfer clean water or other liquids similar to water in both physical and chemical properties
- Suitable for industrial use and urban water supply, domestic water supply, high rise buildings, long distance water transfer and related auxiliary equipment
Pump
Cast iron pump body and support under special anti-rust treatment
AISI 304 shaft
Max. liquid temperature:+60℃
Max. Suction: +8m.
Motor
- C&U bearing.
- Motor with copper winding.
- Built-in thermal protector for single phase motor.
- Insulation class: F.
- Protection class: IPX4.
- Max. Ambient temperature: +40℃.
- IE 2 motor (Three phase,power ≥0.75KW)

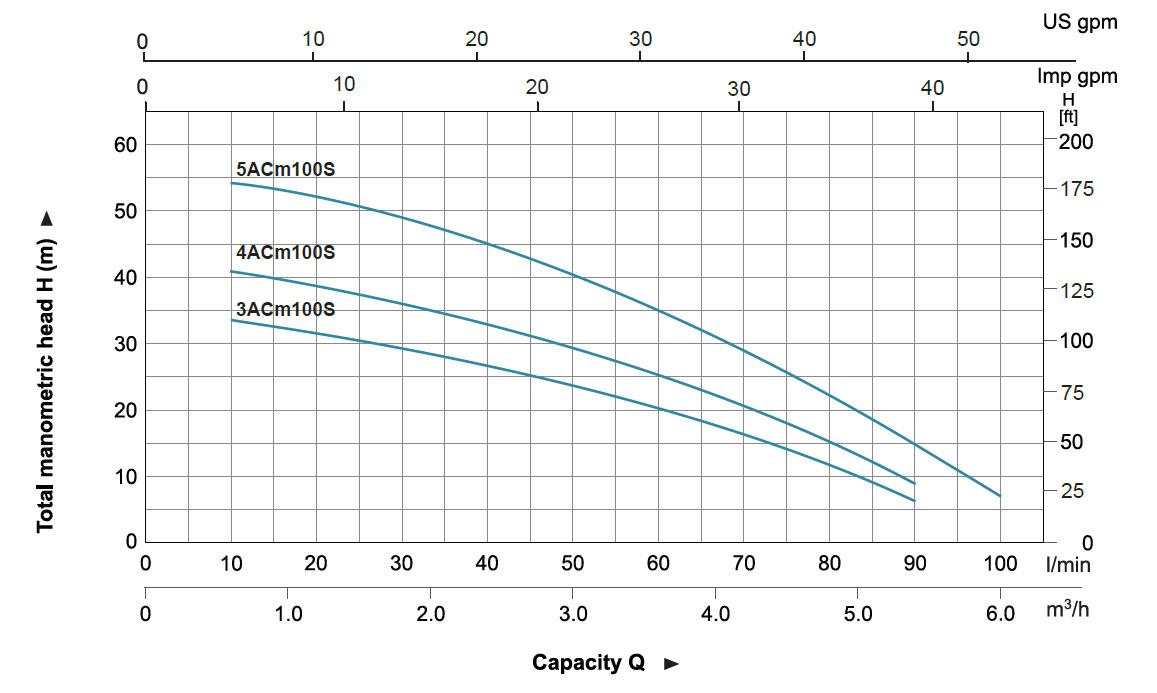

| Model | POWER | Q(m³/h) | 0 | 0.6 | 1.2 | 1.8 | 2.4 | 3 | 3.6 | 4.2 | 4.8 | 5.4 | 6 | ||
| Single Phase | Three Phase | kW | HP | Q(l/min) | 0 | 10 | 20 | 30 | 40 | 50 | 60 | 70 | 80 | 90 | 100 |
| 0.6 | 0.8 | H(m) | 35 | 33.5 | 31.5 | 29 | 26.5 | 24 | 20.5 | 16 | 12 | 7 | - | ||
| 0.75 | 1 | 45 | 41 | 38.5 | 36 | 33 | 30 | 25.5 | 21 | 15 | 9 | - | |||
| 0.9 | 1.2 | 55 | 54 | 52 | 49 | 45 | 40 | 35 | 29 | 22.5 | 15 | 8 |

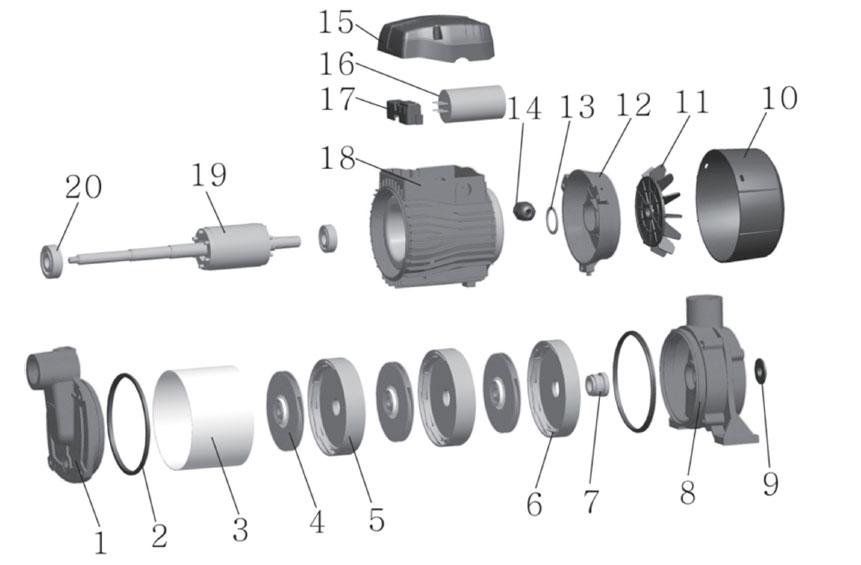

| NO. | Part | Material |
| 1 | Pump body | HT200 |
| 2 | Seal washer | NBR |
| 3 | Pump barrel | AISI304 |
| 4 | Impeller | PPO |
| 5 | Drain cover | PPO |
| 6 | Diffuser | PPO |
| 7 | Mechanical Seal | Carbon/Ceramic |
| 8 | Support | HT200 |
| 9 | water proof gland | NBR |
| 10 | Fan cover | PP |
| 11 | Fan | PP |
| 12 | Rear cover | ZL102 |
| 13 | Spring washer | 65Mn |
| 14 | Cable holder | |
| 15 | Capacitor box | |
| 16 | Capacitor | |
| 17 | Terminal board | |
| 18 | Stator | |
| 19 | Rotor | |
| 20 | Bearing |
