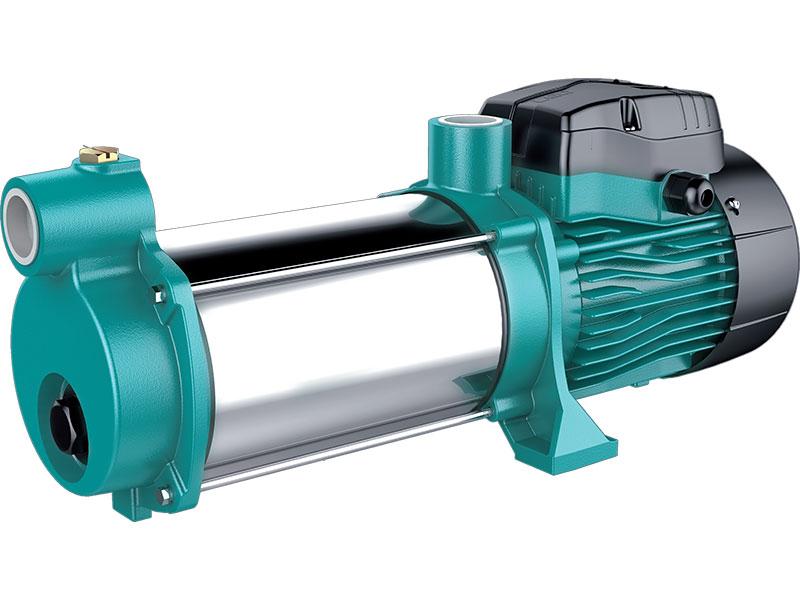

ACSm100S Stainless Steel Multistage Centrifugal Pump

ACSm100S Stainless Steel Multistage Centrifugal Pump

Application of ACSm100S Stainless Steel Multistage Centrifugal Pump
-Transfer clean water or other liquids similar to water in both physical and chemical properties
- Suitable for industrial use and urban water supply, domestic water supply, high rise buildings, long distance water transfer and related auxiliary equipment

Pump
Pump with self-priming design
Cast iron pump body and support under special anti-rust treatment
AISI 304 shaft
Max. liquid temperature: +60℃
Max. Suction: +8m.

Motor
- C&U bearing.
- Motor with copper winding.
- Built-in thermal protector for single phase motor.
- Insulation class: F.
- Protection class: IPX4.
- Max. Ambient temperature: +40℃.
- IE 2 motor (Three phase, power ≥0.75KW)

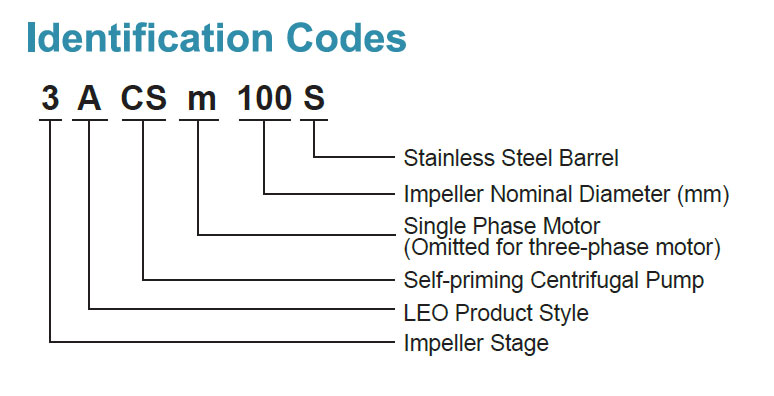

Identification Codes
Technical Data of ACSm100S Stainless Steel Multistage Centrifugal Pump
Model POWER Q(m³/h) 0 0.6 1.2 1.8 2.4 3 3.6 4.2 4.8 5.4 6
Single Phase Three Phase kW HP Q(l/min) 0 10 20 30 40 50 60 70 80 90 100
3ACSm100S 3ACS100S 0.6 0.8 H(m) 35 33.5 31.5 29 26.5 24 20.5 16 12 7 -
4ACSm100S 4ACS100S 0.75 1 45 41 38.5 36 33 30 25.5 21 15 9 -
5ACSm100S 5ACS100S 0.9 12 55 54 52 49 45 40 35 29 22.5 15 8

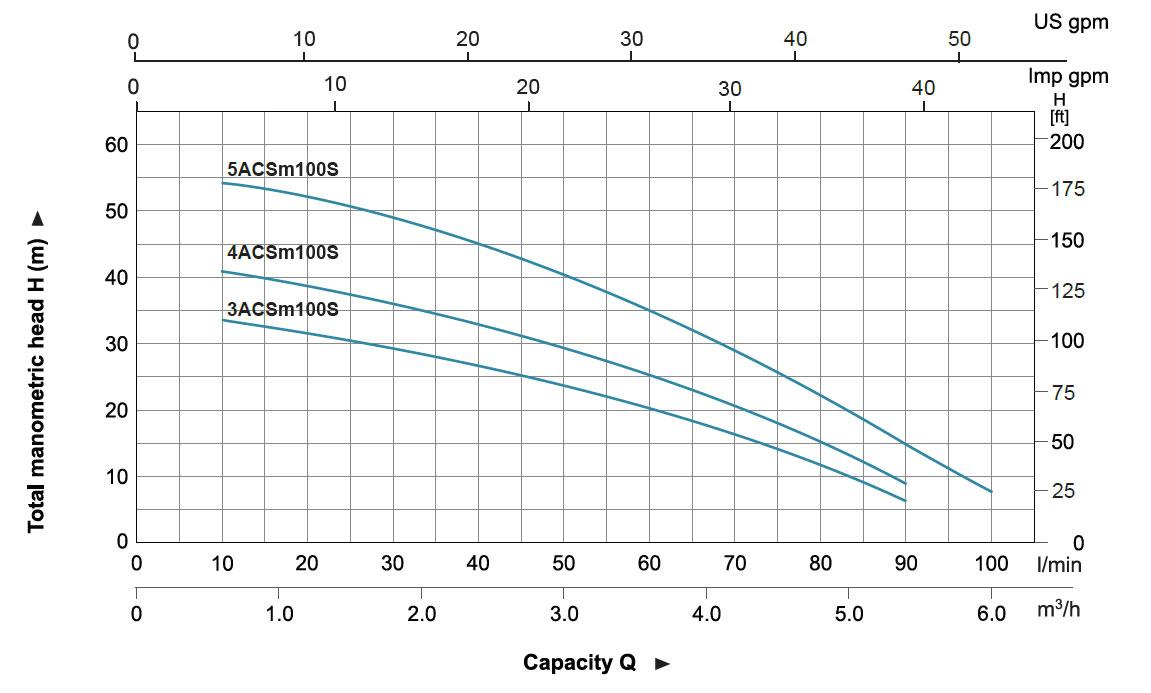

Hydraulic Performance Curves of ACSm100S Stainless Steel Multistage Centrifugal Pump
Hydraulic Performance Curves of ACSm100S Stainless Steel Multistage Centrifugal Pump

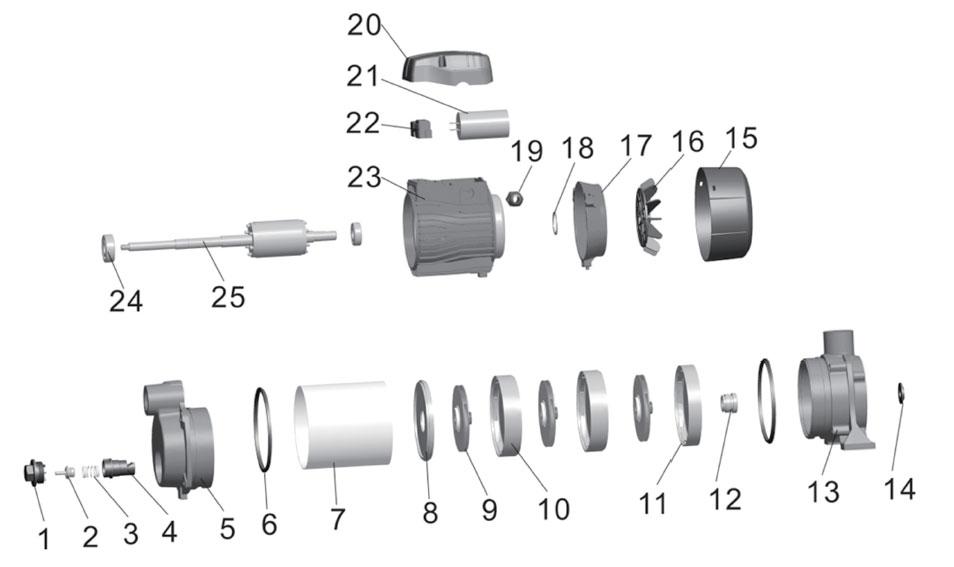

Material Table of ACSm100S Stainless Steel Multistage Centrifugal Pump
NO. Part Material
1 Plug HT200
2 Return valve NBR
3 Spring AISI304
4 Nozzle PPO
5 Pump body PPO
6 Seal washer PPO
7 Pump barrel AISI304
8 Pump cover PPO
9 Impeller PPO
10 Drain cover PPO
11 Diffuser PPO
12 Mechanical Seal Carbon/Ceramic
13 Support HT200
14 Water proof gland NBR
15 Fan cover PC/ABS
16 Fan PPO
17 Rear cover ZL102
18 Spring washer 65Mn
19 Cable holder
20 Capacitor box ABS
21 Capacitor
22 Terminal board
23 Stator
24 Bearing
25 Rotor
ACSm100S Stainless Steel Multistage Centrifugal Pump

LEO is a listed company in China (stock code 002131), LEO is a leading multistage centrifugal pump manufacturer only offers high quality pumps. LEO has made millions of water pumps and sewage pumps now used in more than 140 countries. LEO multistage centrifugal water pumps can meet you any requires in domestic pumping systems.
