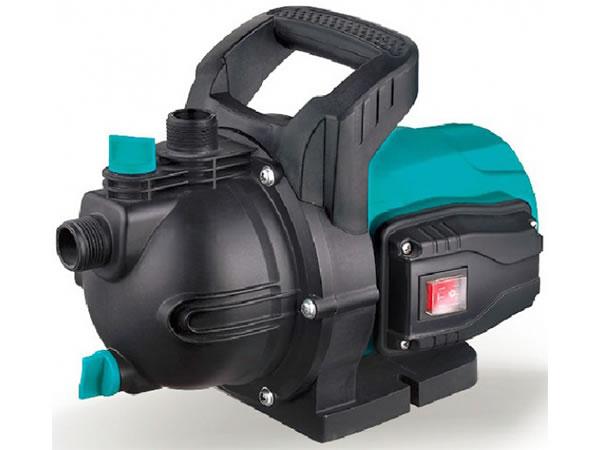

LKJ-P Plastic Garden Jet Pump
Application
- LKJ-P Plastic Garden Jet Pump can be used to transfer clean water or other liquids with similar physical and chemical properties.
- LKJ-P Plastic Garden Jet Pump is suitable for water supply and drainage in garden irrigation, greenhouses, fish breeding and poultry raising. The pump also can be used for domestic automatic water supply place, such as lifting water from a deep well, pressure boosting of running water, etc.
LKJ-P Plastic Garden Jet Pump Features
- Unique ergonomic design.
- Max. fluid temperature: +35℃.
- Max. suction: +8 m.
LKJ-P Plastic Garden Jet Pump Motor Features
- C & U bearing.
- Built-in thermal protector.
- Aluminum winding.
- Insulation class: F.
- Protection class: IPX4.
- Max. ambient temperature: +40℃.

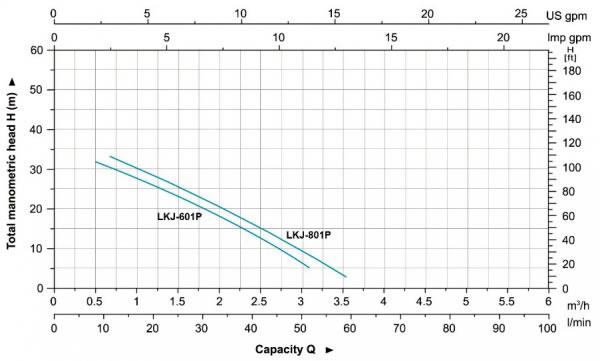

| MODEL | POWER | Q(m³/h) | 0 | 0.6 | 1.2 | 1.8 | 2.4 | 3 | 3.6 | 4.2 | 4.8 | 5.4 | 6 | ||
| W | HP | Q(l/min) | 0 | 10 | 20 | 30 | 40 | 50 | 60 | 70 | 80 | 90 | 100 | ||
| LKJ-601P | 600 | 0.8 | H (m) | 35 | 31 | 25.5 | 20 | 14 | 8 | ˗ | ˗ | ˗ | ˗ | ˗ | |
| LKJ-801P | 800 | 1.1 | 39 | 34.5 | 29 | 23 | 16.5 | 9.5 | ˗ | ˗ | ˗ | ˗ | ˗ | ||
| LKJ-901P | 900 | 1.2 | 43 | 39 | 34 | 28 | 21 | 12.5 | 3 | ˗ | ˗ | ˗ | ˗ | ||
| LKJ-1101P | 1100 | 1.5 | 46 | 43 | 39 | 35 | 30 | 24 | 17 | 8 | ˗ | ˗ | ˗ | ||
| LKJ-1301P | 1300 | 1.75 | 48 | 45 | 41 | 36.5 | 31.5 | 26.5 | 21 | 14 | 8 | ˗ | ˗ | ||

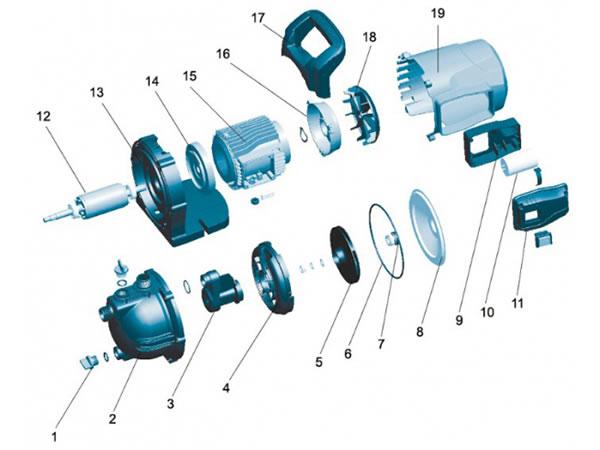

| No. | Part | Material |
| 1 | Drain Plug | PP |
| 2 | Pump Body | PP |
| 3 | Ejector | PPO |
| 4 | Diffuser | PPO |
| 5 | Impeller | PPO |
| 6 | O-ring | NBR |
| 7 | Mechanical Seal | Carbon/Ceramic |
| 8 | Bracket Cover | AISI 304 |
| 9 | Terminal Board | ABS |
| 10 | Capacitor | |
| 11 | Switch Cover | ABS |
| 12 | Rotor | |
| 13 | Motor Flange | PP |
| 14 | Front Plate | ZL 102 |
| 15 | Stator | |
| 16 | Rear Cover | ZL 102 |
| 17 | Handle | PP |
| 18 | Fan | PP |
| 19 | Fan Cover | ABS |
LEO is a listed company in China (stock code 002131), LEO is a leading LKJ-P Plastic Garden Jet Pump manufacturer only offers high quality pumps. LEO has made millions of pumps now used in more than 140 countries, and is offering residential water pumps, submersible pumps, deep well pumps with custom solutions. LEO jet pumps can meet you any requires in domestic pumping systems.
