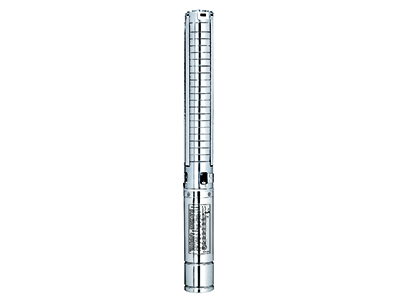

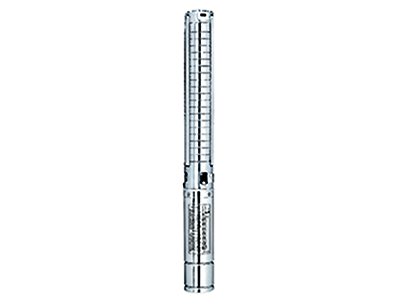

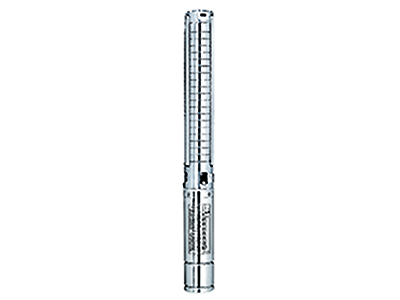

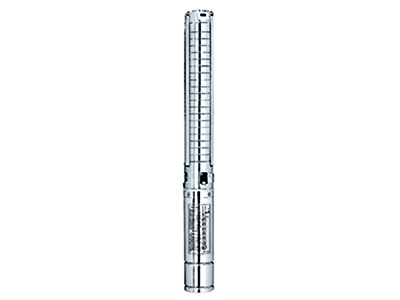

4" 6" Stainless Steel Submersible Borehole Pump
4" 6" Stainless Steel Submersible Borehole Pump Application
For water supply from wells or reservoirs.
- For domestic use, for civil and industrial applications.
- For garden use and irrigation.
Operation Conditions for 4" 6" Stainless Steel Submersible Borehole Pump
- Maximum fluid temperature up to +50℃.
- Maximum sand content: 0.25%.
- Maximum immersion: 80 m.
- Minimum well diameter: 4" 6".
Operation Conditions for 6" Stainless Steel Submersible Borehole Pump
- Maximum fluid temperature up to +35℃.
- Maximum sand content: 0.25%.
- Maximum immersion: 100 m.
- Minimum well diameter: 6".
1. Direct start (1 cable)
2. Star-delta start (2 cable)
- Equip with start control box or digital auto-control box.
- 4" 6" Stainless Steel Submersible Borehole Pump enjoys NEMA standard dimensions.
- Curve tolerance in accordance with ISO 9906.
| Series | 4XRS | 6XRS | 6XRP |
| Components | Material | Material | Material |
| Delivery casing | AISI 304 SS | Cast-iron ASTM No.30 | |
| Suction lantern | AISI 304 SS | Cast-iron ASTM No.30 | |
| Diffuser | AISI 304 SS | Plastic. PC & AISI 304 SS | |
| Imepller | AISI 304 SS | Plastic. PC | |
| Wear ring | Rubber | AISI 304 SS | |
| Top chock | Cast-iron UNI5007 | Cast-iron ASTM No.30 | |
| Bottom support | AISI 304 SS | Cast-iron ASTM No.30 | |
| Seal | Special seal for deep well (carbon-SIC/TC) | NBR Graphite-SIC/TC | |
| Shaft | AISI 304 SS-C 1045 | AISI 304 SS-ASTM 5140 | |
| Shaft | AISI 304 SS | ||
| Shaft coupling | AISI 304 SS | ||
| Motor external casing | AISI 304 SS | ||
| Bearing | C & U/ NSK | ||
| Seal Lubricant Oil | Food grade lubricant oil and medical grade lubricant oil | / | / |
| Pump external casing | / | / | AISI 304 SS |
