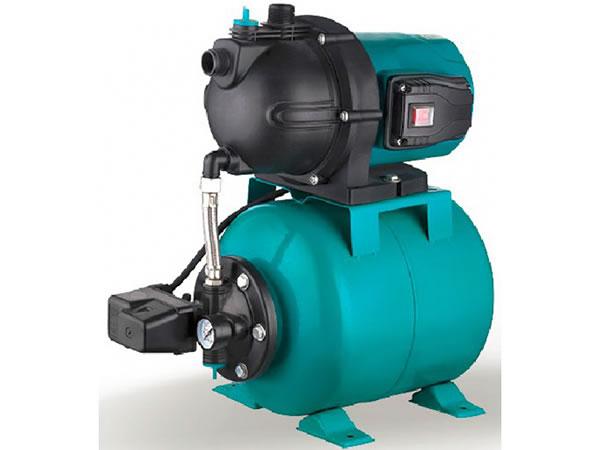

LKJ-PA Pressure Booster Pump
Application
- Pressure booster pump is designed to transfer clean water or other liquids with similar physical and chemical properties to water.
- Pressure booster pump allows fully automatic water supply in house and garden.
LKJ-PA Pressure Booster Pump Features
- Unique ergonomic design.
- Max. fluid temperature: +35℃.
- Max. suction: +8 m.
LKJ-PA Pressure Booster Pump Motor Features
- C & U bearing.
- Built-in thermal protector.
- Aluminum winding.
- Insulation class: F.
- Protection class: IPX4.
- Max. ambient temperature: +40℃.

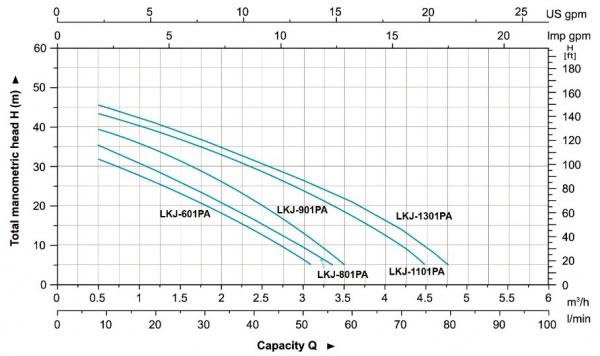

| MODEL | POWER | Q(m³/h) | 0 | 0.6 | 1.2 | 1.8 | 2.4 | 3 | 3.6 | 4.2 | 4.8 | 5.4 | 6 | ||
| W | HP | Q(l/min) | 0 | 10 | 20 | 30 | 40 | 50 | 60 | 70 | 80 | 90 | 100 | ||
| LKJ-601PA | 600 | 0.8 | H (m) | 35 | 31 | 25.5 | 20 | 14 | 8 | ˗ | ˗ | ˗ | ˗ | ˗ | |
| LKJ-801PA | 800 | 1.1 | 39 | 34.5 | 29 | 23 | 16.5 | 9.5 | ˗ | ˗ | ˗ | ˗ | ˗ | ||
| LKJ-901PA | 900 | 1.2 | 43 | 39 | 34 | 28 | 21 | 12.5 | 3 | ˗ | ˗ | ˗ | ˗ | ||
| LKJ-1101PA | 1100 | 1.5 | 46 | 43 | 39 | 35 | 30 | 24 | 17 | 8 | ˗ | ˗ | ˗ | ||
| LKJ-1301PA | 1300 | 1.75 | 48 | 45 | 41 | 36.5 | 31.5 | 26.5 | 21 | 14 | 8 | ˗ | ˗ | ||

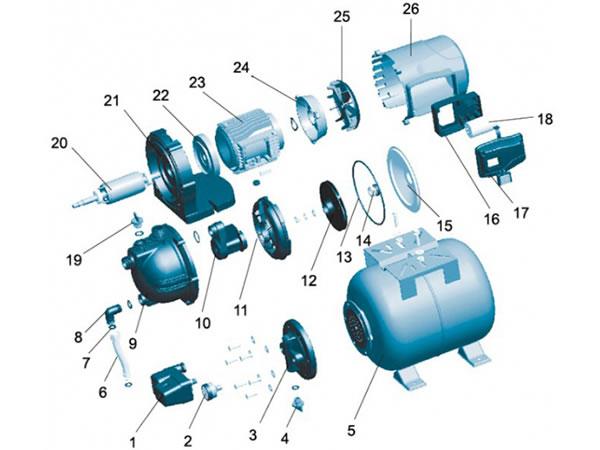

| No. | Part | Material | No. | Part | Material |
| 1 | Pressure Switch | 14 | Mechanical Seal | Carbon/Ceramic | |
| 2 | Pressure Gauge | 15 | Bracket Cover | AISI 304 | |
| 3 | Tank Cover | PA6 | 16 | Terminal Board | ABS |
| 4 | Drain Plug | PP | 17 | Switch Cover | ABS |
| 5 | Tank | 08F | 18 | Capacitor | |
| 6 | Flexible hose | 19 | Plug | PP | |
| 7 | Seal Washer | NBR | 20 | Rotor | |
| 8 | Elbow Connector | ABS | 21 | Motor Flange | PP |
| 9 | Pump Body | PP | 22 | Front Plate | ZL 102 |
| 10 | Ejector | PPO | 23 | Stator | |
| 11 | Diffuser | PPO | 24 | Rear Cover | ZL102 |
| 12 | Impeller | PPO | 25 | Handle | PP |
| 13 | O-ring | NBR | 26 | Fan | PP |
| 27 | Motor Cover | ABS |
LEO is a listed company in China (stock code 002131), LEO is a leading pressure booster pump manufacturer only offers high quality pumps. LEO has made millions of pumps now used in more than 140 countries, and is offering residential water pumps, centrifugal water pumps, deep well pumps with custom solutions. LEO pressure booster water pumps can meet you any requires in domestic pumping systems.
