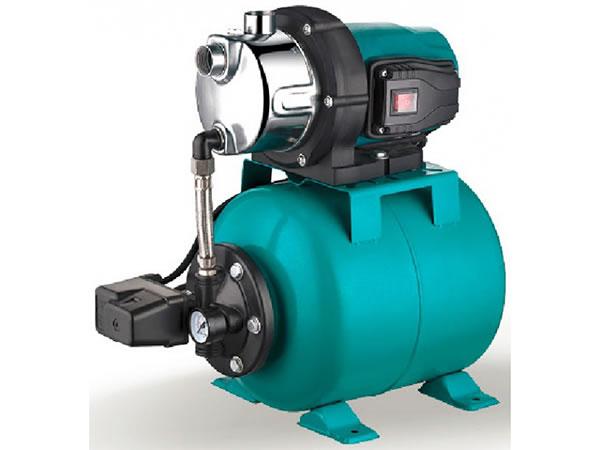

LKJ-SA Pressure Booster Pump
Application
- Pressure booster pump is designed to transfer clean water or other liquids with similar physical and chemical properties to water.
- Pressure booster pump allows fully automatic water supply in house and garden.
LKJ-SA Pressure Booster Pump Features
- Unique ergonomic design.
- Max. fluid temperature: +35℃.
- Max. suction: +8 m.
LKJ-SA Pressure Booster Pump Motor Features
- C & U bearing.
- Built-in thermal protector.
- Aluminum winding.
- Insulation class: F.
- Protection class: IPX4.
- Max. ambient temperature: +40℃.

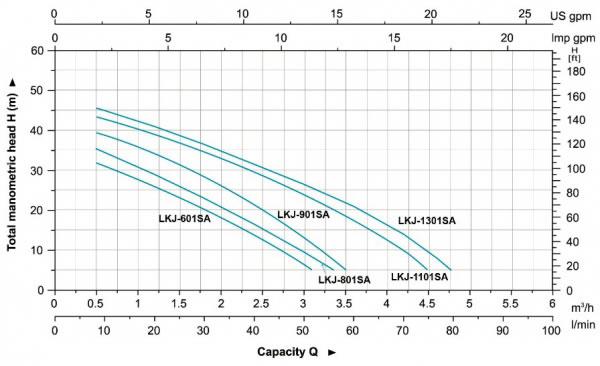

| MODEL | POWER | Q(m³/h) | 0 | 0.6 | 1.2 | 1.8 | 2.4 | 3 | 3.6 | 4.2 | 4.8 | 5.4 | 6 | ||
| W | HP | Q(l/min) | 0 | 10 | 20 | 30 | 40 | 50 | 60 | 70 | 80 | 90 | 100 | ||
| LKJ-601SA | 600 | 0.8 | H (m) | 35 | 31 | 25.5 | 20 | 14 | 8 | ˗ | ˗ | ˗ | ˗ | ˗ | |
| LKJ-801SA | 800 | 1.1 | 39 | 34.5 | 29 | 23 | 16.5 | 9.5 | ˗ | ˗ | ˗ | ˗ | ˗ | ||
| LKJ-901SA | 900 | 1.2 | 43 | 39 | 34 | 28 | 21 | 12.5 | 3 | ˗ | ˗ | ˗ | ˗ | ||
| LKJ-1101SA | 1100 | 1.5 | 46 | 43 | 39 | 35 | 30 | 24 | 17 | 8 | ˗ | ˗ | ˗ | ||
| LKJ-1301SA | 1300 | 1.75 | 48 | 45 | 41 | 36.5 | 31.5 | 26.5 | 21 | 14 | 8 | ˗ | ˗ | ||

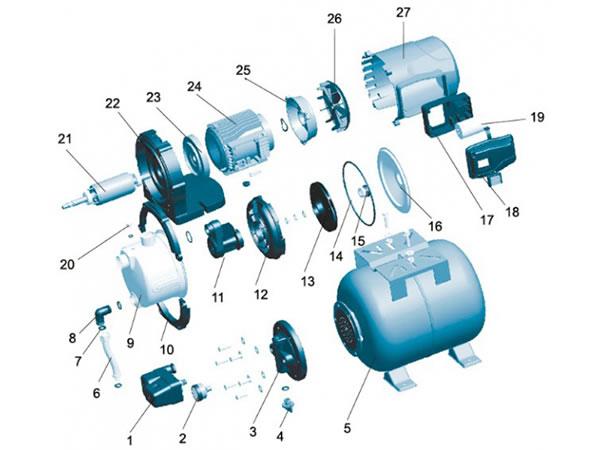

| No. | Part | Material | No. | Part | Material |
| 1 | Pressure Switch | 14 | Mechanical Seal | Carbon/Ceramic | |
| 2 | Pressure Gauge | 15 | Bracket Cover | AISI 304 | |
| 3 | Tank Cover | PA6 | 16 | Terminal Board | ABS |
| 4 | Drain Plug | PP | 17 | Switch Cover | ABS |
| 5 | Tank | 08F | 18 | Capacitor | |
| 6 | Flexible hose | 19 | Plug | PP | |
| 7 | Seal Washer | NBR | 20 | Rotor | |
| 8 | Elbow Connector | ABS | 21 | Motor Flange | PP |
| 9 | Pump Body | AISI 304 | 22 | Front Plate | ZL 102 |
| 10 | Frisket | PP | 23 | Stator | |
| 11 | Ejector | PPO | 24 | Rear Cover | ZL102 |
| 12 | Diffuser | PPO | 25 | Handle | PP |
| 13 | Impeller | PPO | 26 | Fan | PP |
| 14 | O-ring | NBR | 27 | Motor Cover | ABS |
