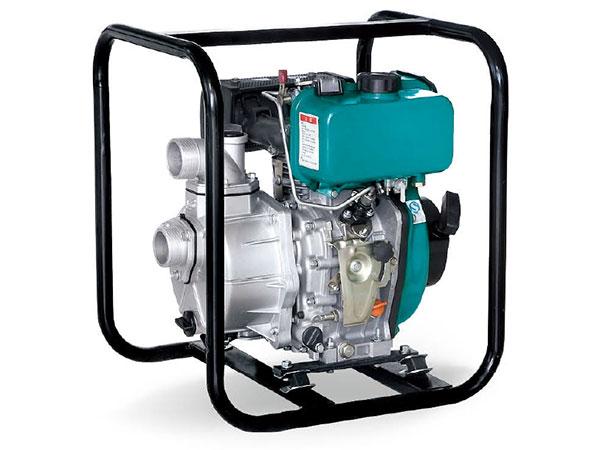

2" 3" Diesel Engine Water Pump
Application of 2” 3” Diesel Engine Water Pump
- transfer clean water with liquid temperature between 0℃ and 40℃.
- Applicable in water supply and drainage for factories, mines, municipal facilities as well as field irrigation
Features of 2” 3” Diesel Engine Water Pump
All new design with ergonomic feature
High lift series with LEO’s highly efficient hydraulic system
Reliable 4-stroke gasoline engine with low fuel consumption and high quality crankshaft
Portable, durable and compact pump frame
Durable sealing system with special mechanical seal
Optional outlet selection
Pump
Rust resistant cast iron impeller and diffuser
Max.suctiom:8 m, suck 5 m needs 120 s
Inlet/outlet:2"/3"
Engine
Single cylinder, 4-stroke,air-cooled
Max.power:3.8 HP
Rated speed:3600 rpm
Reliable engine equipped with low engine oil shut off system

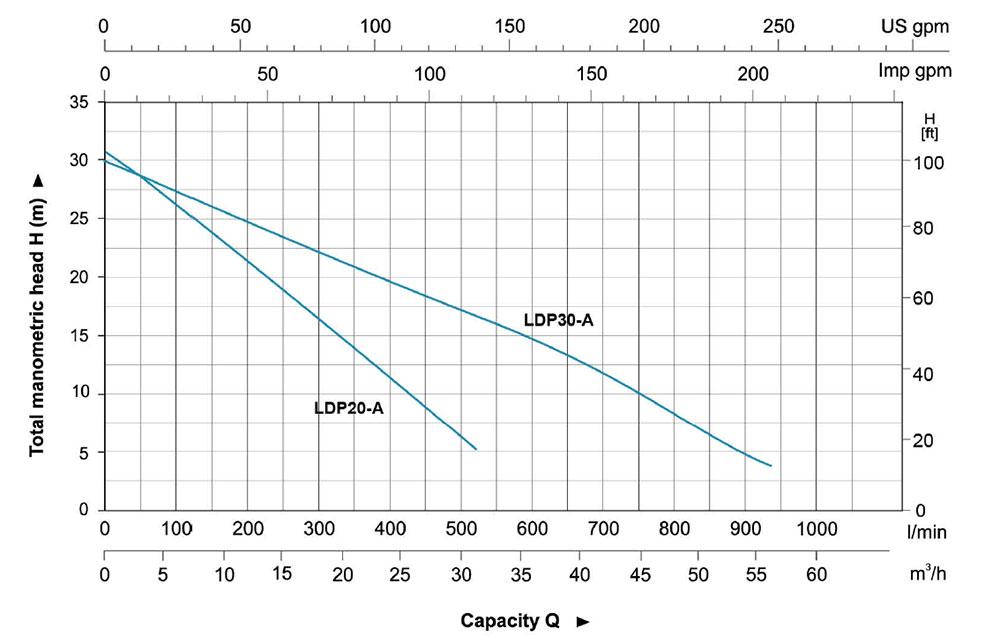

| Model | Power | Fuel tank | Engine oil | Displacement | Q(m³/h) | 0 | 5 | 10 | 15 | 20 | 25 | 30 | 35 | 40 | 45 | 50 | 55 | |
| HP | L | L | cc | Q(l/min) | 0 | 83.3 | 166.7 | 250 | 333.3 | 416.7 | 500 | 583.3 | 666.7 | 750 | 833.3 | 916.7 | ||
| LDP20-A | 3.8 | 2.5 | 0.6 | 219 | H(m) | 31 | 27 | 23 | 18.4 | 15 | 10 | 5.9 | - | - | - | - | - | |
| LDP30-A | 3.8 | 2.5 | 0.8 | 219 | 30 | 27 | 25.5 | 24.1 | 21.4 | 18.3 | 15.7 | 15.8 | 13.5 | 11 | 8 | 4.8 |

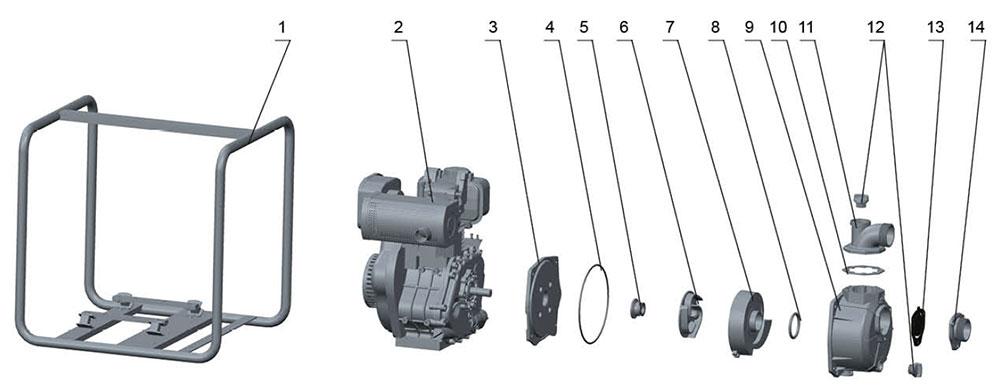

| NO. | Part | Material |
| 1 | Frame | Steel |
| 2 | Engine | |
| 3 | Pump cover | Aluminum |
| 4 | O-ring | NBR |
| 5 | Mechanical Seal | Carbon/Ceramic |
| 6 | Impeller | HT200 |
| 7 | Diffuser | HT200 |
| 8 | O-ring | NBR |
| 9 | Pump body | Aluminum |
| 10 | Seal | NBR |
| 11 | Outlet | Aluminum |
| 12 | Plug | ABS |
| 13 | Non-return Valve | NBR |
| 14 | Inlet | Aluminum |
LEO is a listed company in China (stock code 002131), LEO is a leading diesel water pump manufacturer only offers high quality diesel pumps. LEO has made millions of pumps now used in more than 140 countries. LEO diesel engine water pumps can meet you any requires in domestic pumping systems.
