Application
- The deep well jet pump is used to transfer clean water or other liquids similar to water in physical and chemical properties.
- Deep well jet pumps are suitable for lifting water from the well, garden irrigation, pressure boosting of running water, and supporting equipment.
Features:
- Cast iron pump body and support under special rust resistant treatment.
- Stainless steel impeller.
- AISI 304 shaft.
- Max. liquid temperature: +40℃.
- Max. suction: +40m.
Motor Features:
- C&U bearing.
- Motor with copper winding.
- Built-in thermal protector for single phase motor.
- Insulation class: F.
- Protection class: IPX4.
- Max. ambient temperature: +40℃.
MODEL | POWER | HS (m) | Q(l/min) | 0 | 2 | 4 | 6 | 8 | 10 | 12 | 14 | 16 | 18 | 20 | 22 | 24 | 26 | 28 | 30 | ||
KW | HP | ||||||||||||||||||||

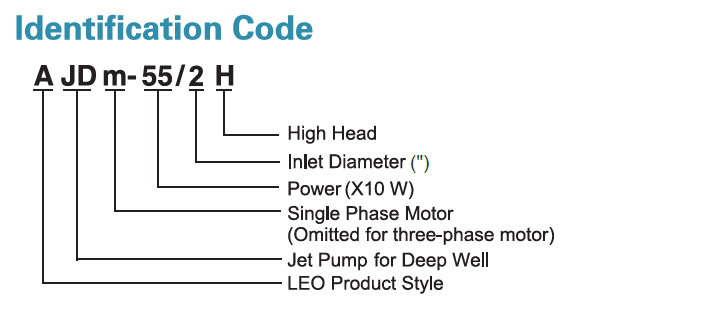

AJDm55/2h | 0.55 | 0.75 | 15 | H (M) | 37 | 33 | 30 | 27 | 25 | 23 | 21 | 19 | 17 | 15 | 13 | ˗ | ˗ | ˗ | ˗ | ||
AJDm75/2h | 0.75 | 1 | 47 | 43 | 40 | 37 | 34 | 31 | 29 | 27 | 25 | 23 | 21 | 19 | 17 | ˗ | ˗ | ˗ | |||
AJDm110/2h | 1.1 | 1.5 | 70 | 65 | 61 | 57 | 53 | 50 | 47 | 44 | 42 | 40 | 38 | 36 | 34 | 32 | 30 | 28 | |||
AJDm55/2h | 0.55 | 0.75 | 20 | 30 | 26 | 23 | 21 | 19 | 17 | 15 | 13 | ˗ | ˗ | ˗ | ˗ | ˗ | ˗ | ˗ | ˗ | |
|
AJDm75/2h | 0.75 | 1 | 39 | 36 | 33 | 30 | 27 | 24 | 22 | 20 | 18 | 17 | ˗ | ˗ | ˗ | ˗ | ˗ | ˗ | |||
AJDm110/2h | 1.1 | 1.5 | 62 | 57 | 53 | 49 | 46 | 43 | 40 | 38 | 36 | 34 | 32 | 28 | 28 | ˗ | ˗ | ˗ | |
||
AJDm55/2h | 0.55 | 0.75 | 25 | 23 | 19 | 16 | 14 | 12 | ˗ | ˗ | ˗ | ˗ | ˗ | ˗ | ˗ | ˗ | ˗ | ˗ | ˗ | |
|
AJDm75/2h | 0.75 | 1 | 32 | 29 | 26 | 23 | 20 | 18 | 16 | ˗ | ˗ | ˗ | ˗ | ˗ | ˗ | ˗ | ˗ | ˗ | |||
AJDm110/2h | 1.1 | 1.5 | 54 | 49 | 45 | 42 | 39 | 36 | 33 | 31 | 29 | 27 | ˗ | ˗ | ˗ | ˗ | ˗ | ˗ | |
||
AJDm55/2h | 0.55 | 0.75 | 30 | 16 | 13 | ˗ | ˗ | ˗ | ˗ | ˗ | ˗ | ˗ | ˗ | ˗ | ˗ | |
|||||
AJDm75/2h | 0.75 | 1 | 25 | 22 | 19 | 16 | ˗ | ˗ | ˗ | ˗ | ˗ | ˗ | ˗ | ˗ | ˗ | ˗ | ˗ | ˗ | |||
AJDm110/2h | 1.1 | 1.5 | 46 | 42 | 38 | 35 | 32 | 29 | 27 | ˗ | ˗ | ˗ | ˗ | ˗ | ˗ | ˗ | ˗ | ˗ | |
||
AJDm75/2h | 0.75 | 1 | 35 | 18 | 15 | ˗ | ˗ | ˗ | ˗ | ˗ | ˗ | ˗ | ˗ | ˗ | ˗ | ˗ | ˗ | ˗ | ˗ | |
|
AJDm110/2h | 1.1 | 1.5 | 39 | 35 | 31 | 28 | ˗ | ˗ | ˗ | ˗ | ˗ | ˗ | ˗ | ˗ | ˗ | ˗ | ˗ | ˗ | |||
AJDm110/2h | 1.1 | 1.5 | 40 | 32 | 28 | ˗ | ˗ | ˗ | ˗ | ˗ | ˗ | ˗ | ˗ | ˗ | ˗ | ˗ | ˗ | ˗ | ˗ | |
MODEL | POWER | HS (m) | Q(l/min) | 0 | 2 | 4 | 6 | 8 | 10 | 12 | 14 | 16 | 18 | 20 | 22 | 24 | 26 | 28 | 30 | 32 | 34 | ||
KW | HP | ||||||||||||||||||||||

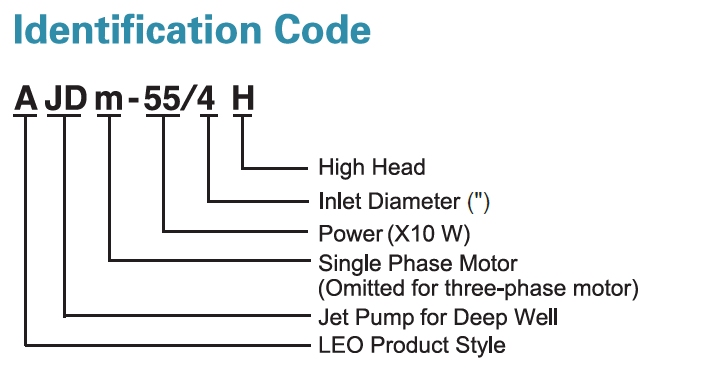

AJDm55/4H | 0.55 | 0.75 | 15 | H (M) | 39 | 35 | 33 | 29 | 27 | 25 | 23 | 21 | 19 | 17 | 15 | 14 | 13 | ˗ | ˗ | ˗ | ˗ | ˗ | |
AJDm75/4H | 0.75 | 1 | 50 | 46 | 43 | 40 | 37 | 34 | 32 | 30 | 28 | 26 | 24 | 22 | 20 | 19 | 18 | 17 | ˗ | ˗ | |||
AJDm110/4H | 1.1 | 1.5 | 75 | 70 | 66 | 62 | 58 | 55 | 52 | 49 | 47 | 45 | 43 | 41 | 39 | 37 | 35 | 33 | 31 | 29 | |||
AJDm55/4H | 0.55 | 0.75 | 20 | 32 | 28 | 25 | 23 | 21 | 19 | 17 | 15 | 13 | ˗ | ˗ | ˗ | ˗ | ˗ | ˗ | ˗ | ˗ | ˗ | |
|
AJDm75/4H | 0.75 | 1 | 42 | 39 | 36 | 33 | 30 | 27 | 25 | 23 | 21 | 20 | 18 | 17 | ˗ | ˗ | ˗ | ˗ | ˗ | ˗ | |
||
AJDm110/4H | 1.1 | 1.5 | 67 | 62 | 58 | 54 | 51 | 48 | 45 | 43 | 41 | 39 | 37 | 35 | 33 | 31 | 29 | 27 | ˗ | ˗ | |
||
AJDm55/4H | 0.55 | 0.75 | 25 | 25 | 21 | 18 | 16 | 14 | 12 | ˗ | ˗ | ˗ | ˗ | ˗ | ˗ | ˗ | ˗ | ˗ | ˗ | ˗ | ˗ | ||
AJDm75/4H | 0.75 | 1 | 35 | 32 | 29 | 26 | 23 | 21 | 19 | ˗ | ˗ | ˗ | ˗ | ˗ | ˗ | ˗ | ˗ | ˗ | ˗ | ˗ | |
||
AJDm110/4H | 1.1 | 1.5 | 59 | 54 | 50 | 47 | 44 | 41 | 38 | 36 | 34 | 32 | 30 | 28 | ˗ | ˗ | ˗ | ˗ | ˗ | ˗ | |
||
AJDm55/4H | 0.55 | 0.75 | 30 | 18 | 15 | 12 | ˗ | ˗ | ˗ | ˗ | ˗ | ˗ | ˗ | ˗ | ˗ | ˗ | ˗ | ˗ | ˗ | ˗ | ˗ | |
|
AJDm75/4H | 0.75 | 1 | 28 | 25 | 22 | 19 | 17 | ˗ | ˗ | ˗ | ˗ | ˗ | ˗ | ˗ | ˗ | ˗ | ˗ | ˗ | ˗ | ˗ | |||
AJDm110/4H | 1.1 | 1.5 | 51 | 47 | 43 | 40 | 37 | 34 | 32 | 30 | 28 | ˗ | ˗ | ˗ | ˗ | ˗ | ˗ | ˗ | ˗ | ˗ | |
||
AJDm75/4H | 0.75 | 1 | 35 | 21 | 18 | 16 | ˗ | ˗ | ˗ | ˗ | ˗ | ˗ | ˗ | ˗ | ˗ | ˗ | ˗ | ˗ | ˗ | ˗ | ˗ | ||
AJDm110/4H | 1.1 | 1.5 | 44 | 40 | 36 | 33 | 30 | 27 | ˗ | ˗ | ˗ | ˗ | ˗ | ˗ | ˗ | ˗ | ˗ | ˗ | ˗ | ˗ | |||
AJDm110/4H | 1.1 | 1.5 | 40 | 37 | 33 | 30 | 27 | ˗ | ˗ | ˗ | ˗ | ˗ | ˗ | ˗ | ˗ | ˗ | ˗ | ˗ | ˗ | ˗ | ˗ | |

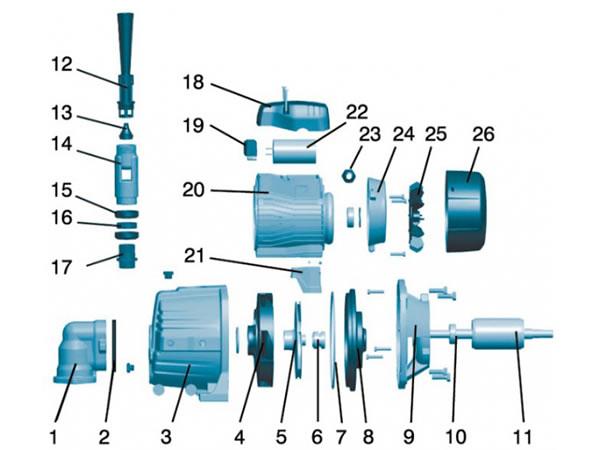

No. | Part | Material | No. | Part | Material | |
1 | Elbow | HT 200 | 14 | Ejector | HT 200 | |
2 | Gasket seal | NBR | 15 | Sealing cup | NBR | |
3 | Pump body | HT 200 | 16 | Cooper sheathing | HPb59-1 | |
4 | Diffuser | PPO | 17 | Cooper sleeve | HPb59-1 | |
5 | Impeller | AISI 304 | 18 | Terminal box | ABS | |
6 | Mechanical seal | Carbon/Ceramic | 19 | Terminal board | PC | |
7 | O-ring | NBR | 20 | Stator | ||
8 | Support cover | AISI 304/HT 200 | 21 | Motor foot | PA6 | |
9 | Support | ZL 102 | 22 | Capacitor | ||
10 | Bearing | 23 | Cable holder | |||
11 | Rotor | 24 | Rear cover | ZL 102 | ||
12 | Venturi tube | PPO | 25 | Fan | PP | |
13 | Nozzle | PPO | 26 | Fan cover | PP |
