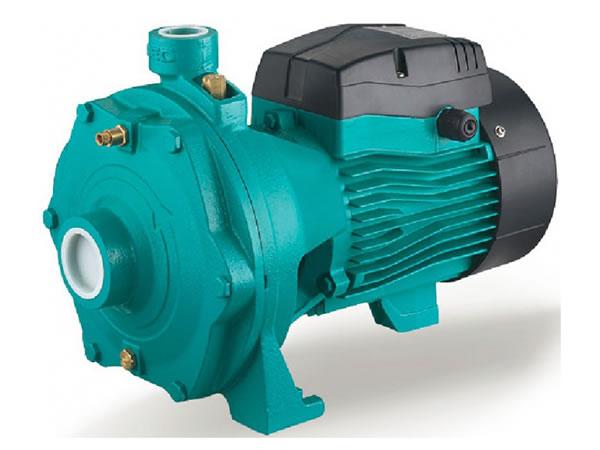

2ACm Two Stage Centrifugal Pump

2ACm Two Stage Centrifugal Pump

Centrifugal Pump Application
- Centrifugal pump can be used to transfer clean water or other liquids similar to water in physical and chemical properties.
- Suitable for industry use and urban water supply, pressure boosting for high buildings and fire fighting, garden irrigation, long-distance water transferring, heating ventilation and air controlling, circulation and pressure boosting for cold and hot water, and supporting equipment etc.

Centrifugal Pump Features
- Cast iron pump body and support under special anti-rust treatment.
- AISI 304 shaft.
- Max. liquid temperature: +40℃.
- Max. suction: +8m.

2ACm Two Stage Centrifugal Pump Motor Features
- C&U bearing.
- Motor with cooper winding.
- Built-in thermal protector for single phase motor.
- Insulation class: F.
- Protection class: IPX4.
- Max. ambient temperature: +40℃.

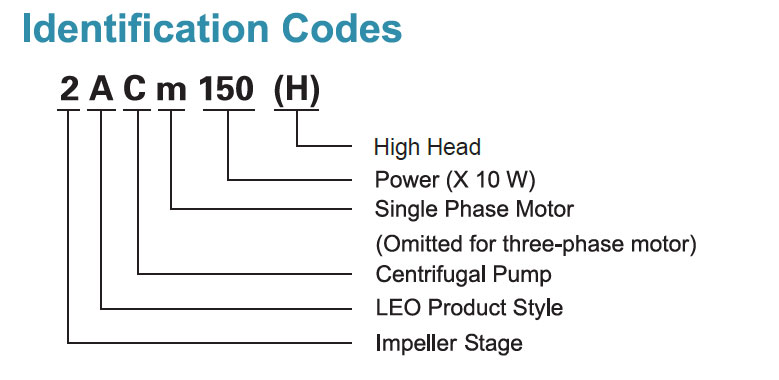

Identification Codes
Technical Data of 2ACm Two Stage Centrifugal Pump
MODEL POWER Q(m³/h) 0 1.2 1.8 2.4 3 3.6 4.2 4.8 5.4 6 6.6 7.2 8.4 9.6 10.8 12 15
Single Phase Three Phase KW HP Q(l/min) 0 20 30 40 50 60 70 80 90 100 110 120 140 160 180 220 250
2ACm75 2AC75 0.75 1 H(m) 45 42.5 40 37 33.5 28.5 23 15 ˗ ˗ ˗ ˗ ˗ ˗ ˗ ˗ ˗
2ACm110 2AC110 1.1 1.5 47 46 45 44 43 41.5 40 38 35.5 33 30.5 28 22 ˗ ˗ ˗ ˗
2ACm150 2AC150 1.5 2 57.5 55.5 54.5 53.5 52 50.5 49 47 44.5 41.5 38.5 35 28 20 ˗ ˗ ˗
2ACm150H 2AC150H 1.5 2 63.5 60.5 58.5 56.5 54 51.5 48.5 45 41 37.5 33.5 29 ˗ ˗ ˗ ˗ ˗
˗ 2AC220 2.2 3 65 63 62 61 59.5 58 56 54 51.5 49 46 43 36 28.5 20.5 ˗ ˗
2ACm300H ˗ 3 4 65 ˗ ˗ 62 61 60 59 58 56.5 55 53.5 52.5 48.5 44.5 40 35 21
˗ 2AC300H 3 4 70 ˗ ˗ 67 66 65 64 63 62 61 59.5 59 55.5 52 49 45 33
˗ 2AC400H 4 5.5 82 ˗ ˗ 79.5 78.5 77.5 76.5 75.5 74.5 73.5 72 71 67.5 64.5 61 57 45.5
2ACm Two Stage Centrifugal Pump Hydraulic Performance Curves

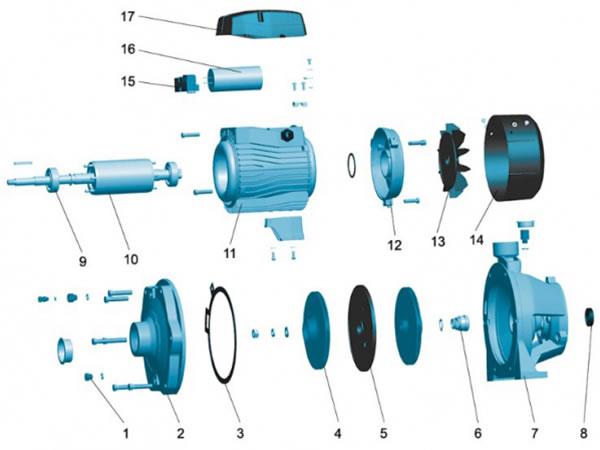

Material Table of 2ACm Two Stage Centrifugal Pump
No. Part Material
1 Drain Plug HPb59-1
2 Pump body HT 200
3 Gasket NBR
4 Impeller AISI 304/Brass HT200
5 Bracket Cover AISI 304
6 Mechanical seal Carbon/Ceramic
7 Support HT 200
8 Oil Seal
9 Bearing
10 Rotor
11 Stator
12 Rear cover ZL 102
13 Fan PP
14 Fan Cover PP
15 Terminal Board PC
16 Capacitor
17 Terminal Box ABS

LEO is a listed company in China (stock code 002131), LEO is a leading multistage centrifugal pump manufacturer only offers high quality pumps. LEO has made millions of pumps now used in more than 140 countries, and is offering residential water pumps, single phase pumps, three phase pumps, deep well water pumps with custom solutions. LEO multistage centrifugal water pumps can meet you any requires in domestic pumping systems.
