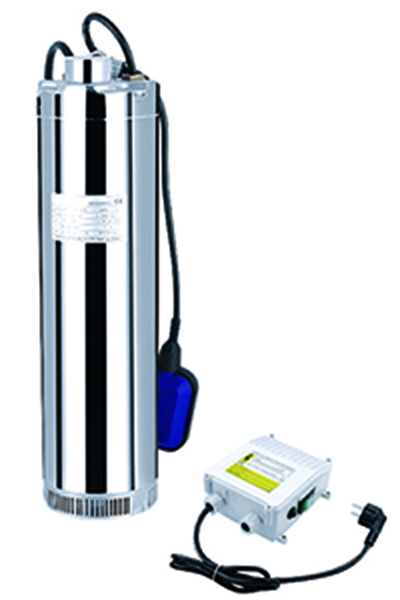

5DW Submersible Borehole Pump

5DW Submersible Borehole Pump

Applications
- For water supply from wells or reservoirs
- For domestic use, for civil and industrial applications
- For garden use and irrigation

Operation conditions for 5DW Submersible Borehole Pump
- Maximum fluid temperature up to +35°C
- Minimum immersion: 100 mm
- Maximum immersion: 20 m
- Minimum well diameter: 5"

5DW Submersible Borehole Pump Features
- Rewindable motor
- Single-Phase: 220 - 240V/50Hz
- Three-Phase: 380 - 415V /50Hz
- Cable length: 15 m
- Insulation class: F
- Protection class: IP68

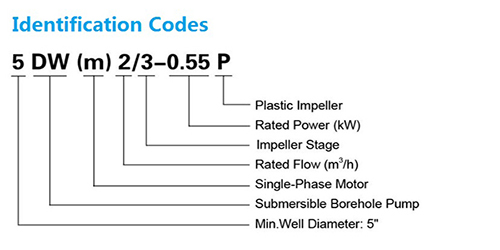

Identification Codes
Technical Data of 5DW-P Submersible Borehole Pump
Model P2 Delivery n≈2850 1/min
Q (m³/h) 0 1 1.5 2 2.5 3 3.5 4 4.5 5
1~
220-240V 		3~
380-415V 		Kw HP Q (l/min) 0 16.6 25 33.3 41.6 50 58.3 66.6 75 83.2
5DWm2/3-0.55P 5DW2/3-0.55P 0.55 0.75 H(m) 38 35 33 31 28.5 25 20.5 16.5 12 7
5DWm2/4-0.6P 5DW2/4-0.6P 0.6 0.8 49 46 43.5 40 37 32.5 27.5 22 16 10
5DWm2/5-0.75P 5DW2/5-0.75P 0.75 1 60 56 52.5 48.5 44 39 33 26 19 11
5DWm2/6-0.9P 5DW2/6-0.9P 0.9 1.2 73 68 64 60 54 48 40.5 32 23 14.5
5DWm2/7-1.1P 5DW2/7-1.1P 1.1 1.5 85 80 76 70 65 57 48 38.5 30 18
5DWm2/8-1.3P 5DW2/8-1.3P 1.3 1.75 97 91 87 80 74 65 55 44 32 20

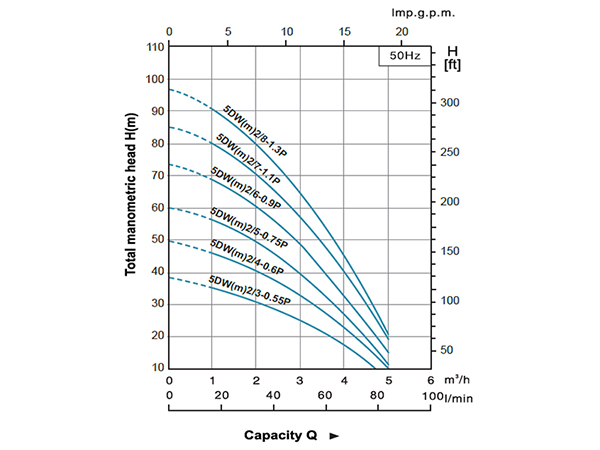

Hydraulic Performance Curves for 5DW-P Submersible Borehole Pump
Technical Data of 5DW2 Submersible Borehole Pump
Model P2 Delivery n≈2850 1/min
Q (m³/h) 0 1 1.5 2 2.5 3 3.5 4 4.5
1~
220-240V 		3~
380-415V 		Kw HP Q (l/min) 0 16.6 25 33.3 41.6 50 58.3 66.6 75
5DWm2/3-0.55 5DW2/3-0.55 0.55 0.75 H(m) 33 31 29.5 27.5 25 22 19 16 12
5DWm2/4-0.55 5DW2/4-0.55 0.55 0.75 44 41.5 39.5 36.5 33.5 29.5 25.5 21 16
5DWm2/5-0.75 5DW2/5-0.75 0.75 1 53 49.5 47 44 40 35 30 25 19
5DWm2/6-0.9 5DW2/6-0.9 0.9 1.2 65 61 58 54 49 43 37 30.5 23
5DWm2/7-0.9 5DW2/7-0.9 0.9 1.2 76.5 71 67.5 62.5 57.5 52.5 46 40 32.5
5DWm2/8-1.1 5DW2/8-1.1 1.1 1.5 87.5 81 77 71.5 66 60 52.5 46 37

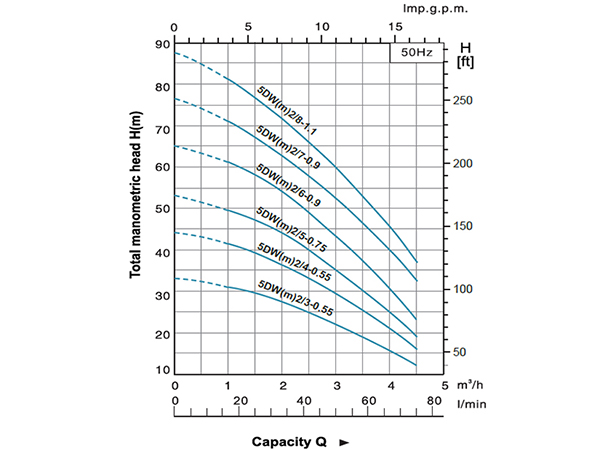

Hydraulic Performance Curves for 5DW2 Submersible Borehole Pump
Technical Data of 5DW4 Submersible Borehole Pump
Model P2 Delivery n≈2850 1/min
Q (m³/h) 0 2.5 3 3.5 4 4.5 5 6 7 8
1~
220-240V 		3~
380-415V 		Kw HP Q (l/min) 0 41.6 50 58.3 66.6 75 83.3 100 116 133
5DWm4/4-0.9 5DW4/4-0.9 0.9 1.2 H(m) 43 39 38 36.5 35 33 30 25.5 19.5 13
5DWm4/5-1.1 5DW4/5-1.1 1.1 1.5 53 48 46.5 45 43 40 37.5 32 24 15
5DWm4/6-1.1 5DW4/6-1.1 1.1 1.5 66 60 58 56 54 51.5 49 42 34 20.5
5DWm4/7-1.5 5DW4/7-1.5 1.5 2 77 70 68 65.5 63 60 57 49 39.5 24
5DWm4/8-1.5 5DW4/8-1.5 1.5 2 88 80 77.5 75 72 68.5 65 56 45 27.5

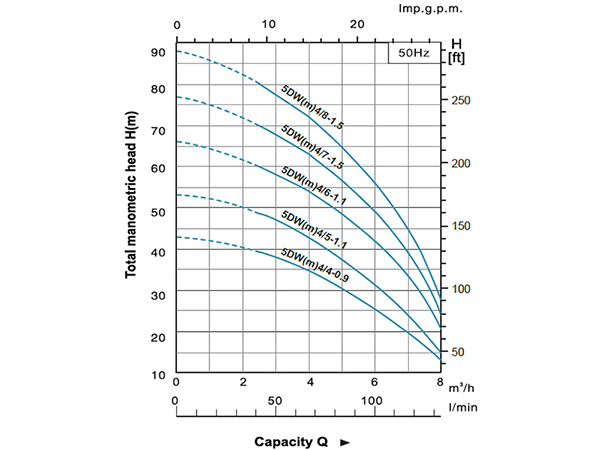

Hydraulic Performance Curves for 5DW4 Submersible Borehole Pump
Technical Data of 5DW8 Submersible Borehole Pump
Model P2 Delivery n≈2850 1/min
Q (m³/h) 0 5 6 7 8 9 10 11
1~
220-240V 		3~
380-415V 		Kw HP Q (l/min) 0 83.3 100 116 133 150 166 183
5DWm8/3-1.1 5DWm8/3-1.1 1.1 1.5 H(m) 34.5 29.5 28 26.5 24.5 22.5 20 16.5
5DWm8/4-1.5 5DWm8/4-1.5 1.5 2 45.5 39 37 35 35 30 26.5 22.5

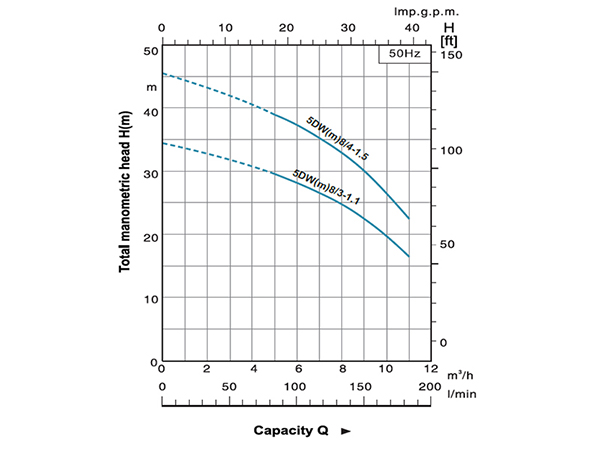

Hydraulic Performance Curves for 5DW8 Submersible Borehole Pump
Material Table for 5DW Submersible Borehole Pump
No Components Material
5DW-P 5DW
5 Upper cover Cast iron (Standard)
Cast Cu & AISI 304 Optional 		Cast Cu (Standard)
AISI 304 Optional
7 Bearing house
6 Up-bearing house Aluminum die casting
10 Seal bracket AISI 304 AISI 304
11 Motor casing AISI 304 AISI 304
12 Outer casing AISI 304 AISI 304
13 Pump casing AISI 304 AISI 304
14 Impeller PPO AISI 304
15 Diffuser PPO AISI 304
17 Suction interconnector AISI 304
17a Coupling ring PPO /
22 Seat assembly PPO /
25 Strainer AISI 304
27 Stator
28 Rotor
31a,b Bearing
32 Capacitor
34a Mechanical seal Carbon/Ceramic
34b Mechanical seal Sic/Sic
36a,b,c O-ring NBR
38 Shaft sleeve AISI 304
39 Bush bearing PU /
40 Clamp ring / Cast Cu
40a Sealing plate AISI 304 /
40b Locking plate AISI 304 /
41a Shim / AISI 304
41b Pressing block AISI 304 /
46 Circlips AISI 304 /
47 Cable H07RN-F
