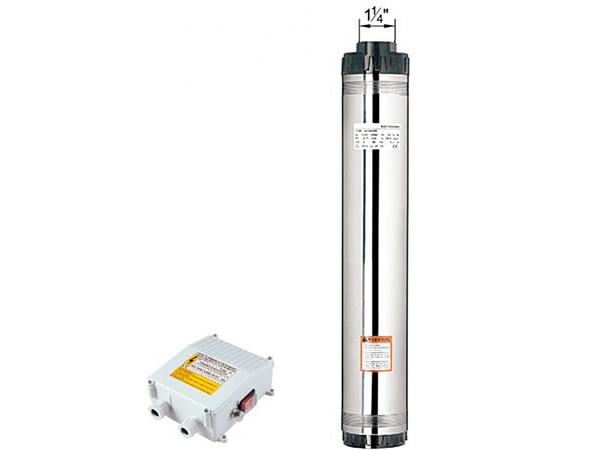

4DWP submersible borehole pump
Application
- For water supply from wells or reservoirs.
- For domestic use, for civil and industrial applications.
- For garden use and irrigation.
Operation conditions for 4DWP submersible borehole pump
- Maximum fluid temperature up to +35℃.
- Maximum sand content: 0.15%.
- Maximum immersion: 50 m.
- Minimum well diameter: 4".
4DWP submersible borehole pump Features
- Rewindable motor
- Three-phase: 380V-415V/50Hz.
- Single-phase: 220V-240V/50Hz.
- Equip with start control box or digital auto-control box.
- Pumps are designed by casing stressed.
- Curve tolerance according to ISO 2548.

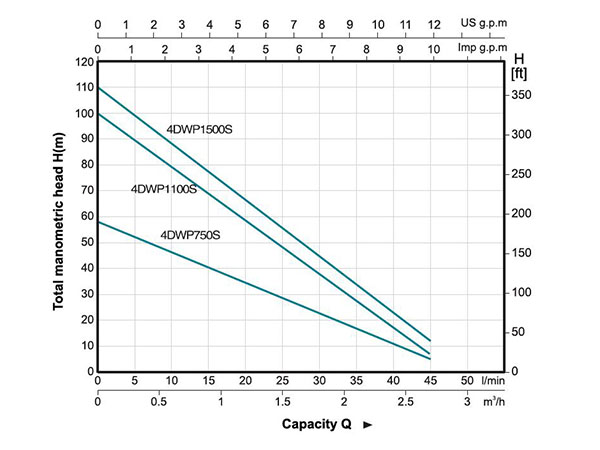

| Model | P2 | Delivery | ||||||||||||
| Q(m³/h) | 0 | 0.3 | 0.6 | 0.9 | 1.2 | 1.5 | 1.8 | 2.1 | 2.4 | 2.7 | ||||
| 1~ 220V/240V |
3~ 380V/415V |
kW | HP | Q(l/min) | 0 | 5 | 10 | 15 | 20 | 25 | 30 | 35 | 40 | 45 |
| 4DWPm750S |
4DWP750S |
0.75 | 1 | H(m) | 58 | 52 | 46 | 40 | 34 | 28 | 22 | 16 | 10 | 5 |
| 4DWPm1100S |
4DWP1100S |
1.1 | 1.5 | 100 | 89 | 79 | 69 | 59 | 48 | 38 | 28 | 17 | 7 | |
| 4DWPm1500S |
4DWP1500S |
1.5 | 2 | 110 | 99 | 88 | 78 | 67 | 56 | 45 | 34 | 23 | 12 | |
| Components | Material |
| delivery casing | AISI 201 SS |
| Suction lantern | AISI 201 SS |
| Diffuser | AISI 201 SS |
| Impeller | Cast-Cu ASTM 280 |
| Strainer | AISI 304 SS |
| Motor external casing | AISI 304 SS |
| Top chock | 1. Cast-Cu ASTM280 2. AISI 420 SS |
| Bottom support | AISI 304 SS |
| Mechanical seal | Carbon/ceramic |
| Shaft | AISI 304ss-C1045 |
| Bearing | NSK |
| Seal lubricant oil | Oil for food machinery and pharmaceutic use |
