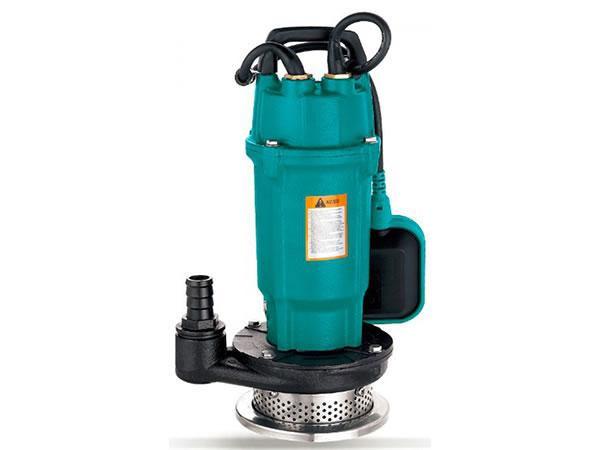

QDX Submersible Pump

QDX Submersible Pump

Application of QDX Submersible Pump
- Small electrical irrigation and drainage equipment.
- Urban well water pumping, field irrigation and drainage, garden irrigation and household water supply
- Drainage of industrial accumulated water, water supply and drainage for construction, livestock breeding

QDX Submersible Pump Motor Features
- Copper winding
- Built-in thermal protector
- Stainless steel welded shaft
- Insulation class: B
- Protection class: IP68

Features of QDX Submersible Pump
- Cast iron pump body under special anti-rust treatment.
- Max. immersion depth: 5m.
- Max. liquid temperature: +40℃
- Liquid pH value: 6.5-8

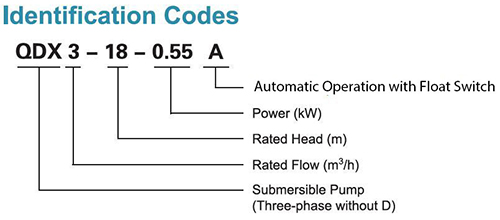

Identification Codes
Technical Data of QDX1.5, 3, 10, 15, 6 SubmersiblePump:
MODEL Q(m³/h) 0 1.5 3 4.5 6 7.5 9 10.5 12 13.5 15 16.5 18 19.5 21 22.5 24
Q(l/min) 0 25 50 75 100 120 150 175 200 225 250 275 300 325 350 375 400
QDX1.5-15-0.37A H (m) 16 15.6 14.2 11.8 8 3.9 ˗ ˗ ˗ ˗ ˗ ˗ ˗ ˗ ˗ ˗ ˗
QDX3-18-0.55A 19.2 19.2 18.5 17.5 15.5 13.2 10 7 3.7 ˗ ˗ ˗ ˗ ˗ ˗ ˗ ˗
QDX10-10-0.55A 15.3 15.2 15 14.8 14.4 13.5 12.5 11.3 10 8.5 6.3 3.8 ˗ ˗ ˗ ˗ ˗
QDX15-7-0.55A 8.6 8.5 8.4 8.3 8.2 8 7.8 7.6 7.4 7.2 6.8 6.3 5.8 5.2 4.5 3.8 3
QDX1.5-32-0.75A 32.5 31.5 28.5 24.5 20 15.5 8.5 1 ˗ ˗ ˗ ˗ ˗ ˗ ˗ ˗ ˗
QDX6-18-0.75A 19.5 19.2 19 18.6 18 16.2 16.2 14.7 12.8 11 8.6 4.2 ˗ ˗ ˗ ˗ ˗
QDX10-16-0.75A
19.5 19.2 19 18.6 18 16.2 16.2 14.7 12.8 11 8.6 4.2 ˗

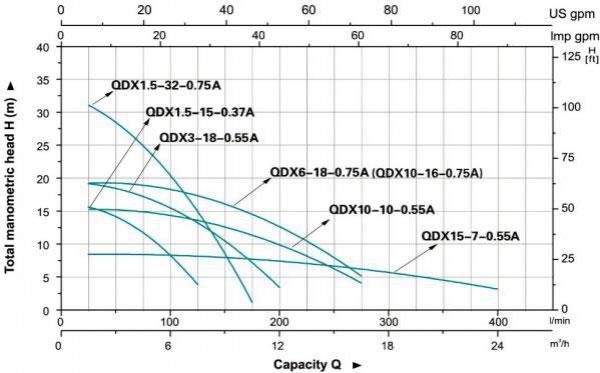

Hydraulic Performance Curves
Hydraulic Performance Curves
Technical Data of QDX15, 25, 10, 40 Submersible Pump:
MODEL Q(m³/h) 0 1.5 3 4.5 6 7.5 9 10.5 12 13.5 15 16.5 18 19.5 21 22.5 24 25.5 27 28.5 30 31.5
Q(l/min) 0 25 50 75 100 120 150 175 200 225 250 275 300 325 350 375 400 425 450 475 500 525
QDX15-10-0.75A H (m) 11 10.9 10.8 10.7 10.6 10.5 10.4 10.3 10.2 10.1 10 9.6 9.2 8.5 7.6 6.5 5.6 4.7 3.8 2.7 ˗ ˗
QDX25-6-0.75A 9.3 9.2 9.1 9 8.9 8.7 8.5 8.3 8 7.7 7.5 7.2 6.8 6.6 6.4 6.2 6 5.8 4.8 4 2.6 1.5
QDX10-18-1.1A 25.8 25.5 25 24.6 24 22.8 21.2 18.5 16 13.2 9 4 ˗ ˗ ˗ ˗ ˗ ˗ ˗ ˗ ˗ ˗
QDX15-14-1.1A 15 14.9 14.8 14.7 14.6 14.5 14.3 14.2 14 13.9 13.8 13.2 12.5 11.5 10.6 9.5 8 6.7 5.5 4.4 3.1 ˗
QDX40-5.5-1.1A 6.1 6.2 6.3 6.4 6.5 6.5 6.7 6.8 6.7 6.7 6.65 6.6 6.6

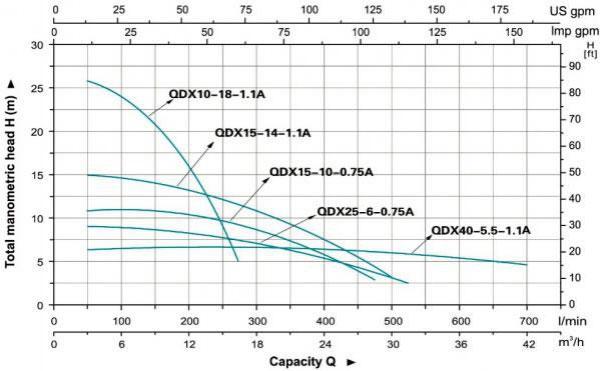

Hydraulic Performance Curves
Hydraulic Performance Curves

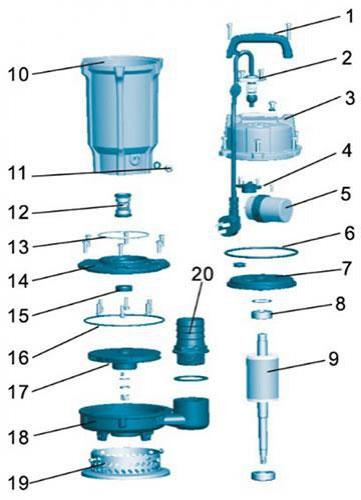

Material Table of QDX1.5, 3, 10, 15, 6 Submersible Pump
No. Part Material
1 Handle PP
2 Cable
3 Top Cover HT200
4 Protector
5 Capacitor
6 O-ring NBR
7 Upper Cover HT200
8 Bearing
9 Rotor
10 Stator
11 Oil Injection Screw
12 Mechanical Seal Carbon/ceramic
13 O-ring NBR
14 Cover Of Oil Cylinder HT200
15 Oil Seal
16 O-ring NBR
17 Impeller PPO ZL 102
18 Pump Body HT200
19 Filter Screen Stainless Steel
20 Outlet Connector PP
Material Table of QDX1.5, 3, 10, 15, 6 Submersible Pump
