QDX-LA Submersible Pump

QDX Submersible Pump

Application of QDX-LA Submersible Pump
- Rural wells water pumping.
- Farming irrigation and drainage.
- Garden watering and family households.
- Construction, aquaculture, fish ponds, etc.

Features of QDX-LA Submersible Pump
1. Cast iron pump body, aluminum motor casing
2. Copper winding
3. Built-in thermal protector
4. Stainless steel shaft
5. Double-end Mechanical seal
6. Stainless steel filter

PUMP:
1. Max. immersion depth: 5 m
2. Max. liquid temperature: +40℃
3. Liquid PH level from 6.5 - 8
4. Maximum sand content is 0.1%. passage of suspended solids up to 0.2mm.
5. Insulation class: F

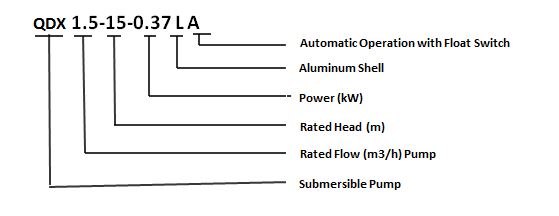

Identification Codes

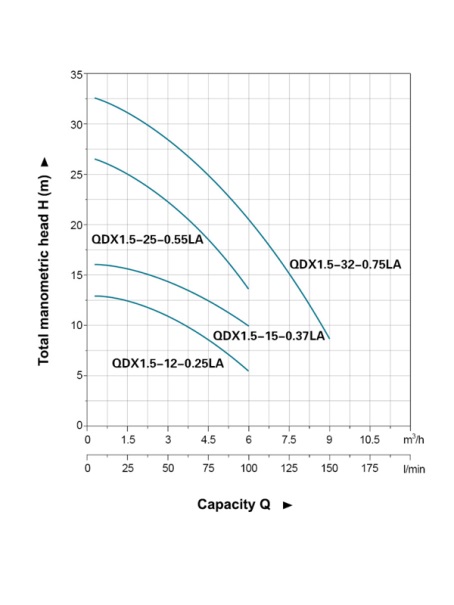

Technical Data of QDX1.5-LA Submersible Pump
Model Q(m³/h) 0 1.5 3 4.5 6 7.5 9 10.5 12 13.5 15 16.5 18 19.5 21 22.5 24 25.5 27 28.5 30
Q(l/min) 0 25 50 75 100 125 150 175 200 225 250 275 300 325 350 375 400 425 450 475 500
QDX1.5-12-0.25LA H(m) 13 12 11 9 5.5 - - - - - - - - - - - - - - - -
QDX1.5-15-0.37LA 16 15.6 14.2 12.3 9.8 - - - - - - - - - - - - - - - -
QDX1.5-25-0.55LA 26.5 25 22.5 18 14 - - - - - - - - - - - - - - - -
QDX1.5-32-0.75LA 32.5 31.5 28.5 24.5 20 15.5 8.5 - - - - - - - - - - - - - -
Technical Data of QDX1.5-LA Submersible Pump
Identification Codes
Technical Data of QDX3-LA、QDX6-LA、QDX10-LA Submersible Pump
Model Q(m³/h) 0 1.5 3 4.5 6 7.5 9 10.5 12 13.5 15 16.5 18 19.5 21 22.5 24 25.5 27 28.5 30
Q(l/min) 0 25 50 75 100 125 150 175 200 225 250 275 300 325 350 375 400 425 450 475 500
QDX3-18-0.55LA H(m) 19.2 19.1 18.5 17.5 15.5 13.2 10 7 3.7 - - - - - - - - - - - -
QDX6-18-0.75LA 19.5 19.2 19 18.6 18 17 16.3 15.6 13.7 11.8 9 7.5 - - - - - - - - -
QDX10-16-0.75LA 19.5 19.2 19 18.6 18 17 16.3 15.6 13.7 11.8 9 7.5 - - - - - - - - -

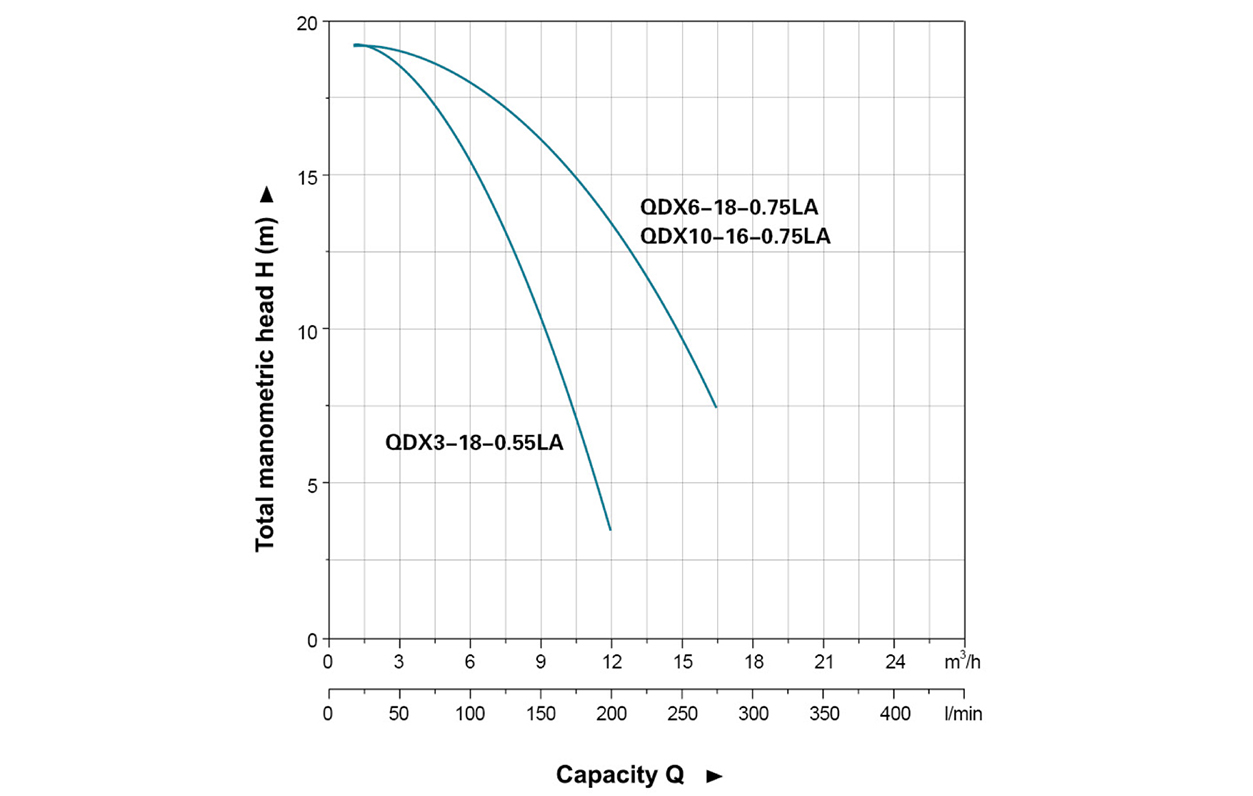

Hydraulic Performance Curves
Identification Codes
Technical Data of QDX10-LA Submersible Pump
Model Q(m³/h) 0 1.5 3 4.5 6 7.5 9 10.5 12 13.5 15 16.5 18 19.5 21 22.5 24 25.5 27 28.5 30
Q(l/min) 0 25 50 75 100 125 150 175 200 225 250 275 300 325 350 375 400 425 450 475 500
QDX10-10-0.55LA H(m) 13.2 13.2 13.2 13 12.7 12 11 10 9.2 7.5 6 - - - - - - - - - -

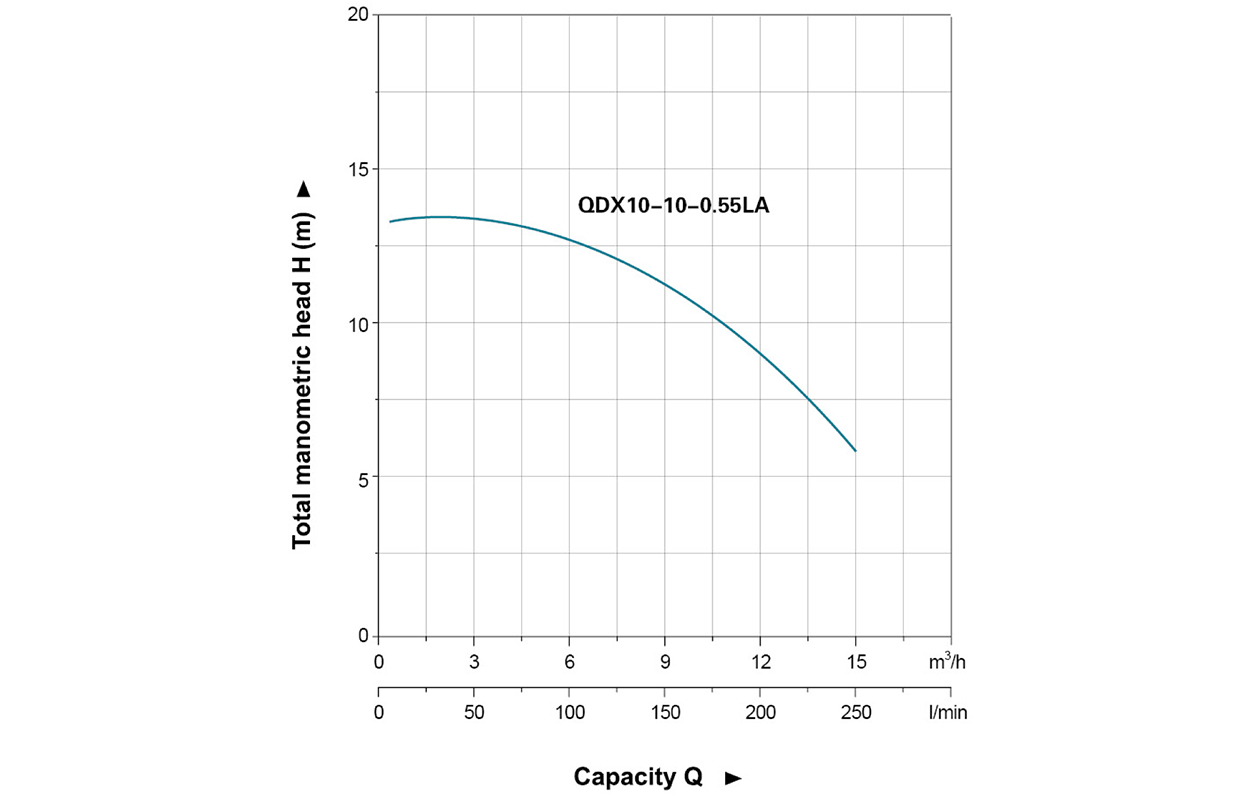

Hydraulic Performance Curves
Identification Codes

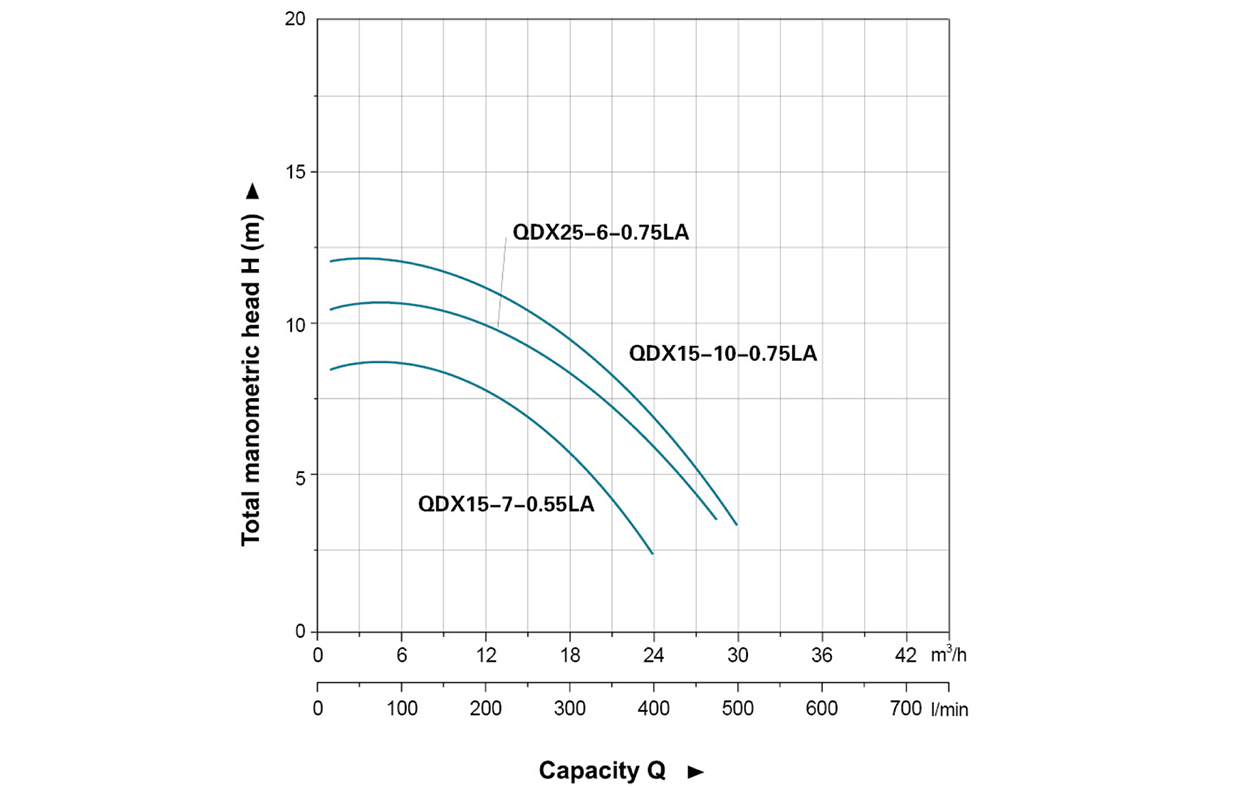

Technical Data of QDX15-LA、QDX20-LA Submersible Pump
Model Q(m³/h) 0 1.5 3 4.5 6 7.5 9 10.5 12 13.5 15 16.5 18 19.5 21 22.5 24 25.5 27 28.5 30
Q(l/min) 0 25 50 75 100 125 150 175 200 225 250 275 300 325 350 375 400 425 450 475 500
QDX15-7-0.55LA H(m) 8.6 8.5 8.5 8.4 8.3 8.3 8.3 8.2 7.8 7.4 7 6.3 5.8 4.9 4.1 3.2 2.2 - - - -
QDX15-10-0.75LA 12.1 12.1 12 11.9 11.8 11.7 11.6 11.4 11.2 10.9 10.6 10 9.5 8.9 8.2 7.7 7.2 5.7 4.9 4.2 3.4
QDX25-6-0.75LA 10.6 10.6 10.5 10.4 10.4 10.3 10.1 9.9 9.7 9.5 9.3 9 8.6 8.2 7.2 6.7 6.1 5.5 4.3 3.2 -
Identification Codes

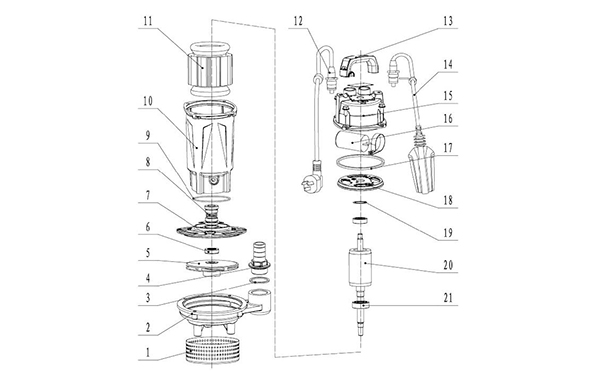

Material Table of QDX-LA Submersible Pump
Identification Codes
No Part Material
1 Filter Stainless steel
2 Bearing HT200
3 O-ring NBR
4 Outlet connector HT200
5 Impeller PPO
6 Oil seal
7 Cover of cylinder ADC 12(0.25/0.37kW)
HT200(0.55/0.75kW)
8 Mechanical seal
9 O-ring NBR
10 Motor casing ADC12
11 Stator
12 Cable assembly
13 Handle PPO
14 Float switch
15 Top cover ADC12
16 Capacitor
17 O-ring NBR
18 End cover ADC12
19 Wave spring pad
20 Rotor
21 Bearing

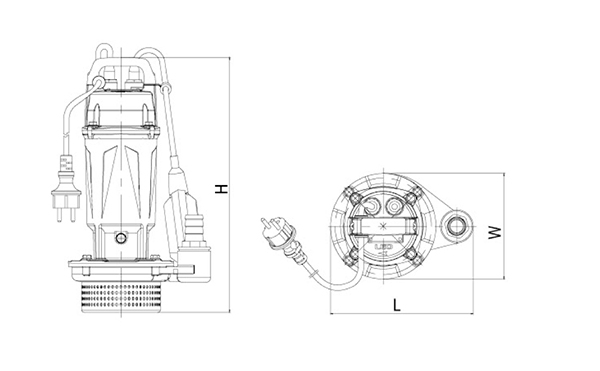

Dimension
Hydraulic Performance Curves
Dimension
Model Outlet L
(mm) 		W
(mm) 		H
(mm)
QDX1.5-12-0.25LA φ25 195 144 348
QDX1.5-15-0.37LA φ25 195 144 348
QDX1.5-25-0.55LA φ25 245 194 385
QDX1.5-32-0.75LA φ25 245 194 385
QDX3-18-0.55LA φ25 205 159 379
QDX6-18-0.75LA φ25 221 159 382
QDX10-16-0.75LA φ25 221 159 382
QDX10-10-0.55LA φ40 215 152 375
QDX15-7-0.55LA φ50 237 160 396
QDX15-10-0.75LA φ65 237 166 396
QDX25-6-0.75LA φ80 248 162 396
Package Information
Material Table of QDX1.5, 3, 10, 15, 6 Submersible Pump
Model GW
(kg) 		L
(mm) 		W
(mm) 		H
(mm) 		Quantity
(PCS/20'TEU)
QDX1.5-12-0.25LA 7.5 392 224 180 1788
QDX1.5-15-0.37LA 7.5 392 224 180 1788
QDX1.5-25-0.55LA 11 435 250 235 1062
QDX1.5-32-0.75LA 12 435 250 235 1062
QDX3-18-0.55LA 10.5 415 230 205 1388
QDX6-18-0.75LA 11.5 415 230 205 1388
QDX10-16-0.75LA 11.5 415 230 205 1388
QDX10-10-0.55LA 10.5 415 230 205 1388
QDX15-7-0.55LA 11 420 280 215 1132
QDX15-10-0.75LA 12.5 420 280 215 1132
QDX25-6-0.75LA 13 420 280 215 1132
