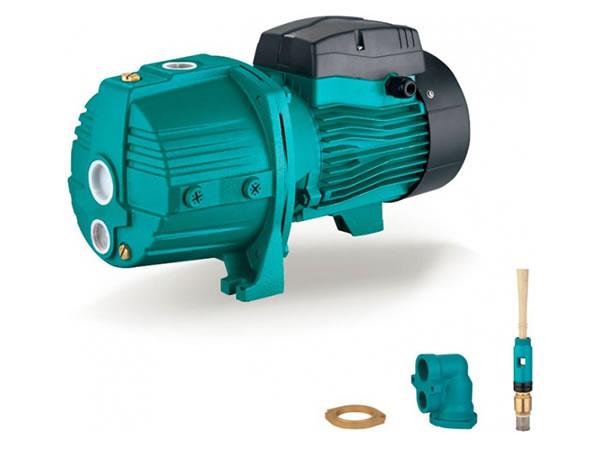

AJDm2H Type Deep Well Jet Pump

 AJDm2H Type Deep Well Jet Pump

AJDm2H Type Deep Well Jet Pump Application
- Deep well jet pump could be used to transfer clean water or other liquids similar to water in physical and chemical properties.
- Deep well jet pumps are suitable for lifting water from the well, garden irrigation, pressure boosting of running water, and supporting equipment etc.

AJDm2H Type Deep Well Jet Pump Features
- Cast iron pump body and support under special anti-rust treatment.
- Stainless steel impeller.
- AISI 304 shaft.
- Max. liquid temperature: +40℃.
- Max. suction: +40m.

AJDm2H Type Deep Well Jet Pump Motor Features
- C&U bearing.
- Motor with copper winding.
- Built-in thermal protector for single phase motor.
- Insulation class: F.
- Protection class: IPX4.
- Max. ambient temperature: +40℃.

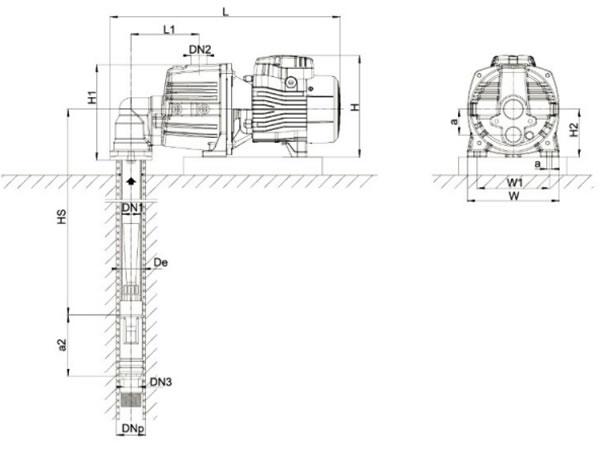

Technical Data of AJDm2H Type Deep Well Jet Pump
MODEL POWER HS (m) Q(l/min) 0 2 4 6 8 10 12 14 16 18 20 22 24 26 28 30
KW HP
AJDm55/2h 0.55 0.75 15 H (M) 37 33 30 27 25 23 21 19 17 15 13 ˗ ˗ ˗ ˗
AJDm75/2h 0.75 1 47 43 40 37 34 31 29 27 25 23 21 19 17 ˗ ˗ ˗
AJDm110/2h 1.1 1.5 70 65 61 57 53 50 47 44 42 40 38 36 34 32 30 28
AJDm55/2h 0.55 0.75 20 30 26 23 21 19 17 15 13 ˗ ˗ ˗ ˗ ˗ ˗ ˗ ˗
AJDm75/2h 0.75 1 39 36 33 30 27 24 22 20 18 17 ˗ ˗ ˗ ˗ ˗ ˗
AJDm110/2h 1.1 1.5 62 57 53 49 46 43 40 38 36 34 32 28 28 ˗ ˗ ˗
AJDm55/2h 0.55 0.75 25 23 19 16 14 12 ˗ ˗ ˗ ˗ ˗ ˗ ˗ ˗ ˗ ˗ ˗
AJDm75/2h 0.75 1 32 29 26 23 20 18 16 ˗ ˗ ˗ ˗ ˗ ˗ ˗ ˗ ˗
AJDm110/2h 1.1 1.5 54 49 45 42 39 36 33 31 29 27 ˗ ˗ ˗ ˗ ˗ ˗
AJDm55/2h 0.55 0.75 30 16 13 ˗ ˗ ˗ ˗ ˗ ˗ ˗ ˗ ˗ ˗
AJDm75/2h 0.75 1 25 22 19 16 ˗ ˗ ˗ ˗ ˗ ˗ ˗ ˗ ˗ ˗ ˗ ˗
AJDm110/2h 1.1 1.5 46 42 38 35 32 29 27 ˗ ˗ ˗ ˗ ˗ ˗ ˗ ˗ ˗
AJDm75/2h 0.75 1 35 18 15 ˗ ˗ ˗ ˗ ˗ ˗ ˗ ˗ ˗ ˗ ˗ ˗ ˗ ˗
AJDm110/2h 1.1 1.5 39 35 31 28 ˗ ˗ ˗ ˗ ˗ ˗ ˗ ˗ ˗ ˗ ˗ ˗
AJDm110/2h 1.1 1.5 40 32 28 ˗ ˗ ˗ ˗ ˗ ˗ ˗ ˗ ˗ ˗ ˗ ˗ ˗ ˗

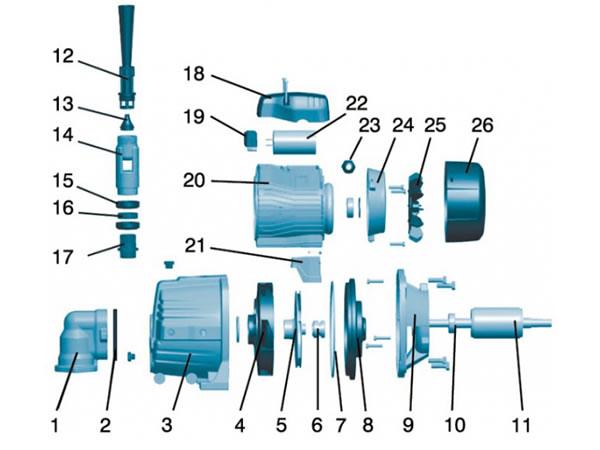

Material Table of AJDm2H Type Deep Well Jet Pump
No. Part Material No. Part Material
1 Elbow HT 200 14 Ejector HT 200
2 Gasket seal NBR 15 Sealing cup NBR
3 Pump body HT 200 16 Cooper sheathing HPb59-1
4 Diffuser PPO 17 Cooper sleeve HPb59-1
5 Impeller AISI 304 18 Terminal box ABS
6 Mechanical seal Carbon/Ceramic 19 Terminal board PC
7 O-ring NBR 20 Stator
8 Support cover AISI 304/HT 200 21 Motor foot PA6
9 Support ZL 102 22 Capacitor
10 Bearing
23 Cable holder
11 Rotor
24 Rear cover ZL 102
12 Venturi tube PPO 25 Fan PP
13 Nozzle PPO 26 Fan cover PP
