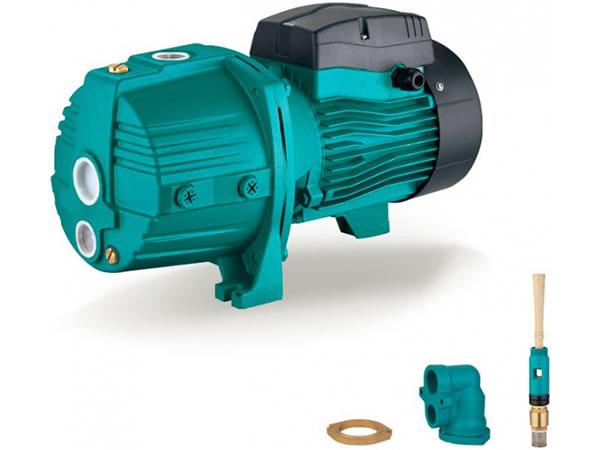

AJDm4H Type Deep Well Jet Pump

AJDm4H Type Deep Well Jet Pump

AJDm4H Type Deep Well Jet Pump Application
- Deep well jet pump could be used to transfer clean water or other liquids similar to water in physical and chemical properties.
- Deep well jet pumps are suitable for lifting water from the well, garden irrigation, pressure boosting of running water, and supporting equipment etc.

AJDm4H Type Deep Well Jet Pump Features
- Cast iron pump body and support under special anti-rust treatment.
- Stainless steel impeller.
- AISI 304 shaft.
- Max. liquid temperature: +40℃.
- Max. suction: +40m.

AJDm4H Type Deep Well Jet Pump Motor Features
- C&U bearing.
- Motor with copper winding.
- Built-in thermal protector for single phase motor.
- Insulation class: F.
- Protection class: IPX4.
- Max. ambient temperature: +40℃.

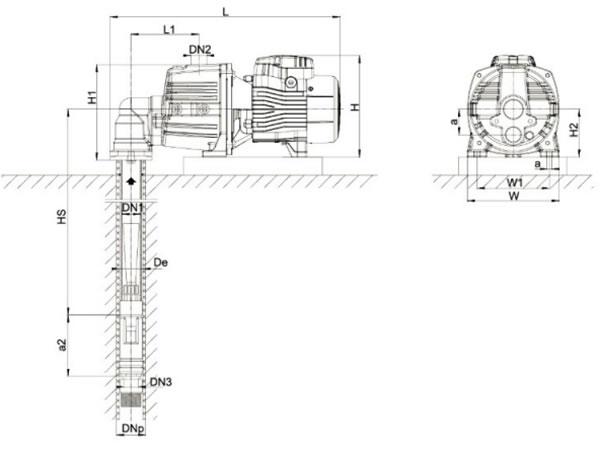

Technical Data of AJDm4H Type Deep Well Jet Pump
MODEL POWER HS (m) Q(l/min) 0 2 4 6 8 10 12 14 16 18 20 22 24 26 28 30 32 34
KW HP
AJDm55/4H 0.55 0.75 15 H (M) 39 35 33 29 27 25 23 21 19 17 15 14 13 ˗ ˗ ˗ ˗ ˗
AJDm75/4H 0.75 1 50 46 43 40 37 34 32 30 28 26 24 22 20 19 18 17 ˗ ˗
AJDm110/4H 1.1 1.5 75 70 66 62 58 55 52 49 47 45 43 41 39 37 35 33 31 29
AJDm55/4H 0.55 0.75 20 32 28 25 23 21 19 17 15 13 ˗ ˗ ˗ ˗ ˗ ˗ ˗ ˗ ˗
AJDm75/4H 0.75 1 42 39 36 33 30 27 25 23 21 20 18 17 ˗ ˗ ˗ ˗ ˗ ˗
AJDm110/4H 1.1 1.5 67 62 58 54 51 48 45 43 41 39 37 35 33 31 29 27 ˗ ˗
AJDm55/4H 0.55 0.75 25 25 21 18 16 14 12 ˗ ˗ ˗ ˗ ˗ ˗ ˗ ˗ ˗ ˗ ˗ ˗
AJDm75/4H 0.75 1 35 32 29 26 23 21 19 ˗ ˗ ˗ ˗ ˗ ˗ ˗ ˗ ˗ ˗ ˗
AJDm110/4H 1.1 1.5 59 54 50 47 44 41 38 36 34 32 30 28 ˗ ˗ ˗ ˗ ˗ ˗
AJDm55/4H 0.55 0.75 30 18 15 12 ˗ ˗ ˗ ˗ ˗ ˗ ˗ ˗ ˗ ˗ ˗ ˗ ˗ ˗ ˗
AJDm75/4H 0.75 1 28 25 22 19 17 ˗ ˗ ˗ ˗ ˗ ˗ ˗ ˗ ˗ ˗ ˗ ˗ ˗
AJDm110/4H 1.1 1.5 51 47 43 40 37 34 32 30 28 ˗ ˗ ˗ ˗ ˗ ˗ ˗ ˗ ˗
AJDm75/4H 0.75 1 35 21 18 16 ˗ ˗ ˗ ˗ ˗ ˗ ˗ ˗ ˗ ˗ ˗ ˗ ˗ ˗ ˗
AJDm110/4H 1.1 1.5 44 40 36 33 30 27 ˗ ˗ ˗ ˗ ˗ ˗ ˗ ˗ ˗ ˗ ˗ ˗
AJDm110/4H 1.1 1.5 40 37 33 30 27 ˗ ˗ ˗ ˗ ˗ ˗ ˗ ˗ ˗ ˗ ˗ ˗ ˗ ˗

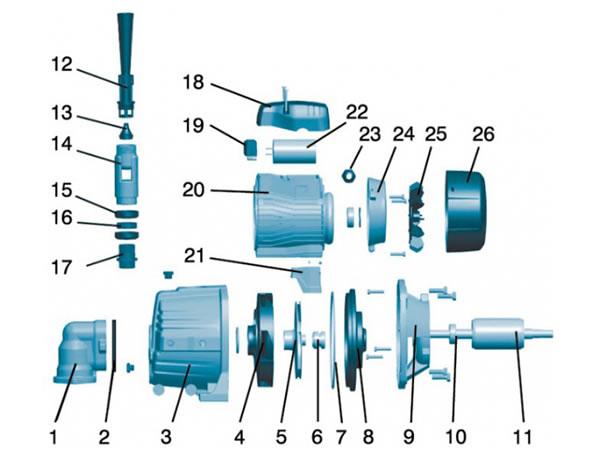

Material Table of AJDm4H Type Deep Well Jet Pump
No. Part Material No. Part Material
1 Pump body HT 200 1 Ejector HT 200
2 Diffuser PPO 2 Terminal box ABS
3 Impeller Stainless steel 3 Terminal board PC
4 Mechanical seal Carbon/Ceramic 4 Stator
5 O-ring NBR 5 Motor foot PA6
6 Support cover AISI 304/HT 200 6 Capacitor
7 Support ZL 102 7 Capacitor holder
8 Bearing
8 Rear cover ZL 102
9 Rotor
9 Fan PP
10 Venturi tube PPO 10 Fan cover PP
11 Nozzle PPO


LEO is a listed company in China (stock code 002131), LEO is a leading deep well jet pump manufacturer only offers high quality pumps. LEO has made millions of pumps now used in more than 140 countries, and is offering residential water pumps, submersible pumps, centrifugal water pumps, garden pumps with custom solutions. LEO deep well water jet pumps can meet you any requires in domestic pumping systems.
