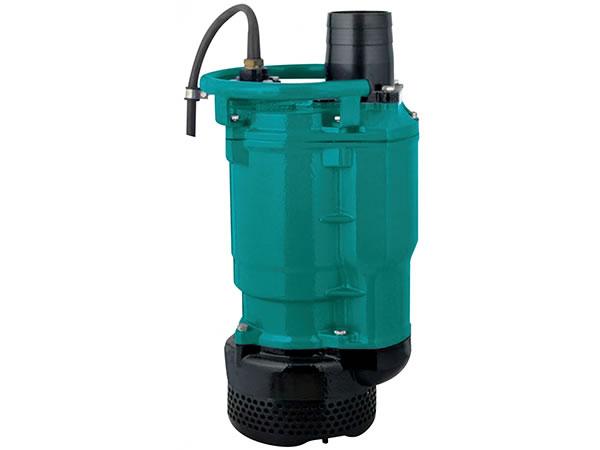

KBZ21.5-45.5 Water Pump

  KBZ21.5-45.5 Water Pump

Water Pump Application
- Civil engineering.
- Mines, quarries, Coal ore & slurries.
- Sewage treatment plants.
- General pump purposes.

Water Pump Features
- Max. liquid temperature: +40℃.
- Flow: up to 60 m³/h.
- Head: up to 57m.
- Power: 1.5KW (2HP) to 15kw(20HP).
- Max. Immersion depth: 25 m.
- Optional cable length.

Water Pump Motor Features
- Copper winding.
- Insulation class: B.
- Protection class: IP68.

Technical Data of KBZ21.5-45.5 Water Pump
Model Outlet Power Max head Max flow Impeller passage
mm KW HP m m³ /h m³ /min mm
KBZ 21.5 50 1.5 2 22 27 0.45 8.5
KBZ 22.2 50 2.2 3 26 27 0.45 8.5
KBZ 23.7 50 3.7 5 34 29 0.48 8.5
KBZ 31.5 80 1.5 2 14.5 40 0.67 8.5
KBZ 32.2 80 2.2 3 21 50 0.83 8.5
KBZ 33.7 80 3.7 5 29 55 0.92 8.5
KBZ 35.5 80 5.5 7.5 32 70 1.17 8.5
KBZ 43.7 100 3.7 5 18 90 1.5 8.5
KBZ 45.5 100 5.5 7.5 23 105 1.75 8.5

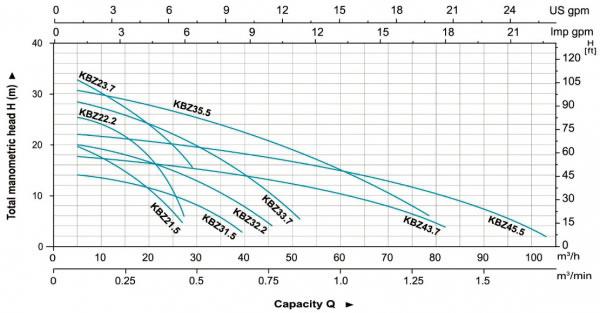

KBZ21.5-45.5 Water Pump Hydraulic Performance Curves

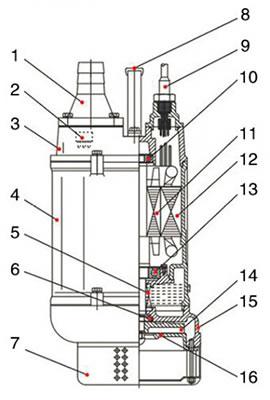

Material Table of KBZ21.5-45.5 Water Pump
No. Part Material No. Part Material
1 Hose coupling Cast Iron 9 Cable
2 Thermal Protector
10 Bearing
3 Upper Cover Cast Iron 11 Rotoe
4 Motor Cover Cast Iron 12 Stator
5 Oil Seal
13 Bearing
6 Mechanical Seal Sic-Sic/Carbon-Sic(≤ 2.2KW) Sic-Sic/Sic-Sic( ≥ 3.7KW ) 14 Impeller High Chrome alloy
7 Strainer Steel 15 Pump Body Cast Iron
8 Handle Steel 16 Inlet Plate Ductile Iron
