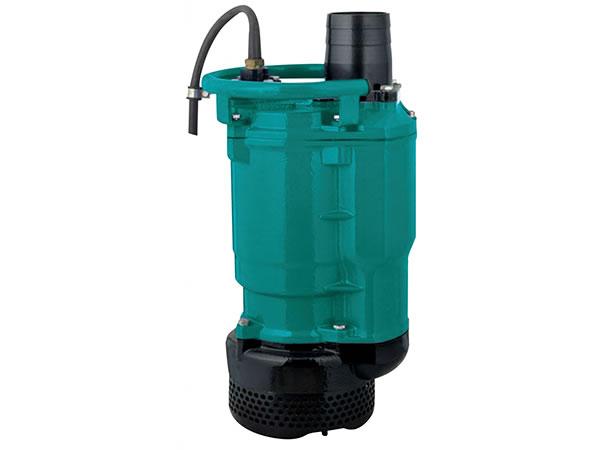

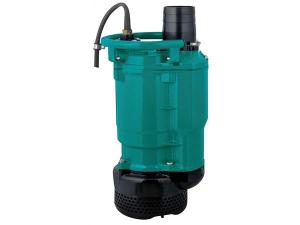

KBZ47.5-615 Water Pump

 KBZ47.5-615 Water Pump

Water Pump Application
- Civil engineering.
- Mines, quarries, Coal ore & slurries.
- Sewage treatment plants.
- General pump purposes.

Water Pump Features
- Max. liquid temperature: +40℃.
- Flow: up to 60 m³/h.
- Head: up to 57m.
- Power: 1.5KW (2HP) to 15kw(20HP).
- Max. Immersion depth: 25 m.
- Optional cable length.

Water Pump Motor Features
- Copper winding.
- Insulation class: B.
- Protection class: IP68.

Technical Data of KBZ47.5-615 Water Pump
Model Outlet Power Max head Max flow Impeller passage
mm KW HP m m³ /h m³ /min mm
KBZ 47.5 100 7.5 10 40 84 1.4 11.5
KBZ 411 100 11 15 48.5 86.4 1.44 11.5
KBZ 415 100 15 20 56 86.4 1.44 11.5
KBZ 67.5 150 7.5 10 31 124.8 2.08 19.5
KBZ 611 150 11 15 32 147 2.45 19.5
KBZ 615 150 15 20 40 156 2.6 19.5

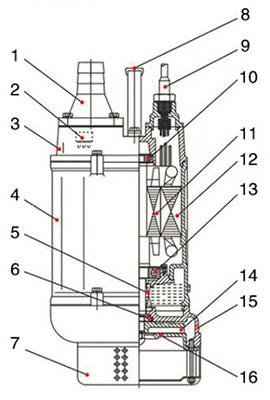

Material Table of KBZ47.5-615 Water Pump
No. Part Material No. Part Material
1 Hose coupling Cast Iron 9 Cable
2 Thermal Protector
10 Bearing
3 Upper Cover Cast Iron 11 Rotor
4 Motor Cover Cast Iron 12 Stator
5 Oil Seal
13 Bearing
6 Mechanical Seal Sic-Sic/Carbon-Sic(≤ 2.2KW) Sic-Sic/Sic-Sic( ≥ 3.7KW ) 14 Impeller High Chrome alloy
7 Strainer Steel 15 Pump Body Cast Iron
8 Handle Steel 16 Inlet Plate Ductile Iron

LEO is a listed company in China (stock code 002131), LEO is a leading water pump manufacturer only offers high quality pumps. LEO has made millions of pumps now used in more than 140 countries, and is offering commercial water pumps, submersible pumps, wastewater pumps with custom solutions. LEO water pumps can meet you any requires in commercial pumping and domestic pumping systems.
