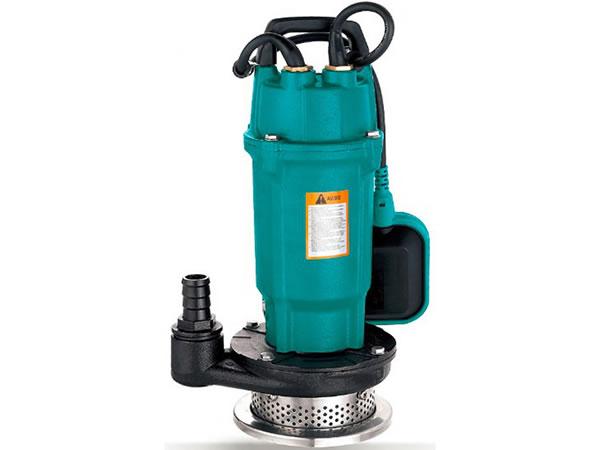

QDX1.5, 3, 10, 15, 6 Casting Submersible Pump

 QDX1.5, 3, 10, 15, 6 Casting Submersible Pump

Application
- Small electrical irrigation and drainage equipment.
- Particularly applied in urban well water pumping, field irrigation and drainage, garden irrigation and household water supply, as well as drainage of industrial accumulated water, water supply and drainage for construction, livestock breeding, etc.

Submersible Pump Motor Features
- Copper winding.
- Built-in thermal protector.
- Stainless steel welded shaft.
- Insulation class: B.
- Protection class: IP68.

QDX1.5, 3, 10, 15, 6 Casting Submersible Pump Features
- Cast iron pump body under special anti-rust treatment.
- Max. immersion depth: 5m.
- Max. liquid temperature: +40℃.
- Liquid pH value: 6.5-8.

Technical Data of QDX1.5, 3, 10, 15, 6 Casting Submersible Pump
MODEL Q(m³/h) 0 1.5 3 4.5 6 7.5 9 10.5 12 13.5 15 16.5 18 19.5 21 22.5 24
Q(l/min) 0 25 50 75 100 120 150 175 200 225 250 275 300 325 350 375 400
QDX1.5-15-0.37A H (m) 16 15.6 14.2 11.8 8 3.9 ˗ ˗ ˗ ˗ ˗ ˗ ˗ ˗ ˗ ˗ ˗
QDX3-18-0.55A 19.2 19.2 18.5 17.5 15.5 13.2 10 7 3.7 ˗ ˗ ˗ ˗ ˗ ˗ ˗ ˗
QDX10-10-0.55A 15.3 15.2 15 14.8 14.4 13.5 12.5 11.3 10 8.5 6.3 3.8 ˗ ˗ ˗ ˗ ˗
QDX15-7-0.55A 8.6 8.5 8.4 8.3 8.2 8 7.8 7.6 7.4 7.2 6.8 6.3 5.8 5.2 4.5 3.8 3
QDX1.5-32-0.75A 32.5 31.5 28.5 24.5 20 15.5 8.5 1 ˗ ˗ ˗ ˗ ˗ ˗ ˗ ˗ ˗
QDX6-18-0.75A 19.5 19.2 19 18.6 18 16.2 16.2 14.7 12.8 11 8.6 4.2 ˗ ˗ ˗ ˗ ˗
QDX10-16-0.75A
19.5 19.2 19 18.6 18 16.2 16.2 14.7 12.8 11 8.6 4.2 ˗ ˗ ˗ ˗ ˗

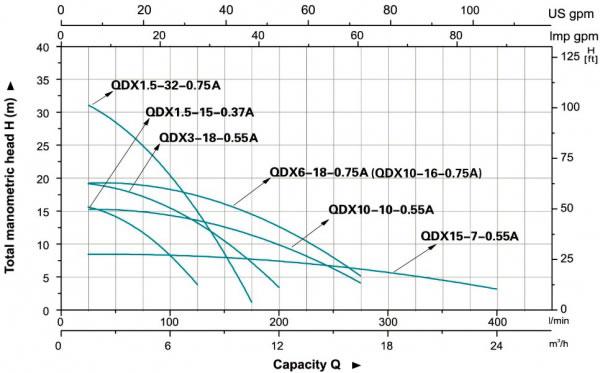

QDX1.5, 3, 10, 15, 6 Casting Submersible Pump Hydraulic Performance Curves

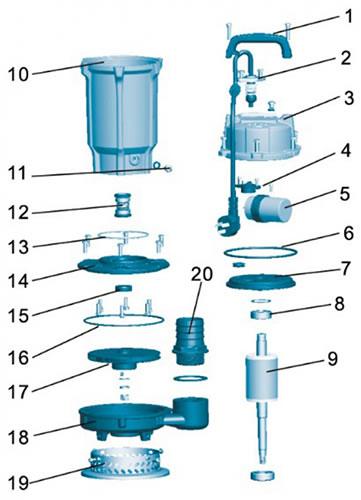

Material Table of QDX1.5, 3, 10, 15, 6 Casting Submersible Pump
No. Part Material
1 Handle PP
2 Cable
3 Top Cover HT200
4 Protector
5 Capacitor
6 O-ring NBR
7 Upper Cover HT200
8 Bearing
9 Rotor
10 Stator
11 Oil Injection Screw
12 Mechanical Seal Carbon/ceramic
13 O-ring NBR
14 Cover Of Oil Cylinder HT200
15 Oil Seal
16 O-ring NBR
17 Impeller PPO ZL 102
18 Pump Body HT200
19 Filter Screen Stainless Steel
20 Outlet Connector PP

LEO is a listed company in China (stock code 002131), LEO is a leading casting submersible pump manufacturer only offers high quality pumps. LEO has made millions of pumps now used in more than 140 countries, and is offering residential water pumps, centrifugal pumps, deep well pumps with custom solutions. LEO casting water pumps can meet you any requires in domestic pumping systems.
