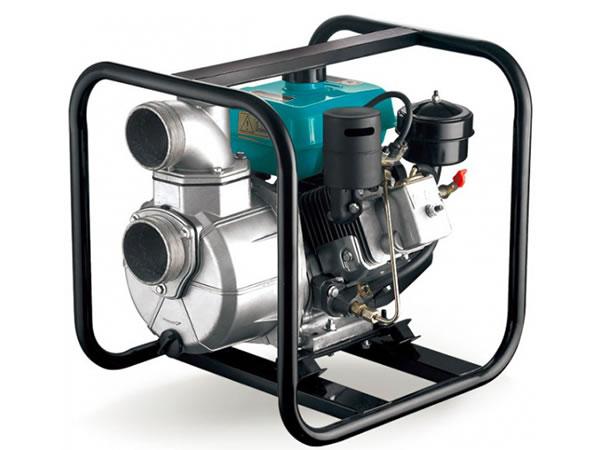

LDP Diesel Engine Pump

LDP Diesel Engine Pump

Application
- LDP diesel engine pump could be used to transfer clean water with liquid temperature between 0℃ and 40℃.
- Applicable in water supply and drainage for factories, mines, municipal facilities as well as field irrigation, etc.

LDP Diesel Engine Pump Features
- New unique design with ergonomic feature.
- Portable and compact pump frame.
- High quality motor with excellent performance and long service life.
- Impeller designed with high efficient hydraulic system.
- Low fuel consumption.

LDP Diesel Engine Pump Engine Features
- Single cylinder, 4-stroke, Air-cooled.
- Max. power: 4 HP
- Displacement: 207 cc
- Rated speed: 3000± 150 rpm

Technical Data of LDP Diesel Engine Pump
POWER Q(m³/h) 0 5 10 15 20 25 30 35 40 45
HP Q(l/min) 0 83.3 166.7 250 333.3 416.7 500 583.3 666.7 750
4 H (m) 18 17 15 12.5 8 ˗ ˗ ˗ ˗ ˗
4 18 17 16.5 15.5 14 12 10 8 6.4 4.4
LDP Diesel Engine Pump Hydraulic Performance Curves
Material Table of LDP Diesel Engine Pump
No. Part Material
1 Damper
2 Frame Steel
3 Diesel Engine
4 Pump Cover Aluminum
5 Mechanical Seal Carbon/Ceramic
6 O-ring NBR
7 Impeller HT200
8 Diffuser HT200
9 Seal Ring NBR
10 O-ring NBR
11 Plug ABS
12 Outlet Aluminum
13 Gasket NBR
14 Pump Body Aluminum
15 One-way Valve NBR
16 Inlet Aluminum

LEO is a listed company in China (stock code 002131), LEO is a leading diesel engine pump manufacturer only offers high quality pumps. LEO has made millions of pumps now used in more than 140 countries, and is offering residential water pumps, submersible pumps, centrifugal pumps, agricultural pumps with custom solutions. LEO diesel engine water pumps can meet you any requires in domestic pumping systems.
