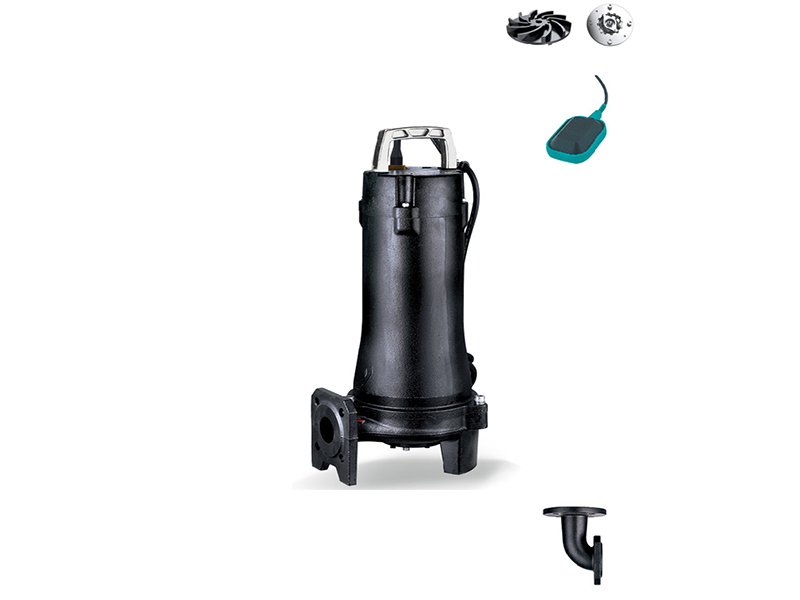

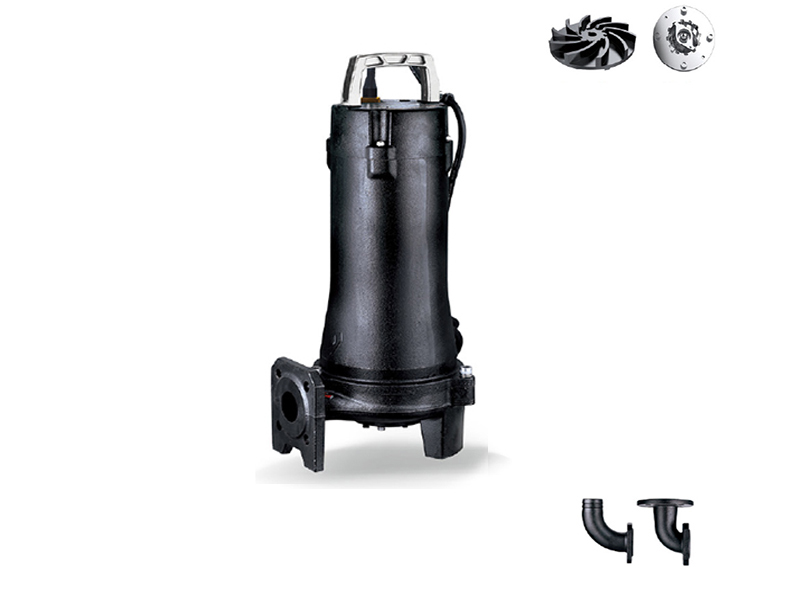

SWP Submersible Sewage Pump
Application
- Used in pressure sewage systems
- Waste water drainage from individual residences, apartment buildings, recreational developments,
models
- Transferring wastewater from commercial buildings, industrial plants, wastewater sampling, small
hospitals.
- Wastewater drainage in schools and parks
- Transfer various wastewater and sewage
Submersible Sewage Pump Features
- The pump has a semi-open impeller design with a reliable grinding system.
- The large-diameter impeller generates a high pressure, while the grinding system breaks large solid
particles into smaller pieces that can be drained without clogging the pipes
- The pumps can be directly connected to the pipes, or to an auto coupling system
- Flow switch included for single phase pump with motor pump ≤1.1kw.
- Stainless steel welded shaft
Working Conditions
- Liquid temperature: 0-40℃
- Liquid PH value: 4 - 10
- Max. Immersion depth: 5 m
Submersible Sewage Pump Motor Features
- Frequency/Pole number: 50Hz/2
- Insulation class: F
- Protection Class: IPX8
- Bearing: Ball Type
- Mechanical seal: Double-end mechanical seals

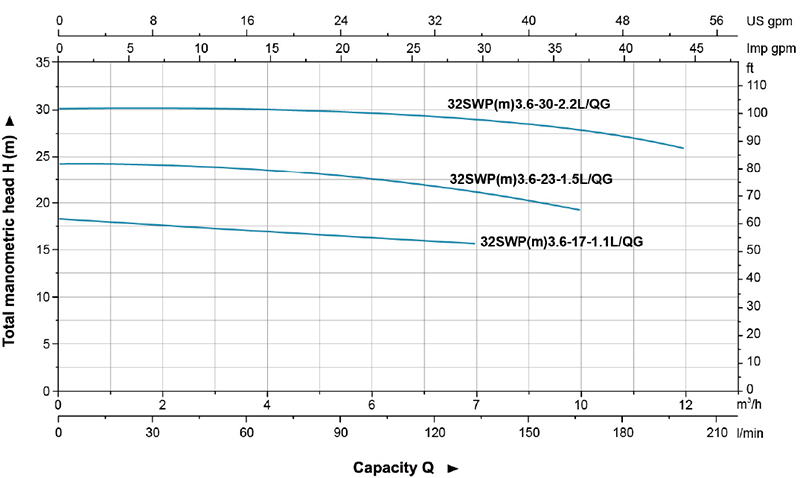

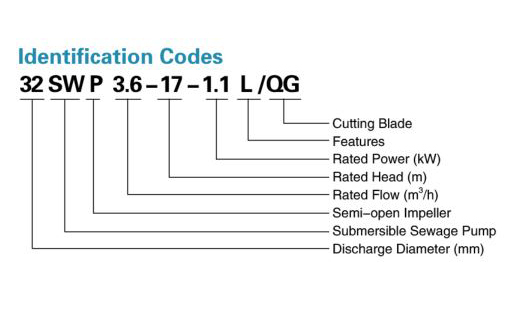

| Model | Discharge mm(inch) | Power | Rated Flow(m³/h) | Max. Flow (m³/h) |
Rated Head (m) | Max. Head (m) |
Max. Solid Dia (mm) | ||
| Single Phase | Three Phase | kW | HP | ||||||
| 32SWPm3.6-17-1.1L/QG |
32SWP3.6-17-1.1L/QG |
32（1 1/4"） | 1.1 | 1.5 | 3.6 | 8 | 17 | 18 | - |
| 32SWPm3.6-23-1.5L/QG |
32SWP3.6-23-1.5L/QG |
32（1 1/4"） | 1.5 | 2 | 3.6 | 10 | 23 | 23.2 | - |
| 32SWPm3.6-30-2.2L/QG |
32SWP3.6-30-2.2L/QG |
32（1 1/4"） | 2.2 | 3 | 3.6 | 12 | 30 | 30.2 | - |

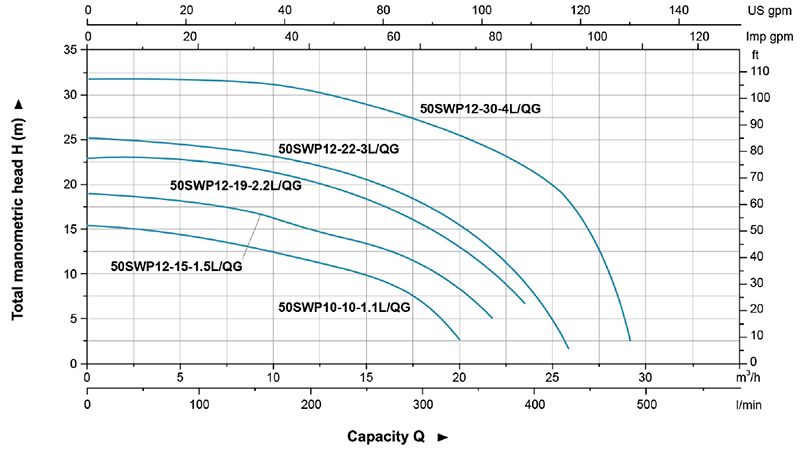

| Model | Discharge mm(inch) | Power | Rated Flow(m³/h) | Max. Flow (m³/h) |
Rated Head (m) | Max. Head (m) |
Max. Solid Dia (mm) | |
| kW | HP | |||||||
| 50SWP10-10-1.1L/QG |
50（2"） | 1.1 | 1.5 | 10 | 20.5 | 10 | 17.5 | - |
| 50SWP12-15-1.5L/QG |
50（2"） | 1.5 | 2 | 12 | 21.5 | 15 | 19.5 | - |
| 50SWP12-19-2.2L/QG |
50（2"） | 2.2 | 3 | 12 | 24.5 | 19 | 23 | - |
| 50SWP12-22-3L/QG |
50（2"） | 3 | 4 | 12 | 26 | 22 | 25.5 | - |
| 50SWP12-30-4L/QG |
50（2"） | 4 | 5.5 | 12 | 26.5 | 30 | 33 | - |

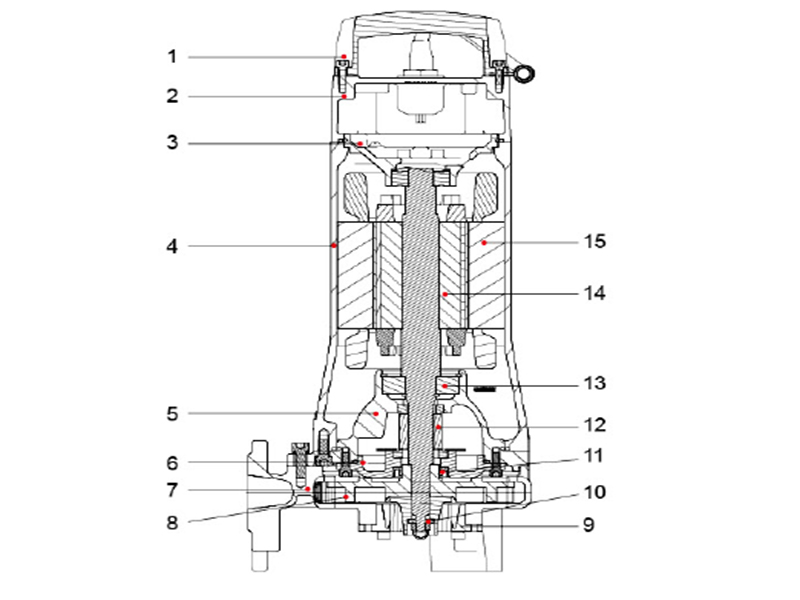

| No. | Part | Material |
| 1 | Handle | ZG45 |
| 2 | Upper Cover | HT200 |
| 3 | Upper Bearing Seat | HT200 |
| 4 | Motor Body | HT200 |
| 5 | Oil Chamber | HT200 |
| 6 | Pump Cover | HT200 |
| 7 | Pump Body | HT200 |
| 8 | Impeller | HT200 |
| 9 | Cutting Ring | 108Cr17 |
| 10 | Radial Cutter | 108Cr17 |
| 11 | Oil Seal | |
| 12 | Mechanical Seal | Upper: Sic/Carbon Lower: Sic |
| 13 | Bearing | |
| 14 | Rotor | |
| 15 | Stator |
LEO is a listed company in China (stock code 002131), LEO is a leading submersible sewage pump manufacturer only offers high quality pumps. LEO has made millions of water and sewage pumps now used in more than 140 countries. LEO sewage pumps can meet you any requires in commercial pumping systems.
