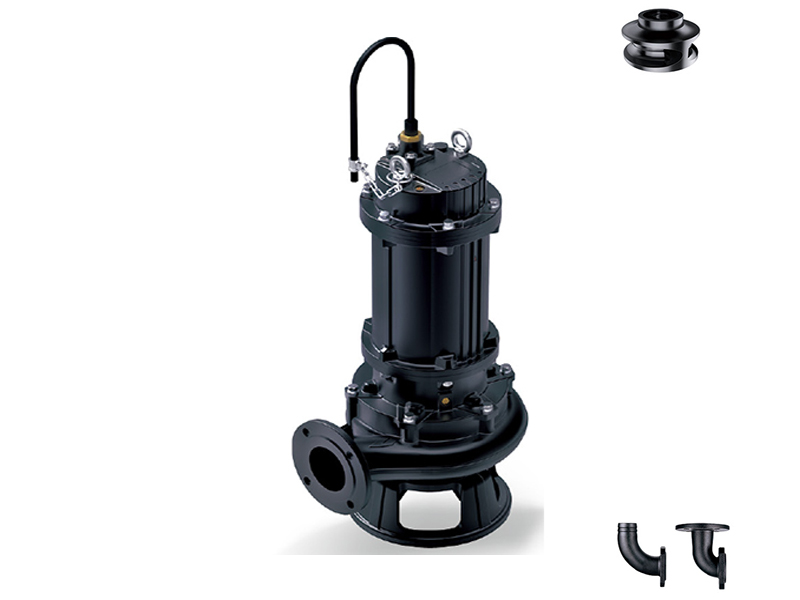

SW Submersible Sewage Pump

SW Submersible Sewage Pump Features

Application
- Used in pressure sewage systems
- Waste water drainage from individual residences, apartment buildings, recreational developments, models
- Transferring wastewater from commercial buildings, industrial plants, wastewater sampling, small hospitals.
- Wastewater drainage in schools and parks
- Transfer various wastewater and sewage .

SW Submersible Sewage Pump Features
- Flexible installations with hoses, pipes or quick-coupling systems
- Stainless shell welded shaft

Working Conditions
- Water density: 1x 103 kg/m3
- Liquid temperature: 0 - 40 °C
- Liquid PH value: 4 - 10
- Max. Immersion depth: 5 m

SW Submersible Sewage Pump Motor Features
- Motor with copper winding
- Insulation class: F
- Protection class: IPX8
- Voltage: 380V/50Hz
- Mechanical seal: Double-end mechanical seals

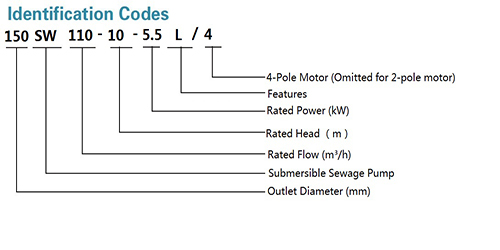

1.Technical Data
Model Motor Power Speed Max. Flow Max. Head Discharge Guide Rial
Fitting 		Max. Solid Dia G.W Packing Dimension
kW HP r.p.m m³/h m mm (inch) mm kg mm
150SW150-10-7.5L/4 7.5 10 1450 300 16 150(6") 150-150 75 160 1154x549x532
150SW110-10-5.5/4 5.5 7.5 1450 260 12 150(6") 150-150 75 155 1154x549x532

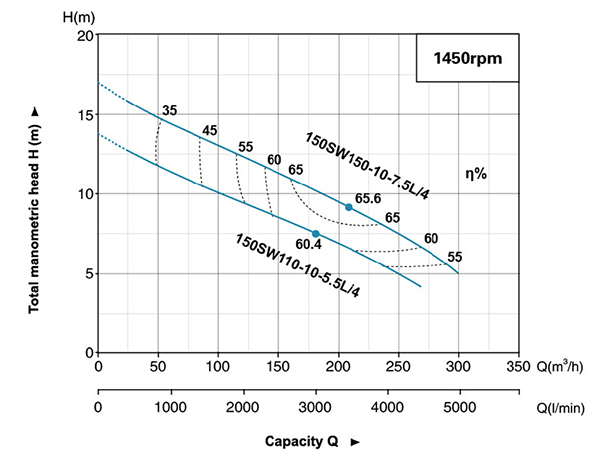

Hydraulic Performance Curves
2.Technical Data
Model Motor Power Speed Max. Flow Max. Head Discharge Guide Rial
Fitting 		Max. Solid Dia G.W Packing Dimension
kW HP r.p.m m³/h m mm (inch) mm kg mm
150SW100-10-7.5L 7.5 10 2900 150 20 150(6") 150-150 35 120 1059x414x469

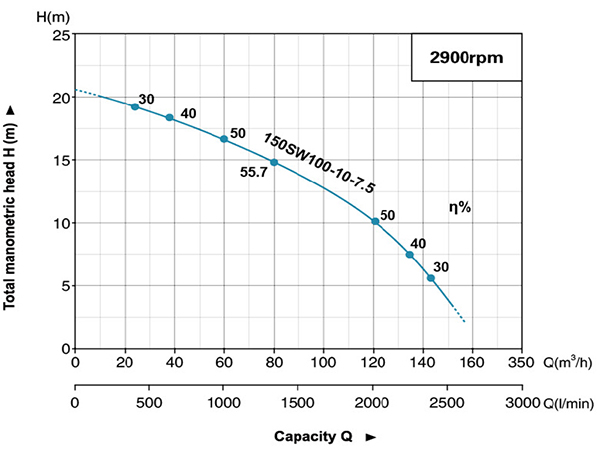

Hydraulic Performance Curves
3.Technical Data
Model Motor Power Speed Max. Flow Max. Head Discharge Guide Rial
Fitting 		Max. Solid Dia G.W Packing Dimension
kW HP r.p.m m³/h m mm (inch) mm kg mm
100SW65-22-7.5L 7.5 10 2900 108 31 100(4") 100-100 35 118 1059x414x469
100SW45-22-5.5L 5.5 7.5 2900 100 28 100(4") 100-100 30 93 954x404x437

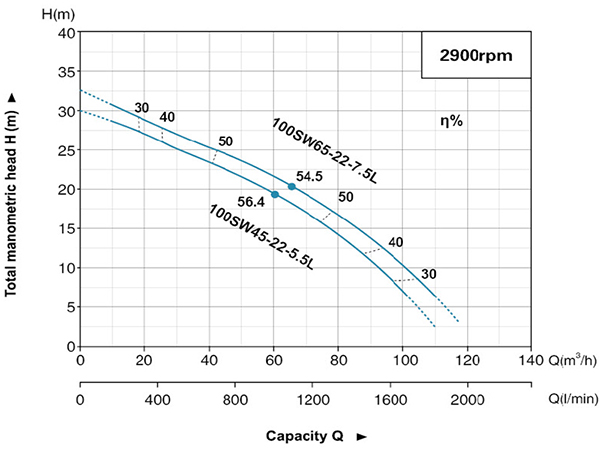

Hydraulic Performance Curves
4.Technical Data
Model Motor Power Speed Max. Flow Max. Head Discharge Guide Rial
Fitting 		Max. Solid Dia G.W Packing Dimension
kW HP r.p.m m³/h m mm (inch) mm kg mm
100SW100-15-7.5L/4 7.5 10 1450 140 21 100(4") 100-100 55 150 1154x549x532
100SW65-15-5.5L/4 5.5 7.5 1450 120 18 100(4") 100-100 55 145 1154x549x532

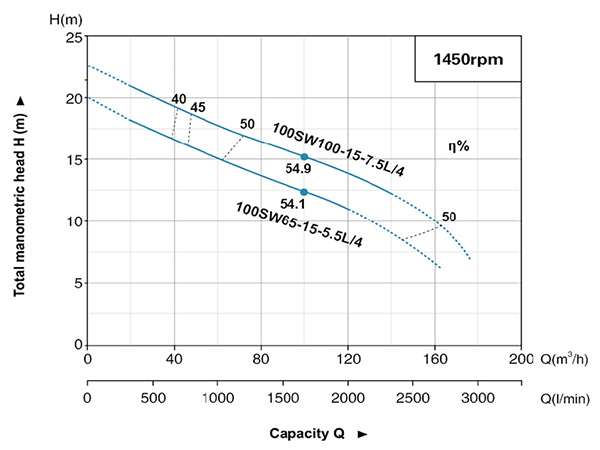

Hydraulic Performance Curves
5.Technical Data
Model Motor Power Speed Max. Flow Max. Head Discharge Guide Rial
Fitting 		Max. Solid Dia G.W Packing Dimension
kW HP r.p.m m³/h m mm (inch) mm kg mm
80SW45-22-7.5L/4 7.5 10 1450 80 26 80(3") 80-80 30 150 1127x550x450

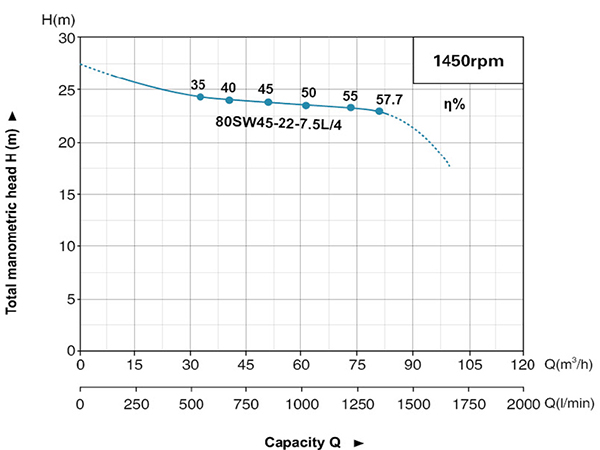

Hydraulic Performance Curves
6.Technical Data
Model Motor Power Speed Max. Flow Max. Head Discharge Guide Rial
Fitting 		Max. Solid Dia G.W Packing Dimension
kW HP r.p.m m³/h m mm (inch) mm kg mm
80SW30-36-7.5L 7.5 10 2900 75 41 80(3") 80-80 30 118 1059x414x469
80SW30-30-5.5L 5.5 7.5 2900 70 35 80(3") 80-80 30 93 954x404x437

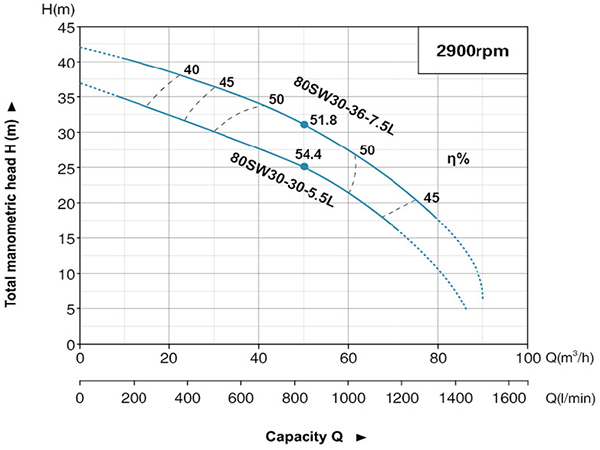

Hydraulic Performance Curves
7.Technical Data
Model Motor Power Speed Max. Flow Max. Head Discharge Guide Rial
Fitting 		Max. Solid Dia G.W Packing Dimension
kW HP r.p.m m³/h m mm (inch) mm kg mm
50SW20-45-7.5L 7.5 10 2900 45 50 50(2") 50-50 20 120 1032x430x360

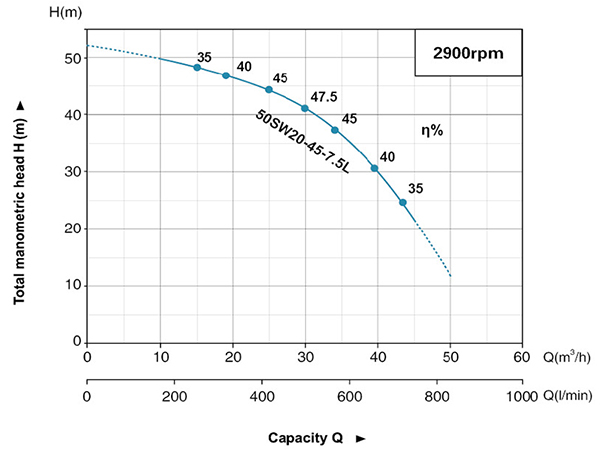

Hydraulic Performance Curves

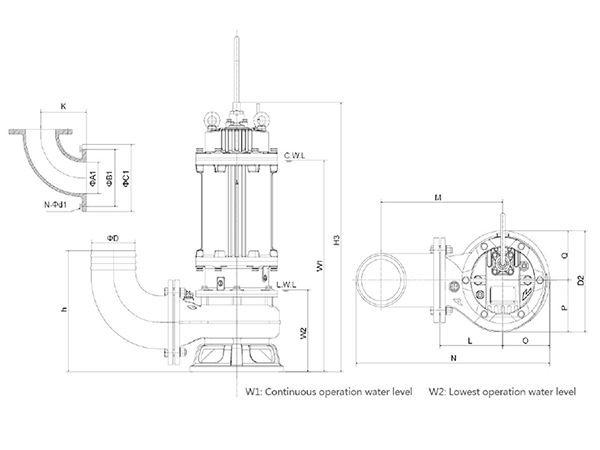

Dimension
Model ∅ D ∅ A1 ∅ B1 ∅ C1 N-∅d1 h W1 W2 H3 K N O P Q L M D2
150SW150-10-7.5L/4 150 150 225 265 8- ∅18 465 756 330 910 230 770 195 217 170 300 500 387
150SW110-10-5.5/4 150 150 225 265 8- ∅18 465 756 330 910 230 770 195 217 170 300 500 388
150SW100-10-7.5L 150 150 225 265 8- ∅18 379 660 241 811 230 640 145 162 155 210 410 317
100SW65-22-7.5L 100 100 170 210 4- ∅18 315 639 220 790 150 530 155 155 155 200 340 310
100SW45-22-5.5L 100 100 170 210 4- ∅18 315 609 220 744 150 530 155 155 155 200 340 310
100SW100-15-7.5L/4 100 100 170 210 4- ∅18 390 722 295 873 150 655 187 200 175 280 420 373
100SW65-15-5.5L/4 100 100 170 210 4- ∅18 390 722 295 873 150 655 187 200 175 280 420 373
80SW30-36-7.5L 80 80 150 190 4- ∅18 332 640 215 785 140 520 143 155 155 200 335 310
80SW30-30-5.5L 80 80 150 190 4- ∅18 332 607 215 735 140 515 136 155 155 200 335 310
80SW45-22-7.5L/4 80 80 150 190 4- ∅18 390 679 285 880 155 615 173 179 260 395 349 390
50SW20-45-7.5L 50 50 110 140 4- ∅14 284 626 221 777 105 484 133 137.5 200 320 272 284

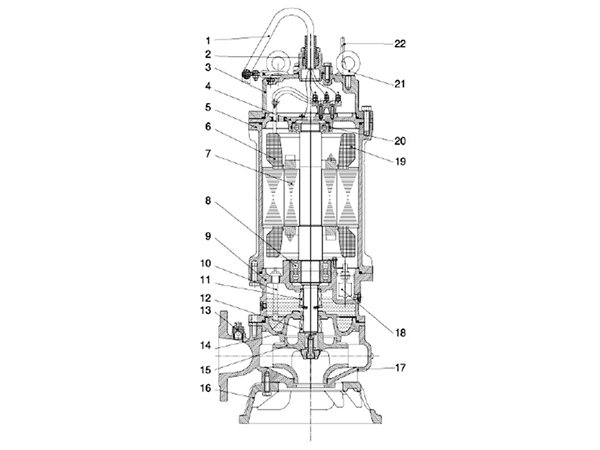

Material Table of SWU Submersible Sewage Pump
No Part Material
1 Cable
2 Cable holder HT200
3 Upper cover HT200
4 Upper bearing seat HT200
5 Frame HT200
6 Stator
7 Rotor
8 Bearing
9 Oil chamber HT200
10 *Detector
11 Mechanical seal Silicon/Carbon
12 Mechanical seal Silicon/Carbon
13 Release valve
14 Pump casing HT200
15 Impeller HT200
16 Baseplate HT200
17 Pump body HT200
18 *Floating switch
19 *Thermal sensor
20 Bearing
21 Ring 06Cr19Ni10
22 *Signal cable

Note: Add-ons like a detector, floating switch, thermal sensor and signal cable are available upon request.
