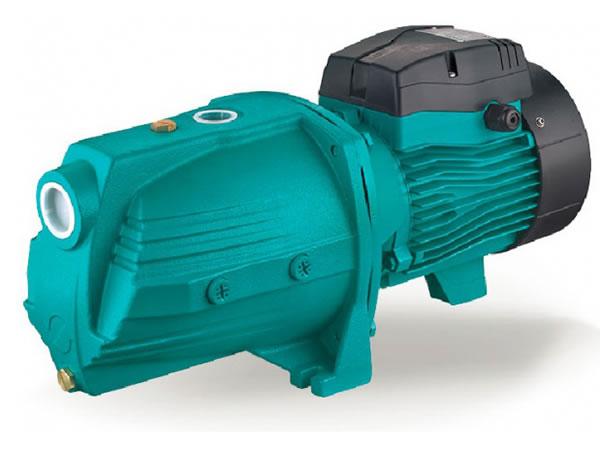

AJm Jet Pump with High Flow
AJm Jet Pump with High Flow Application
- Our jet pump can be used to transfer clean water or other liquids similar to water in physical and chemical properties.
- The pumps are suitable for lifting water from the well, garden irrigation, pressure boosting of running water, and supporting equipment etc.
Jet Pump Features
- Cast iron pump body and support under special anti-rust treatment.
- Stainless steel impeller.
- AISI 304 shaft.
- Max. liquid temperature: +40℃.
- Max. suction: +9m.
Jet Pump Motor Features
- C&U bearing.
- Motor with copper winding.
- Built-in thermal protector for single phase motor.
- Insulation class: F.
- Protection class: IPX4.
- Max. ambient temperature: +40℃.

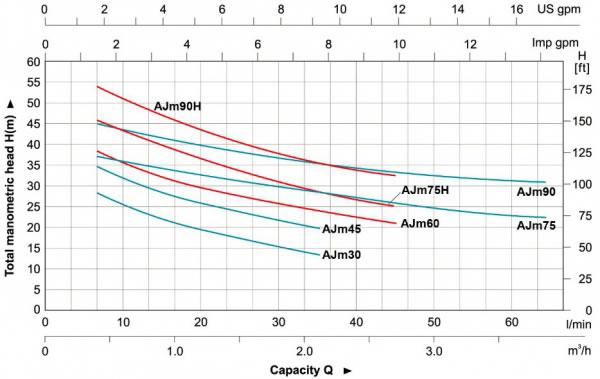

| MODEL | POWER | Q(m³/h) | 0 | 0.3 | 0.6 | 0.9 | 1.2 | 1.5 | 1.8 | 2.1 | 2.4 | 2.8 | 3 | 3.3 | 3.6 | 3.9 | ||
| KW | HP | Q(l/min) | 0 | 5 | 10 | 15 | 20 | 25 | 30 | 35 | 40 | 47 | 50 | 55 | 60 | 65 | ||
| AJm30 | 0.3 | 0.4 | H | 35 | 30 | 26 | 22.5 | 20 | 18 | 16 | 14 | ˗ | ˗ | ˗ | ˗ | ˗ | ˗ | |
| AJm45 | 0.45 | 0.6 | (M) | 41 | 36 | 32 | 28 | 25 | 22 | 20 | 18 | ˗ | ˗ | ˗ | ˗ | ˗ | ˗ | |
| AJm60 | 0.6 | 0.8 | 45 | 41 | 37 | 33.5 | 31 | 28.5 | 26 | 24 | 22.5 | 21 | ˗ | ˗ | ˗ | ˗ | ||
| AJm75 | 0.75 | 1 | 40 | 38 | 36 | 34.5 | 33 | 31.5 | 30 | 29 | 28 | 27 | 26 | 25 | 24 | 23 | ||
| AJm75H | 0.75 | 1 | 51 | 47 | 43 | 40 | 37 | 34.5 | 32 | 30 | 27.5 | 25 | ˗ | ˗ | ˗ | ˗ | ||
| AJm90 | 0.9 | 1.2 | 48 | 46 | 44 | 42.5 | 41 | 39.5 | 38 | 36 | 35 | 34 | 33 | 32 | 31 | 30 | ||
| AJm90H | 0.9 | 1.2 | 62 | 57 | 53 | 49 | 46 | 43 | 40 | 37 | 35 | 33 | ˗ | ˗ | ˗ | ˗ | ||

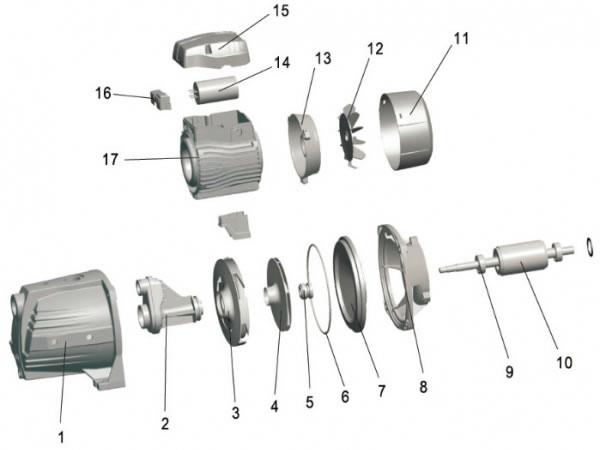

| No. | Part | Material |
| 1 | Pump body | HT 200 |
| 2 | Venturi tube | PPO |
| 3 | Diffuser | PPO |
| 4 | Impeller | AISI 304 |
| 5 | Mechanical seal | Carbon/Ceramic |
| 6 | O-ring | NBR |
| 7 | Support cover | AISI 304 |
| 8 | Support | AISI 304 |
| 9 | Bearing | |
| 10 | Rotor | |
| 11 | Fan cover | PP |
| 12 | Fan | PP |
| 13 | Rear cover | ZL 102 |
| 14 | Capacitor | |
| 15 | Terminal box | ABS |
| 16 | Terminal board | |
| 17 | Stator |
