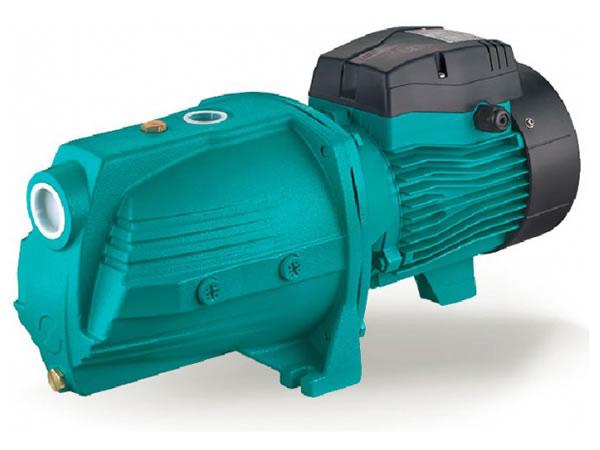

AJm Jet Pump with High Head

AJm Jet Pump with High Head

AJm Jet Pump with High Head Application
- Our jet pump can be used to transfer clean water or other liquids similar to water in physical and chemical properties.
- The pumps are suitable for lifting water from the well, garden irrigation, pressure boosting of running water, and supporting equipment etc.

Jet Pump Features
- Cast iron pump body and support under special anti-rust treatment.
- Stainless steel impeller.
- AISI 304 shaft.
- Max. liquid temperature: +40℃.
- Max. suction: +9m.

Jet Pump Motor Features
- C&U bearing.
- Motor with copper winding.
- Built-in thermal protector for single phase motor.
- Insulation class: F.
- Protection class: IPX4.
- Max. ambient temperature: +40℃.

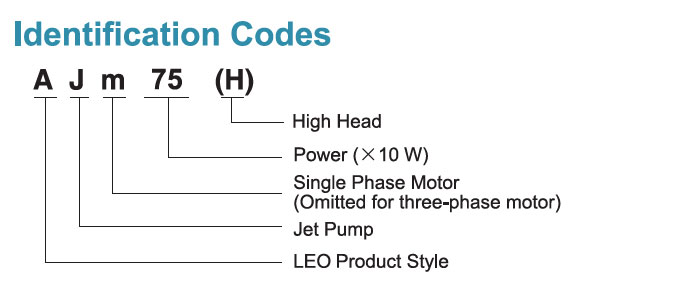

Identification Codes
Technical Data of AJm Jet Pump with High Head
MODEL POWER Q(m³/h) 0 0.6 0.9 1.2 1.5 1.8 2.1 2.4 2.7 3 3.6 4.2 4.8 6 7.2 8.4 9.6
KW HP Q(l/min) 0 10 15 20 25 30 35 40 45 50 60 70 80 100 120 140 160
AJm110H 1.1 1.5 H

(M) 		60 55 55 49 49 46 44 40 39.5 38 36 30 ˗ ˗ ˗ ˗ ˗
AJm150H 1.5 2 72 66 61 59 54 52 49.5 49 45 42 42 33 ˗ ˗ ˗ ˗ ˗
AJm110 1.1 1.5 55 50 48 47 45 45 42.5 40 39 38 35 31.5 31 23 ˗ ˗ ˗
AJm150 1.5 2 60 55 56 53 52 51 49 45 46 45 39 38 33 ˗ ˗ ˗ ˗
AJm110L 1.1 1.5 47 45 45 43 42 41 40 38 37.5 36.5 34 31 30 22 21 17 ˗
AJm150L 1.5 2 54 52 46 49 44 43 42 45 40 39 38 35 32 29 24 24 ˗

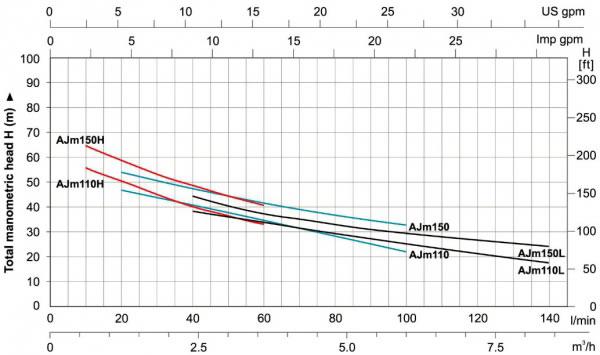

Shallow Well Water Pump Hydraulic Performance Curves

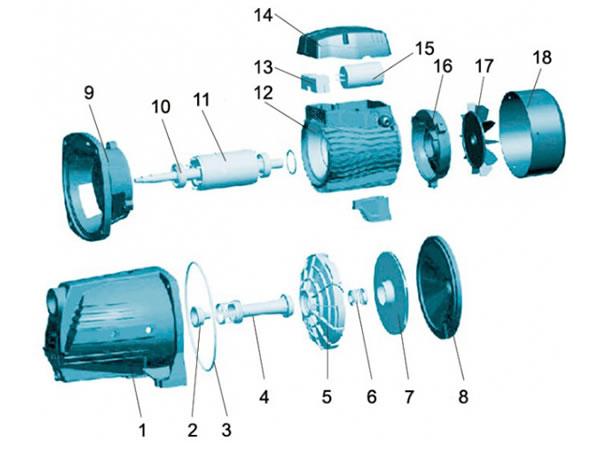

Material Table for Shallow Well Water Pump
No. Part Material
1 Pump body HT 200
2 Nozzie PPO
3 O-ring NBR
4 Venturi tube PPO
5 Diffuser PPO
6 Mechanical seal Carbon/Ceramic
7 Impeller AISI 304
8 Support cover HT 200
9 Support ZL 102
10 Bearing
11 Rotor
12 Stator
13 Terminal board PC
14 Terminal box ABS
15 Capacitor
16 Rear cover ZL 102
17 Fan PP
18 Fan cover PP

LEO is a listed company in China (stock code 002131), LEO is a leading jet pump manufacturer only offers high quality pumps. LEO has made millions of pumps now used in more than 140 countries, and is offering residential water pumps, submersible pumps, shallow well water pump, deep well pumps with custom solutions. LEO jet water pumps can meet you any requires in domestic pumping systems.
