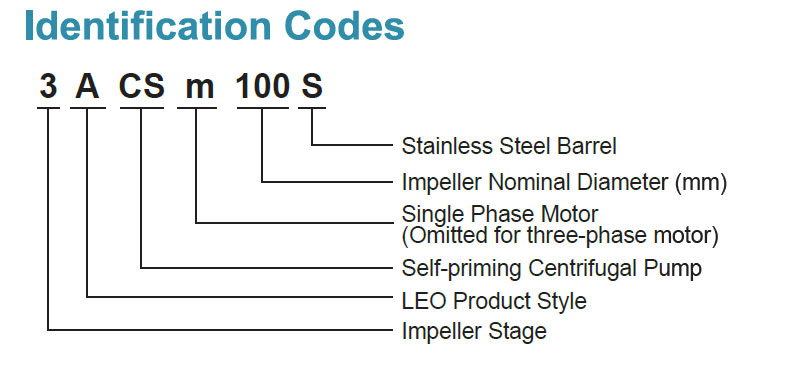

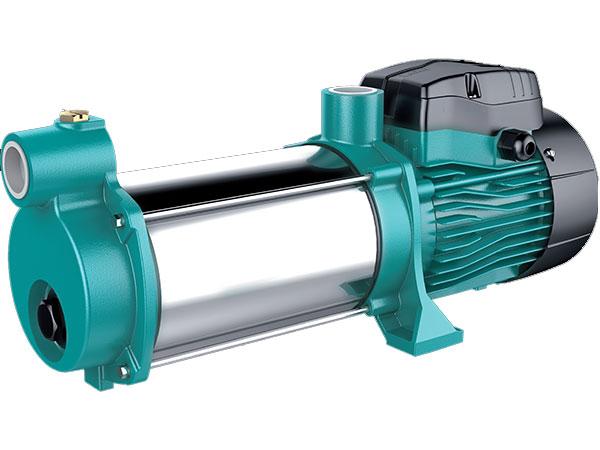

ACSm100S Self-Priming Multistage Centrifugal Pump
Application
- Transfer clean water or other liquids similar to water in both physical and chemical properties
- ACSm100S self-Priming multistage centrifugal pump is suitable for industrial use and urban water supply, domestic water supply, high rise buildings, long distance water transfer and related auxiliary equipment.
Pump
Pump with self-priming design
Cast iron pump body and support under special anti-rust treatment
AISI 304 shaft
Max. liquid temperature: +60℃
Max. suction: +8m.
Motor
- C&U bearing.
- Motor with copper winding.
- Built-in thermal protector for single phase motor.
- Insulation class: F.
- Protection class: IPX4.
- Max. ambient temperature: +40℃.
- IE 2 motor(Three phase, power ≥0.75KW)

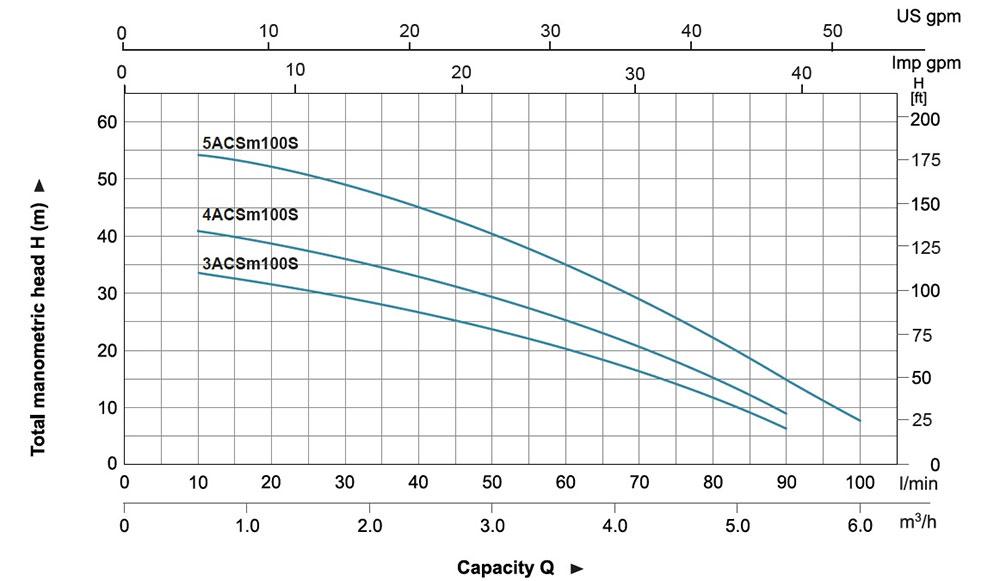

| Model | POWER | Q(m³/h) | 0 | 0.6 | 1.2 | 1.8 | 2.4 | 3 | 3.6 | 4.2 | 4.8 | 5.4 | 6 | ||
| Single Phase | Three Phase | kW | HP | Q（l/min） | 0 | 10 | 20 | 30 | 40 | 50 | 60 | 70 | 80 | 90 | 100 |
| 0.6 | 0.8 | H（m） | 35 | 33.5 | 31.5 | 29 | 26.5 | 24 | 20.5 | 16 | 12 | 7 | - | ||
| 0.75 | 1 | 45 | 41 | 38.5 | 36 | 33 | 30 | 25.5 | 21 | 15 | 9 | - | |||
| 0.9 | 12 | 55 | 54 | 52 | 49 | 45 | 40 | 35 | 29 | 22.5 | 15 | 8 | |||

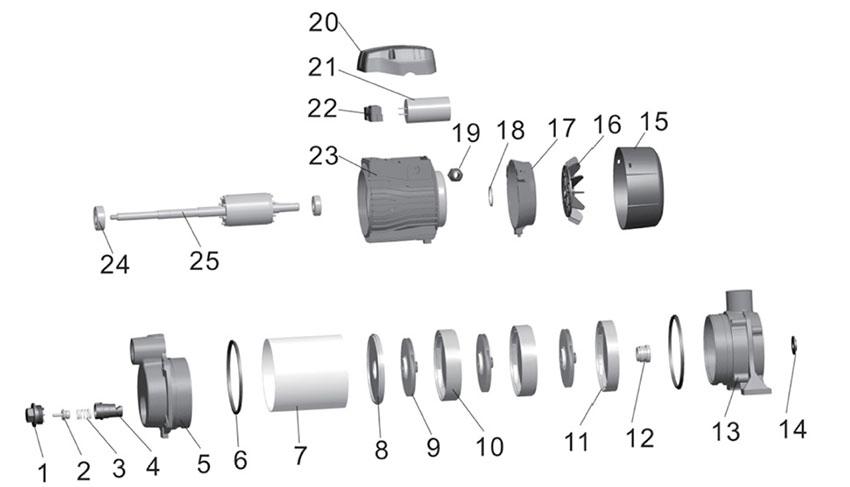

| NO. | Part | Material |
| 1 | Plug | HT200 |
| 2 | Return valve | NBR |
| 3 | Spring | AISI304 |
| 4 | Nozzle | PPO |
| 5 | Pump body | PPO |
| 6 | Seal washer | PPO |
| 7 | Pump barrel | AISI304 |
| 8 | Pump cover | PPO |
| 9 | Impeller | PPO |
| 10 | Drain cover | PPO |
| 11 | Diffuser | PPO |
| 12 | Mechanical Seal | Carbon/Ceramic |
| 13 | Support | HT200 |
| 14 | Water proof gland | NBR |
| 15 | Fan cover | PC/ABS |
| 16 | Fan | PPO |
| 17 | Rear cover | ZL102 |
| 18 | Spring washer | 65Mn |
| 19 | Cable holder | |
| 20 | Capicator box | ABS |
| 21 | Capacitor | |
| 22 | Terminal board | |
| 23 | Stator | |
| 24 | Bearing | |
| 25 | Rotor |
LEO is a listed company in China (stock code 002131), LEO is a leading self-priming centrifugal pump manufacturer only offers high quality pumps. LEO has made millions of pumps now used in more than 140 countries. LEO self-priming centrifugal water pumps can meet you any requires in domestic pumping systems.
