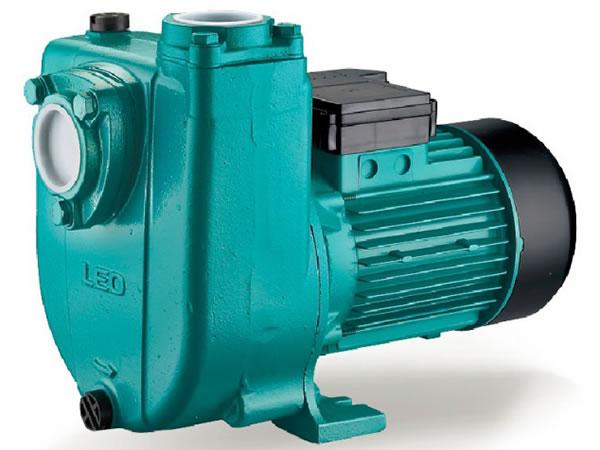

XHSm Self-Priming Centrifugal Pump

XHSm Self-Priming Centrifugal Pump

Application
- XHSm self-priming centrifugal pump can be used to transfer clean water or other liquids similar to water in physical and chemical properties.
- The self-priming centrifugal pump is suitable for pumping water from lake, river and well.
- It is popular for both industrial use and agricultural irrigation.

XHSm Self-Priming Centrifugal Pump Features
- Cast iron pump body and support under special anti-rust treatment.
- AISI 304 shaft.
- Max. liquid temperature: +40℃.
- Max. suction: +8m.

XHSm Self-Priming Centrifugal Pump Motor Features
- C&U bearing.
- Motor with cooper winding.
- Built-in thermal protector for single phase motor.
- Insulation class: F.
- Protection class: IPX4.
- Max. ambient temperature: +40℃.

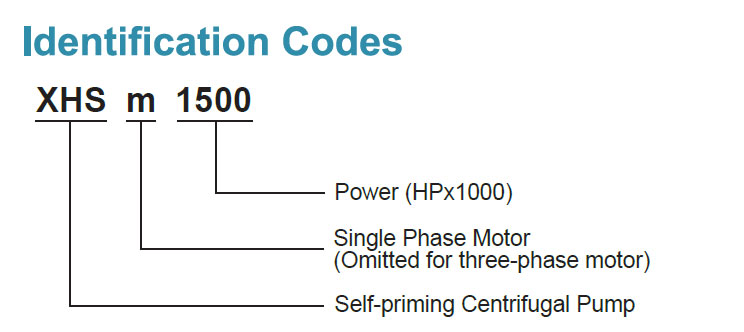

Identification Codes
Technical Data of XHSm Self-Priming Centrifugal Pump
MODEL POWER Q(m³/h) 0 2.1 4.5 6.6 8.1 10.2 12 14.1 16.2 19.8
Single Phase Three Phase KW HP Q(l/min) 0 35 75 110 135 170 200 235 270 330
XHSm1500 XHS1500 1.1 1.5 H(m) 15 14 12.5 11 10 8.5 7 5 2.5 ˗
XHSm2000 XHS2000 1.5 2 20.5 19 17.5 16 15 13.5 12 10 7.5 2.5

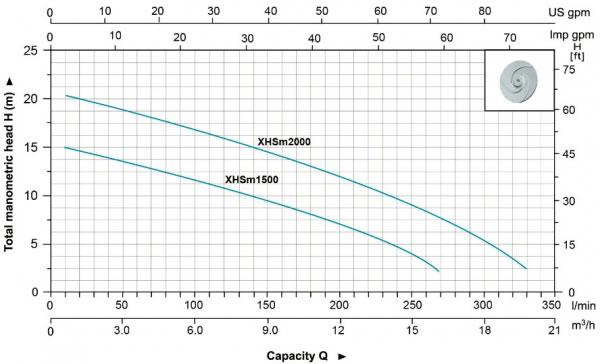

XHSm Self-Priming Centrifugal Pump Hydraulic Performance Curves

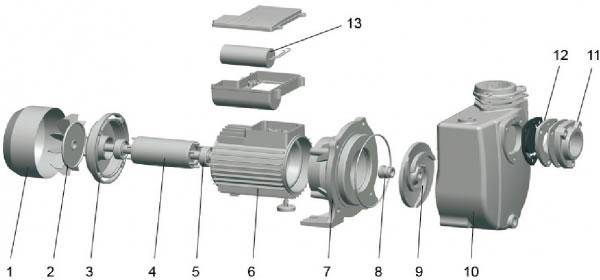

Material Table of XHSm Self-Priming Centrifugal Pump
No. Part Material
1 Fan cover 08F
2 Fan PP
3 Rear Cover ZL 102
4 Rotor
5 Bearing
6 Stator
7 Support HT 200
8 Mechanical Seal Carbon/Ceramic
9 Impeller HT 200
10 Pump Body HT 200
11 Inlet Adaptor HT 200
12 Non-return Valve NBR
13 Capacitor

LEO is a listed company in China (stock code 002131), LEO is a leading self-priming centrifugal pump manufacturer only offers high quality pumps. LEO has made millions of pumps now used in more than 140 countries, and is offering residential water pumps, irrigation booster pumps, centrifugal pumps, deep well pumps with custom solutions. LEO self-priming centrifugal water pumps can meet you any requires in domestic pumping systems.
