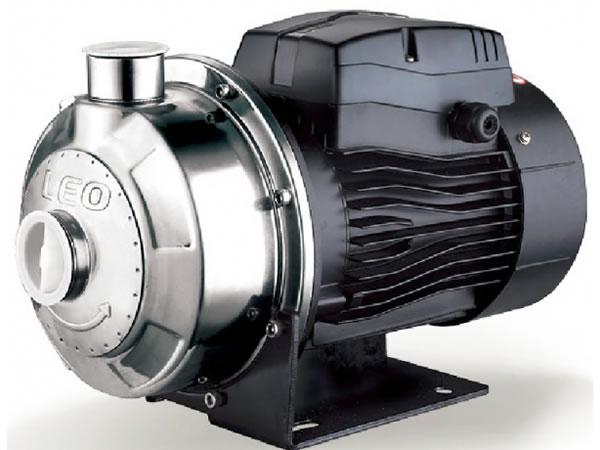

AMS70-120 Single Phase / 3 Phase Stainless Steel Centrifugal Pump

AMS70-120 Single Phase / 3 Phase Stainless Steel Centrifugal Pump

Application
AMS70-120 stainless steel centrifugal pump is applicable to household water supply, equipment support, pipeline pressurization, garden watering, vegetable greenhouse watering, fish farming and poultry raising, industrial and mining, water supply and drainage of enterprises and high-rise buildings, central air conditioner and centralized heating circulation system, etc.

AMS70-120 Stainless Steel Centrifugal Pump Features
- AISI 304 pump body.
- AISI 304 shaft.
- Max. liquid temperature: +85℃.
- Altitude: up to 1000m.

AMS70-120 Stainless Steel Centrifugal Pump Motor Features
- Motor with cooper winding.
- Built-in thermal protector for single phase motor.
- Insulation class: F.
- Protection class: IPX4.
- Max. ambient temperature: +40℃.

Technical Data of AMS70-120 Stainless Steel Centrifugal Pump
MODEL POWER Q(l/min) 0 30 40 60 80 100 120 140 160 180
Single Phase Three Phase KW HP Q(m³/h) 0 1.8 2.4 3.6 4.8 6 7.2 8.4 9.6 10.8
AMSm70/0.37 AMSm70/0.37 0.37 0.5 H(m) 20.9 19 18.1 15.7 12.1 ˗ ˗ ˗ ˗ ˗
AMSm70/0.55 AMSm70/0.55 0.55 0.75 29.5 27.3 26.3 23.4 19.1 ˗ ˗ ˗ ˗ ˗
AMSm70/0.75 AMSm70/0.75 0.75 1 30.4 28.5 27.8 26 23 ˗ ˗ ˗ ˗ ˗
AMSm120/0.55 AMSm120/0.55 0.55 0.75 20.2 ˗ ˗ 17.9 16.6 15.1 13.3 11.2 8.7 ˗
AMSm120/1.1 AMSm120/1.1 1.1 1.5 30.2 ˗ ˗ 26.7 25.1 23.3 21.2 19 16.4 ˗

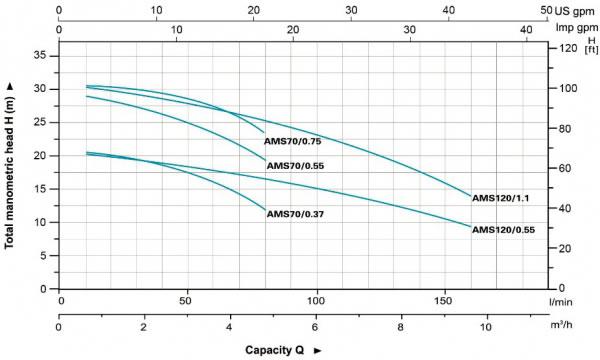

AMS70-120 Stainless Steel Centrifugal Pump Hydraulic Performance Curves

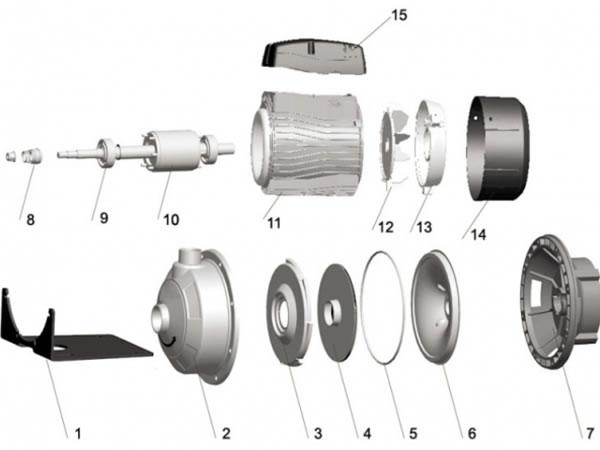

Material Table of AMS70-120 Stainless Steel Centrifugal Pump
No. Part Material
1 Bottom Support Steel
2 Pump Body AISI 304
3 Diffuser AISI 304
4 Impeller AISI 304
5 O-ring NBR
6 Airproof Plate AISI 304
7 Support ZL 102
8 Mechanical Seal Silicon Carbide/Carbon
9 Ball Bearing
10 Rotor
11 Stator
12 Fan PP
13 Rear Housing ZL 102
14 Fan Cover PP
15 Terminal Box ABS
