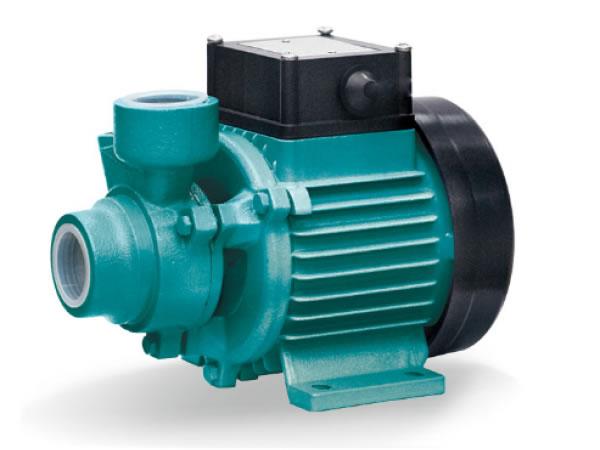

XKm Peripheral Pump
Application
- Can be used to transfer clean water or other liquids similar to water in physical and chemical properties.
- Suitable for lifting water from the well, sprinkling irrigation in garden, pressure boosting of running water, and supporting equipment etc.
XKm Domestic Pump Features
-Special anti-rust treatment for cast iron pump body and support
-Anti-block system for impeller
-Brass impeller
-AISI 304 shaft
-Max. liquid temperature: +40℃
- Max. suction: +8 m
Pump Motor Features
-Copper winding
-Built-in thermal protector for single phase motor.
-Insulation class: F
-Protection class: IPX4
-Max. ambient temperature: +40℃

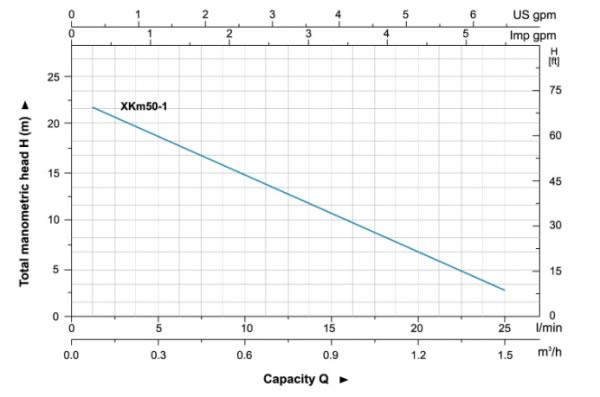

| MODEL | POWER | Q (m3 /h） | 0 | 0.3 | 0.6 | 0.9 | 1.2 | 1.5 | |
| (kW) | (HP) | Q (L/min) | 0 | 5 | 10 | 15 | 20 | 25 | |
| 0.11 | 0.15 | H(m) | 22 | 19 | 15 | 11 | 7 | 3 | |

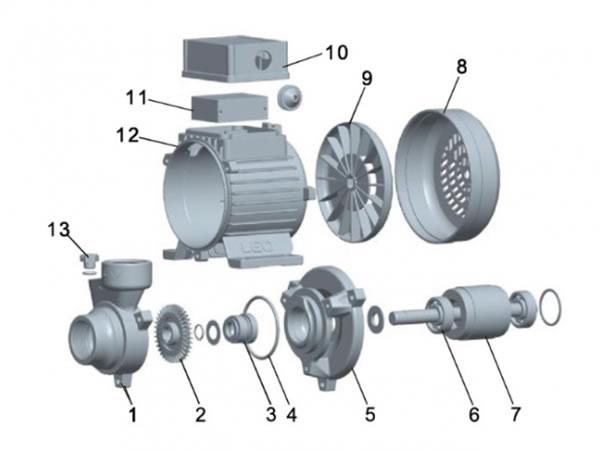

| No. | Part | Material |
| 1 | Pump Body | HT200 |
| 2 | Impeller | Brass |
| 3 | Mechanical seal | carbon/Ceramic |
| 4 | O-ring | NBR |
| 5 | Support | HT200 |
| 6 | Bearing | |
| 7 | Rotor | |
| 8 | Fan cover | PP |
| 9 | Fan | PP |
| 10 | Terminal box | PC/ABS |
| 11 | Capacitor | |
| 12 | Stator | |
| 13 | Filling plug | Hpb59-1 |
LEO is a listed company in China (stock code 002131), LEO is a leading domestic pump manufacturer only offers high quality pumps. LEO has made millions of pumps now used in more than 140 countries, and is offering peripheral pumps, water pressure pumps, water booster pumps, submersible pumps, deep well pumps with custom solutions. LEO water pumps can meet you any requires in domestic pumping systems.
