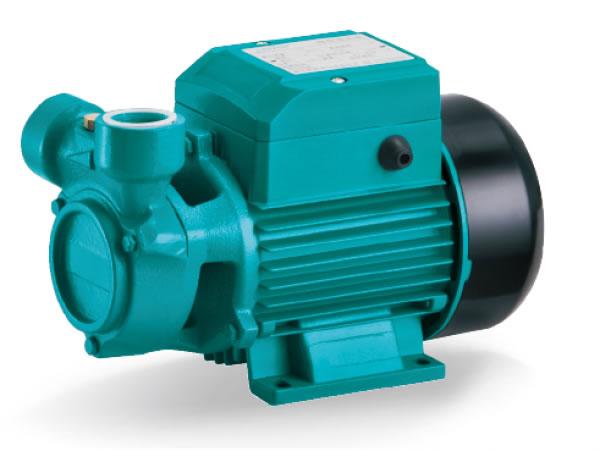

XQm Peripheral Pump

XQm Peripheral Pump

- Can be used to transfer clean water or other liquids similar to water in physical and chemical properties.
- Suitable for lifting water from the well, sprinkling irrigation in garden, pressure boosting of running water, and supporting equipment etc.

XQm Peripheral Pump Features
- Special anti-rust treatment for cast iron pump body and support
- Brass impeller
- AISI 304 shaft
- Max. liquid temperature: +40℃
- Max. suction: +8 m

XQm Peripheral Pump Motor Features
- C&U bearing
- Copper winding
- Built-in thermal protector for single phase motor
- Insulation class: F
- Protection class: IPX4
- Max. ambient temperature: +40℃

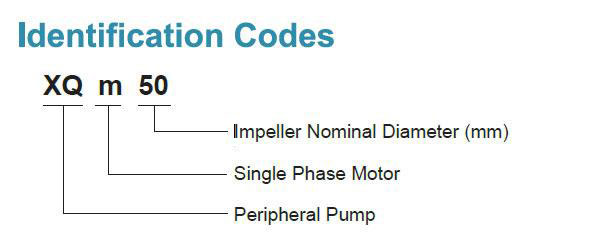

Identification Codes
Technical Data for XQm Peripheral Pump
MODEL POWER Q(m3 /h) 0 0.3 0.6 0.9 1.2 1.5 1.5
(KW) (HP) Q(L/min) 0 5 10 15 20 25 25
XQm50 0.125 0.15 H(m) 23 19 15 11 7 3 3

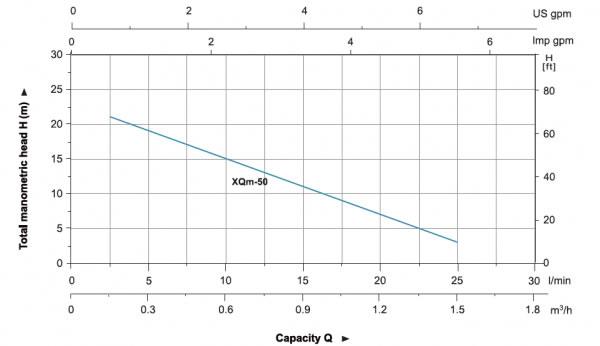

Hydraulic Performance Curve of XQm Peripheral Pump

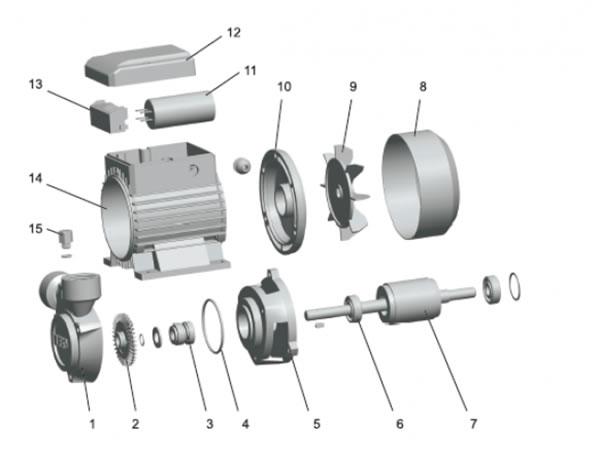

Material Table of XQm Peripheral Pump:
No. Part Material
1 Pump Body HT200
2 Impeller Brass
3 Mechanical seal carbon/ceramic
4 O-ring NBR
5 Support HT200
6 Bearing
7 Rotor
8 Fan cover 08F
9 Fan PP
10 Rear cover ZL102
11 Capacitor
12 Terminal box ABS
13 Terminal board PC
14 Stator
15 Filling plug Hpb59-1
