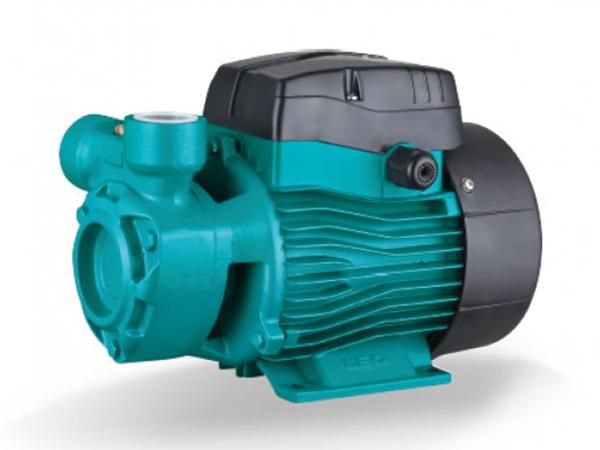

AQm Peripheral Pump

AQm Peripheral Pump

Application
- Can be used to transfer clean water or other liquids similar to water in physical and chemical properties.
- Suitable for lifting water from the well, sprinkling irrigation in garden, pressure boosting of running water, and supporting equipment etc.

AQm Peripheral Pump Features
- Special anti-rust treatment is introduced for AQm Peripheral Pump's cast iron pump body and support
- Brass impeller is installed on our booster pump.
- AISI 304 shaft
- Max. liquid temperature: +40℃
- Max. suction: +8 m

AQm Peripheral Pump Motor Features
- C&U bearing
- Copper winding
- Built-in thermal protector for single phase motor
- Insulation class: F
- Protection class: IPX4
- Max. ambient temperature: +40℃

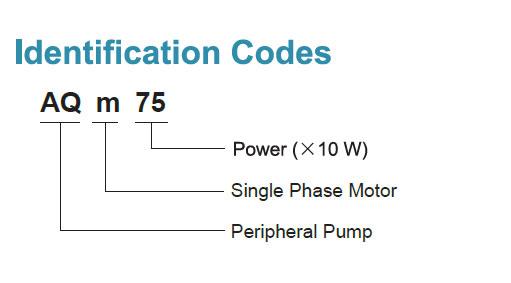

Identification Codes
Technical Data of AQm Peripheral Pump
MODEL POWER Q（m³/h） 0 0.3 0.6 0.9 1.2 1.5 1.8 2.1 2.4 3
KW HP Q（l/min） 0 5 10 15 20 25 30 35 40 50
AQm37 0.37 0.5 H(m) 40 35 30 25 20 15 10 5 2 /
AQm60 0.6 0.8 60 55 50 40 35 30 25 20 10 5
AQm75 0.75 1 75 70 60 50 45 35 28 22 15 5

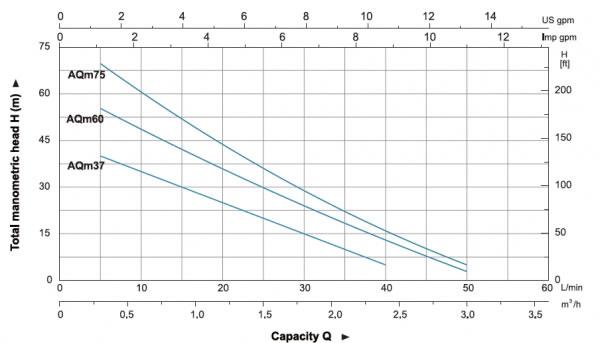

Hydraulic Performance Curve for AQm Peripheral Pump

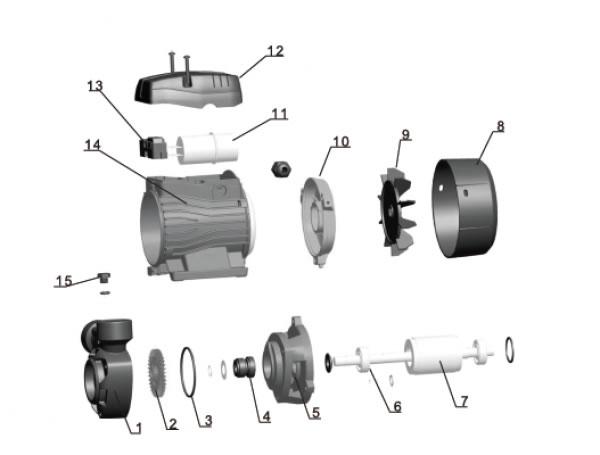

Material Table of AQm Peripheral Pump
No. Part Material
1 Pump Body HT200
2 Impeller Brass
3 Mechanical seal carbon/ceramic
4 O-ring NBR
5 Support HT200
6 Bearing
7 Rotor
8 Fan cover 08F
9 Fan PP
10 Rear cover ZL102
11 Capacitor
12 Terminal box ABS
13 Terminal board PC
14 Stator
15 Filling plug Hpb59-1
