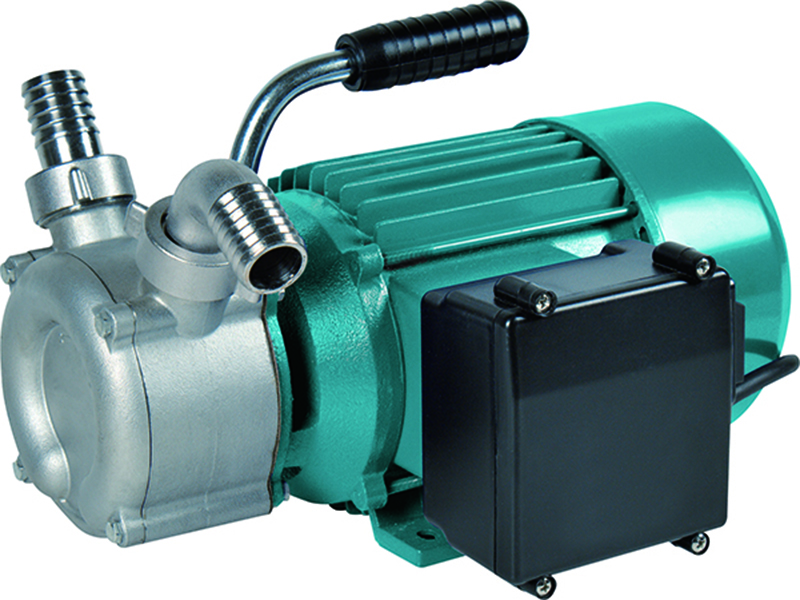

LBm Series Peripheral Pump
Application
Multiple-Applications
Transfer water, wine, milk, juice and other liquids without sand or other solid impurities
Bidirectional rotation
Features
Motor equipped with a reverse switch to allow the pump to rotate in two directions. The suction side can be used for delivery, while the delivery side can be used for suction.
The pump liquids out and refill without moving pipes.
Pump
Max. Liquid temperature: +35°C
Max. ambient temperature: + 40°C
Max. Suction: 8 m
Equiped with reverse switch for bidirectional rotation
AISI 304 Pump body & cover,
Brass impeller
AISI 304 welding shaft

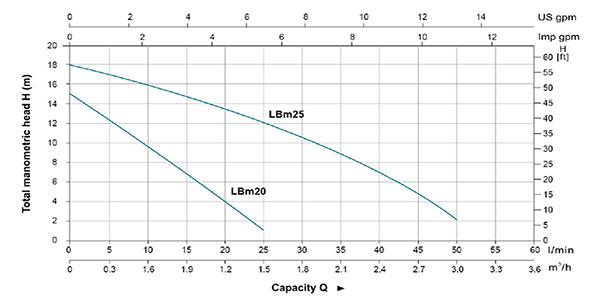

| Model | Power | Q(m³/h) | 0 | 0.3 | 0.6 | 0.9 | 1.2 | 1.5 | 1.8 | 2.1 | 2.4 | 2.7 | 3.0 | |
| kW | HP | Q(l/min) | 0 | 5 | 10 | 15 | 20 | 25 | 30 | 35 | 40 | 45 | 50 | |
| LBm20 |
0.37 | 0.5 | H(m) | 15 | 12.5 | 10 | 7 | 4 | 1 | - | - | - | - | - |
| LBm25 |
0.75 | 1.0 | 18 | 17 | 16 | 14.5 | 13 | 12 | 10.5 | 9 | 7 | 5 | 2 | |

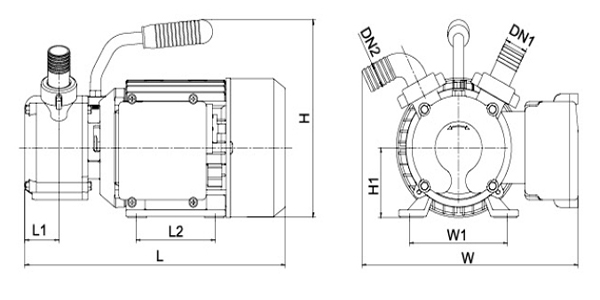

| Model | Ports | L (mm) |
W (mm) |
H (mm) |
L1 (mm) |
L2 (mm) |
W1 (mm) |
H1 (mm) |
|
| DN1 | DN2 | ||||||||
| LBm20 | 20mm | 252.5 | 220 | 182.5 | 31.5 | 80 | 100 | 63 | |
| LBm25 | 25mm | 297.5 | 247 | 201 | 39 | 90 | 112 | 71 | |

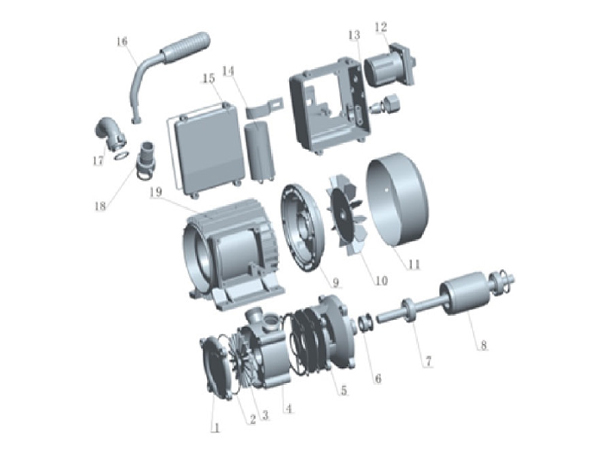

| No | Part | Material |
| 1 | Pump cover | AISI 304 |
| 2 | O-ring | NBR |
| 3 | Impeller | Brass |
| 4 | Pump body | AISI 304 |
| 5 | Support | HT200 |
| 6 | Skeleton seal | |
| 7 | Bearing | |
| 8 | Rotor | |
| 9 | End plate | ZL 102 |
| 10 | Fan | PP-GF15 |
| 11 | Wind hood | 08F |
| 12 | Reversing switch | |
| 13 | Terminal box | ABS |
| 14 | Capacitor | |
| 15 | Terminal box cover | ABS |
| 16 | Handle | Steel |
| 17 | Water elbow | ZCuZn38 |
| 18 | Water Inlet | ZCuZn38 |
| 19 | Stator |
| Model | GW (kg) |
L (mm) |
W (mm) |
H (mm) |
Quantity (PCS/20'TEU) |
| LBm20 | 5.7 | 282 | 216 | 150 | 2912 |
| LBm25 | 10.1 | 328 | 236 | 167 | 1872 |
