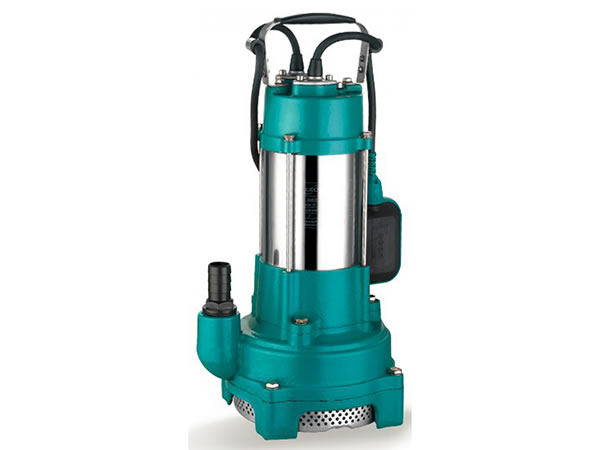

XQS-I 0.75HP Stainless Steel Submersible Pump
Application
- Small electrical irrigation and drainage equipment.
- Particularly applied in urban well water pumping, field irrigation and drainage, garden irrigation and household water supply, as well as drainage of industrial accumulated water, water supply and drainage for construction, livestock breeding, etc.
Submersible Pump Motor Features
- Copper winding.
- Built-in thermal protector.
- Stainless steel welded shaft.
- Insulation class: B.
- Protection class: IP68.
XQS-I 0.75HP Stainless Steel Submersible Pump Features
- Max. immersion depth: 5m.
- Max. liquid temperature: +40℃.
- Liquid pH value: 6.5-8.

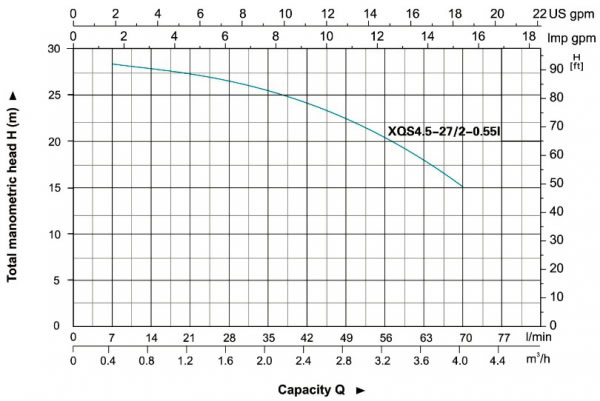

| Model | Power | Outlet diameter (mm) | Voltage (V/Hz) | Max. flow (l/min) | Max. head (m) | GW (kgs) | Packing size (mm) | Quantity (PCS/20'TEU) | |
| KW | HP | ||||||||
| 0.55 | 0.75 | 25 | 220/50 | 75 | 27 | 21.8 | 500x270x235 | 980 | |

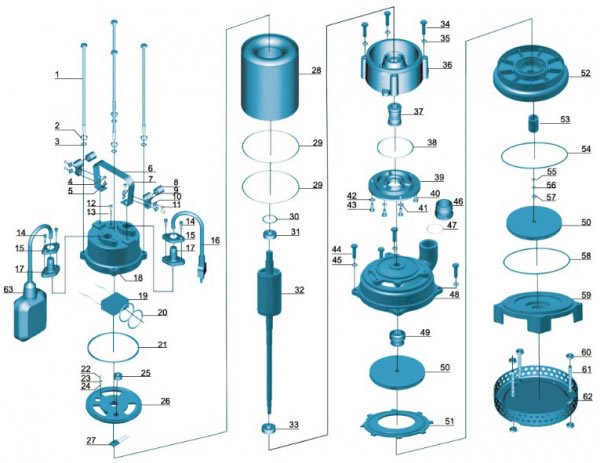

| No. | Part | Material | No. | Part | Material |
| 1 | Bolt | Stainless Steel | 33 | Ball Bearing | |
| 2 | Stretching washer | Stainless Steel | 34 | Bolt | Stainless Steel |
| 3 | Washer | Stainless Steel | 35 | Washer | Stainless Steel |
| 4 | Bolt | Stainless Steel | 36 | Connection Part | HT200 |
| 5 | Washer | Stainless Steel | 37 | Mechanical Seal | Carbon/Ceramic |
| 6 | Handle | Stainless Steel | 38 | O-ring | NBR |
| 7 | Nut | Stainless Steel | 39 | Oil Chamber Cover | HT200 |
| 8 | Protector | NR | 40 | Screw | Stainless Steel |
| 9 | Cable Presser | Stainless Steel | 41 | Washer | Stainless Steel |
| 10 | Washer | Stainless Steel | 42 | O-ring | Stainless Steel |
| 11 | Screw | Stainless Steel | 43 | Screw | Stainless Steel |
| 12 | Bolt | Stainless Steel | 44 | Bolt | Stainless Steel |
| 13 | O-ring | NBR | 45 | Washer | Stainless Steel |
| 14 | Bolt | Stainless Steel | 46 | Connector | ABS |
| 15 | Flange | Stainless Steel | 47 | O-ring | NBR |
| 16 | Cable | 48 | Pump Body | HT200 | |
| 17 | Cable Protector | CR | 49 | Mechanical Seal | Carbon/Ceramic |
| 18 | Capacitor Cover | HT200 | 50 | Impeller | PPO |
| 19 | Capacitor | 51 | Guide leaf Cover | PPO | |
| 20 | O-ring | NBR | 52 | Guide leaf | PPO |
| 21 | O-ring | NBR | 53 | Sleeve | PPO |
| 22 | Screw | CuZn40 | 54 | O-ring | NBR |
| 23 | Stretching washer | 65Mn | 55 | Washer | Stainless Steel |
| 24 | Washer | CuZn40 | 56 | Stretching washer | Stainless Steel |
| 25 | Cable holder | NBR | 57 | Nut | Stainless Steel |
| 26 | Motor Cover | HT200 | 58 | O-ring | NBR |
| 27 | Thermal Protector | 59 | Pump Cover | HT200 | |
| 28 | Stator | 60 | Nut | ||
| 29 | O-ring | NBR | 61 | Bilateral Bolt | Stainless Steel |
| 30 | Wave Washer | 65Mn | 62 | Filter Mesh | Stainless Steel |
| 31 | Ball Bearing | 63 | Float Switch | ||
| 32 | Rotor |
