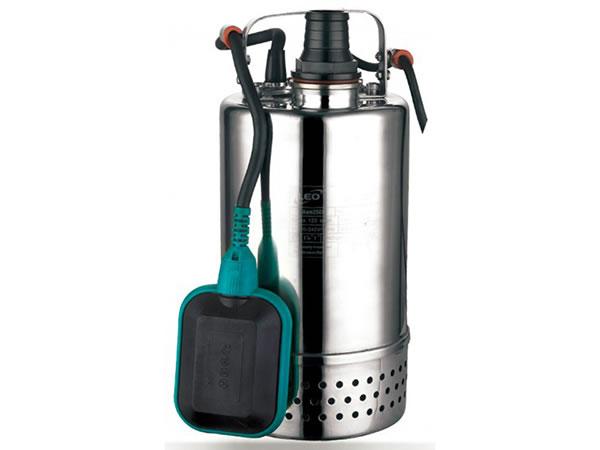

XQS-S 0.33HP 1HP Stainless Steel Submersible Pump
Application
- Small electrical irrigation and drainage equipment.
- Particularly applied in urban well water pumping, field irrigation and drainage, garden irrigation and household water supply, as well as drainage of industrial accumulated water, water supply and drainage for construction, livestock breeding, etc.
Submersible Pump Motor Features
- Copper winding.
- Built-in thermal protector.
- Stainless steel welded shaft.
- Insulation class: B.
- Protection class: IP68.
XQS-S 0.33HP 1HP Stainless Steel Submersible Pump Features
- Stainless steel pump body.
- Max. immersion depth: 5m.
- Max. liquid temperature: +40℃.
- Liquid pH value: 4-10.
- Max. liquid density: 1.03x103 kg/m3.

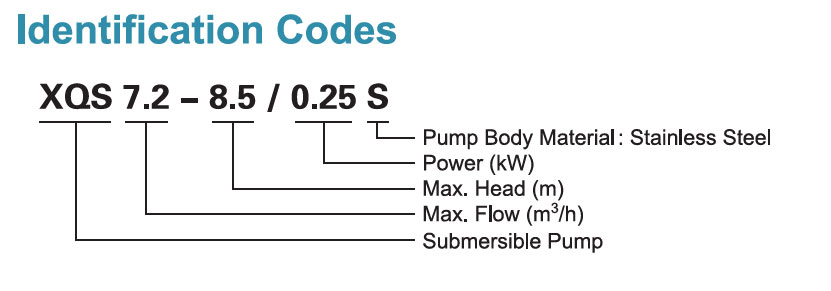

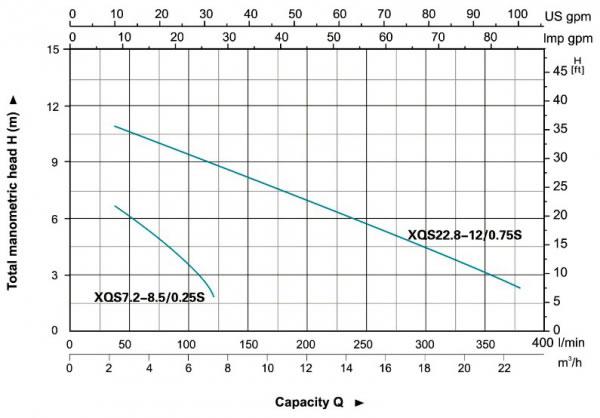

| Model | Power | Outlet diameter (mm) | Voltage (V/Hz) | Max. flow (l/min) | Max. head (m) | GW (kgs) | Packing size (mm) | Quantity (PCS/20'TEU) | ||
| KW | HP | |||||||||
| XQS7.2-8.5/0.25S | 0.25 | 0.33 | 40,32,25 | 220/50 | 120 | 8.5 | 10.2 | 175x175x360 | 2131 | |
| XQS22.8-12/0.75S | 0.75 | 1 | 50 | 220/50 | 380 | 12 | 19.2 | 220x220x440 | 1132 | |

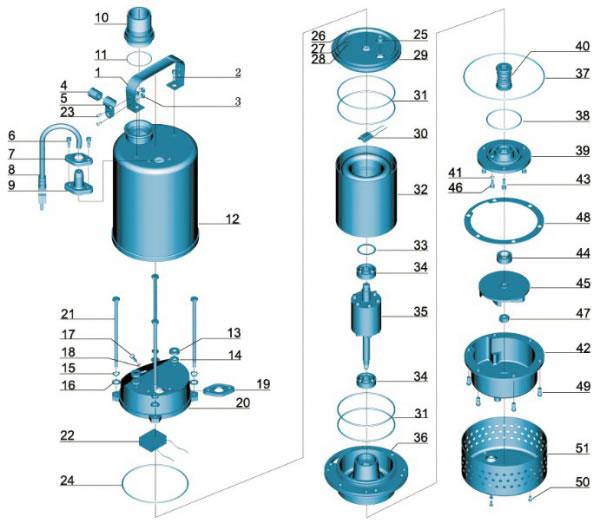

| No. | Part | Material | No. | Part | Material |
| 1 | Handle | Stainless Steel | 27 | Stretching washer | 65Mn |
| 2 | Screw | Stainless Steel | 28 | Washer | CuZn40 |
| 3 | Nut | Stainless Steel | 29 | Motor Cover | Stainless Steel |
| 4 | Protector | FKM | 30 | Thermal Protector | |
| 5 | Cable Presser | Stainless Steel | 31 | O-ring | FKM |
| 6 | Screw | Stainless Steel | 32 | Stator | |
| 7 | Flange | Stainless Steel | 33 | Wave washer | 65Mn |
| 8 | Cable | 34 | Ball Bearing | ||
| 9 | Cable Protector | CR | 35 | Rotor | |
| 10 | Connector | ABS | 36 | Connection Part | Stainless Steel |
| 11 | O-ring | FKM | 37 | O-ring | FKM |
| 12 | Motor Shell | Stainless Steel | 38 | O-ring | FKM |
| 13 | Rubber Washer | FKM | 39 | Oil Chamber Cover | Stainless Steel |
| 14 | Washer | Steel | 40 | Mechanical Seal | Sic/Sic |
| 15 | Stretching washer | Stainless Steel | 41 | O-ring | FKM |
| 16 | Washer | Stainless Steel | 42 | Pump Body | Stainless Steel |
| 17 | Screw | Stainless Steel | 43 | Screw | Stainless Steel |
| 18 | O-ring | FKM | 44 | Oil Seal | |
| 19 | Rubber Washer | FKM | 45 | Impeller | Stainless Steel |
| 20 | Capacitor Cover | Stainless Steel | 46 | Screw | Stainless Steel |
| 21 | Bolt | Stainless Steel | 47 | Nut | Stainless Steel |
| 22 | Capacitor | 48 | Rubber Washer | FKM | |
| 23 | Screw | Stainless Steel | 49 | Screw | Stainless Steel |
| 24 | O-ring | FKM | 50 | Screw | Stainless Steel |
| 25 | Cable Holder | NBR | 51 | Filter Mesh | Stainless Steel |
| 26 | Screw | CuZn40 |
LEO is a listed company in China (stock code 002131), LEO is a leading stainless steel submersible pump manufacturer only offers high quality pumps. LEO has made millions of pumps now used in more than 140 countries, and is offering residential water pumps, three phase pumps, centrifugal pumps with custom solutions. LEO stainless steel water pumps can meet you any requires in domestic pumping systems.
