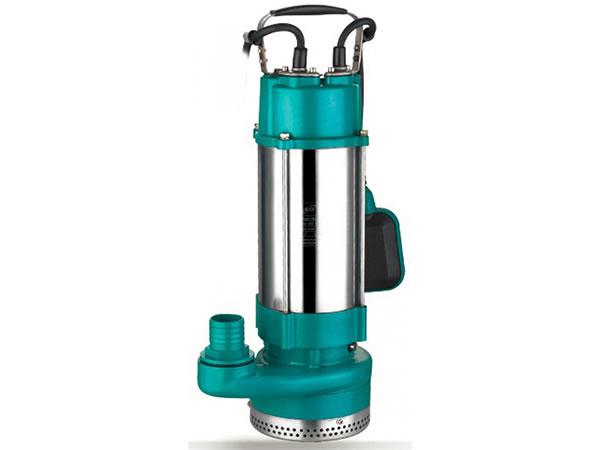

XQS-I 1.5HP 2HP Stainless Steel Submersible Pump
Application
- Small electrical irrigation and drainage equipment.
- Particularly applied in urban well water pumping, field irrigation and drainage, garden irrigation and household water supply, as well as drainage of industrial accumulated water, water supply and drainage for construction, livestock breeding, etc.
Submersible Pump Motor Features
- Copper winding.
- Built-in thermal protector.
- Stainless steel welded shaft.
- Insulation class: B.
- Protection class: IP68.
XQS-I 1.5HP 2HP Stainless Steel Submersible Pump Features
- Max. immersion depth: 5m.
- Max. liquid temperature: +40℃.
- Liquid pH value: 6.5-8.

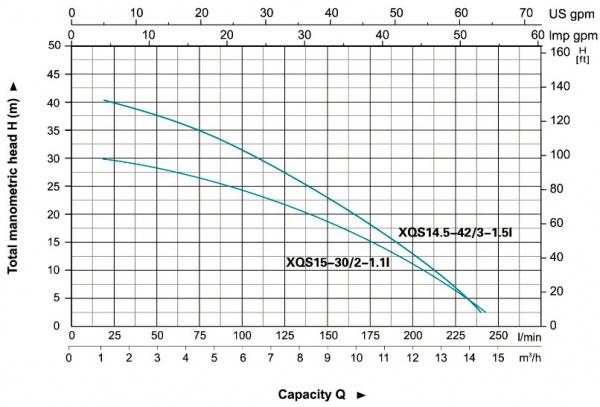

| Model | Power | Outlet diameter (mm) | Voltage (V/Hz) | Max. flow (l/min) | Max. head (m) | GW (kgs) | Packing size (mm) | Quantity (PCS/20'TEU) | ||
| KW | HP | |||||||||
| XQS15-30/2-1.1l | 1.1 | 1.5 | 50 | 220/50 | 250 | 30 | 23.3 | 555x290x220 | 840 | |
| XQS14.5-42/3-1.5l | 1.5 | 2 | 50 | 220/50 | 250 | 42 | 26.8 | 625x285x205 | 814 | |

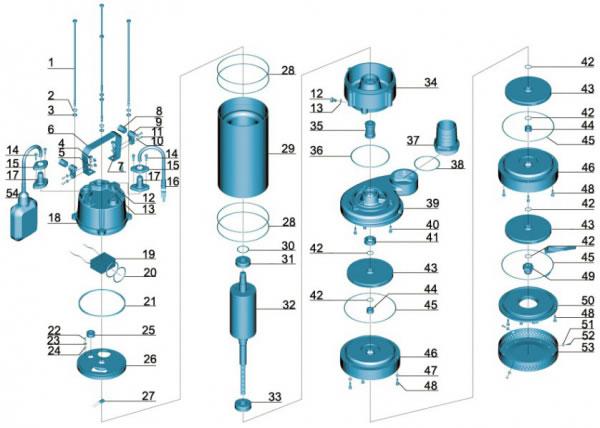

| No. | Part | Material | No. | Part | Material |
| 1 | Bolt | Stainless Steel | 29 | Stator | |
| 2 | Stretching washer | Stainless Steel | 30 | Wave Washer | 65Mn |
| 3 | Washer | Stainless Steel | 31 | Ball Bearing | |
| 4 | Bolt | Stainless Steel | 32 | Rotor | |
| 5 | Washer | Stainless Steel | 33 | Ball Bearing | |
| 6 | Handle | Stainless Steel | 34 | Connection Part | HT200 |
| 7 | Nut | Stainless Steel | 35 | Mechanical Seal | Carbon/Ceramic |
| 8 | Protector | NR | 36 | O-ring | NBR |
| 9 | Cable Presser | Stainless Steel | 37 | Connector | ABS |
| 10 | Washer | Stainless Steel | 38 | O-ring | NBR |
| 11 | Screw | Stainless Steel | 39 | Pump Body | HT200 |
| 12 | Bolt | Stainless Steel | 40 | Screw | Stainless Steel |
| 13 | O-ring | NBR | 41 | Oil Seal | |
| 14 | Screw | Stainless Steel | 42 | Rubber Washer | NBR |
| 15 | Flange | Stainless Steel | 43 | Impeller | HT200 |
| 16 | Cable | 44 | Ring | Steel | |
| 17 | Cable Protector | CR | 45 | O-ring | NBR |
| 18 | Capacitor Cover | HT200 | 46 | Diffuser | HT200 |
| 19 | Capacitor | 47 | Stretching washer | Stainless Steel | |
| 20 | O-ring | NBR | 48 | Screw | Stainless Steel |
| 21 | Rubber Washer | NBR | 49 | Nut | Stainless Steel |
| 22 | Screw | CuZn40 | 50 | Pump Cover | HT200 |
| 23 | Stretching washer | 65Mn | 51 | Washer | Stainless Steel |
| 24 | Washer | CuZn40 | 52 | Screw | Stainless Steel |
| 25 | Cable holder | NBR | 53 | Filter Mesh | Steel |
| 26 | Motor Cover | HT200 | 54 | Float Switch | |
| 27 | Thermal Protector | 55 | Key | Steel | |
| 28 | O-ring | NBR |
LEO is a listed company in China (stock code 002131), LEO is a leading stainless steel submersible pump manufacturer only offers high quality pumps. LEO has made millions of pumps now used in more than 140 countries, and is offering residential water pumps, sewage pumps, deep well pumps with custom solutions. LEO stainless steel water pumps can meet you any requires in domestic pumping systems.
