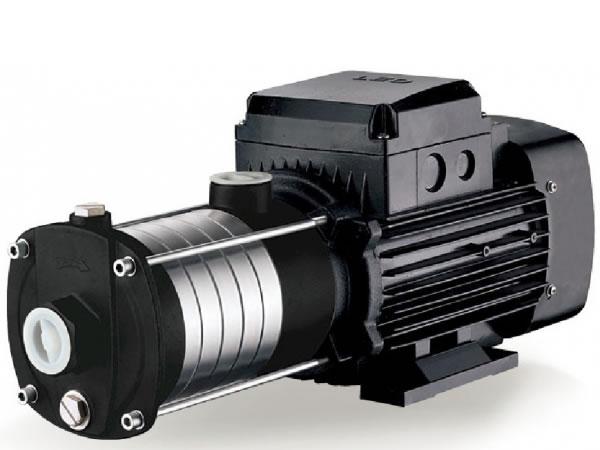

ECH10 Stainless Steel Horizontal Multistage Centrifugal Pump

ECH10 Stainless Steel Horizontal Multistage Centrifugal Pump

Application
- Stainless steel horizontal multistage centrifugal pump is applicable to household water supply, equipment support, pipeline pressurization, garden watering, vegetable greenhouse watering, fish farming and poultry raising, industrial and mining, water supply and drainage of enterprises and high-rise buildings, central air conditioner and centralized heating circulation system, etc.

Stainless Steel Horizontal Multistage Centrifugal Pump Features
- AISI 304 shaft.
- Max. liquid temperature: +85℃.
- Altitude: up to 1000m.
- Max. suction: 8m.
- Max. inlet pressure: limited by max. operating pressure.

Stainless Steel Horizontal Multistage Centrifugal Pump Motor Features
- Motor with cooper winding.
- Built-in thermal protector for single phase motor.
- Insulation class: F.
- Protection class: IP44.
- Max. ambient temperature: +40℃.

Technical Data of ECH10 Stainless Steel Horizontal Multistage Centrifugal Pump
MODEL POWER Q(m³/h) 0 1 2 3 4 5 6 7 8 9 10 11 12
KW HP Q(l/min) 0 17 33 50 67 83 100 117 133 150 167 183 200
ECH(m)10-10 0.75 1 H(m) 10.1 10 9.8 9.7 9.6 9.4 9.1 8.7 8.2 7.7 6.8 5.8 4.8
ECH(m)10-20 19.5 19.3 19 18.9 18.7 18.4 17.9 17.1 16.3 15.3 14 12.5 10.6
ECH(m)10-30 1.1 1.5 29.3 28.9 28.6 28.5 28.3 27.7 27.1 26.3 24.9 23.4 21.4 19.3 16.9
ECH(m)10-40 1.5 2 40 40 39.6 39.7 39.8 39.2 38.6 37.6 35.9 33.9 31.2 28.2 24.6
ECH(m)10-50 2.2 3 49.9 49.6 49.2 48.9 49.1 48.6 47.8 46.4 44.4 42.2 39.5 35.9 31.1
ECH10 Stainless Steel Horizontal Multistage Centrifugal Pump Hydraulic Performance Curves
Material Table of ECH10 Stainless Steel Horizontal Multistage Centrifugal Pump
No. Part Material
1 Bottom Plate Q235
2 Support Cast Iron/AISI 304
3 Stator
4 Terminal Box ABS
5 Bearing
6 Rotor
7 Rear Cover ZL 102
8 Fan PP
9 Fan Cover 08F
10 Mechanical Seal Carbon/Ceramic
11 Diffuser AISI 304
12 Sleeve AISI 304
13 Impeller AISI 304
14 Pump Body Cast Iron/AISI 304

LEO is a listed company in China (stock code 002131), LEO is a leading stainless steel horizontal multistage centrifugal pump manufacturer only offers high quality pumps. LEO has made millions of pumps now used in more than 140 countries, and is offering residential water pumps, sewage pumps, booster pumps, deep well pumps with custom solutions. LEO horizontal multistage water pumps can meet you any requires in domestic pumping systems.
