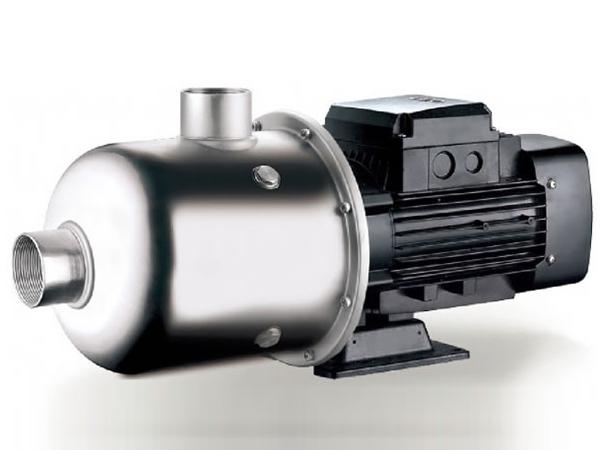

EDH2 Single Phase / 3 Phase Stainless Steel Centrifugal Water Pump
Application
- Stainless steel horizontal multistage centrifugal pump is applicable to household water supply, equipment support, pipeline pressurization, garden watering, vegetable greenhouse watering, fish farming and poultry raising, industrial and mining, water supply and drainage of enterprises and high-rise buildings, central air conditioner and centralized heating circulation system, etc.
Stainless Steel Horizontal Multistage Centrifugal Pump Features
- AISI 304 shaft.
- Max. liquid temperature: +85℃.
- Altitude: up to 1000m.
- Max. suction: 8m.
- Max. inlet pressure: limited by max. operating pressure.
Stainless Steel Horizontal Multistage Centrifugal Pump Motor Features
- Motor with cooper winding.
- Built-in thermal protector for single phase motor.
- Insulation class: F.
- Protection class: IP44.
- Max. ambient temperature: +40℃.

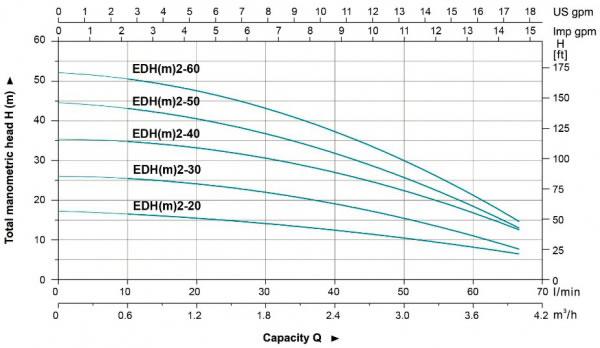

| MODEL | POWER | Q(m³/h) | 0 | 0.5 | 1 | 1.5 | 2 | 2.5 | 3 | 3.5 | 4 | ||
| Single Phase | Three Phase | KW | HP | Q(l/min) | 0 | 8.3 | 16.7 | 25 | 33.3 | 41.7 | 50 | 58.3 | 66.7 |
| 0.37 | 0.5 | H(m) | 17.5 | 16.7 | 16.2 | 15 | 14 | 12 | 10.6 | 8.5 | 6.5 | ||
| 0.37 | 0.5 | 27.5 | 26.6 | 25.6 | 23.8 | 21.3 | 19.2 | 16.1 | 12.5 | 7.2 | |||
| 0.55 | 0.75 | 37 | 36.2 | 35.4 | 33.2 | 30.7 | 27.6 | 22.9 | 18.4 | 12.6 | |||
| 0.55 | 0.75 | 48 | 44 | 42.1 | 39.5 | 35.9 | 30.8 | 25.7 | 19.6 | 13.5 | |||
| 0.75 | 1 | 52 | 50.8 | 49.2 | 45.6 | 41.5 | 36.2 | 30.4 | 23.4 | 14.3 | |||

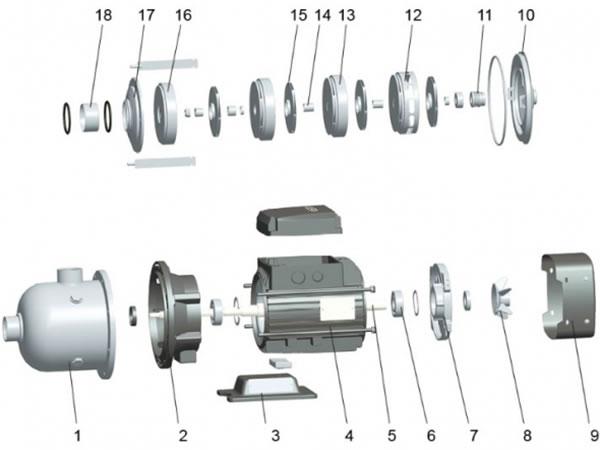

| No. | Part | Material |
| 1 | Pump Body | AISI 304 |
| 2 | Support | ZL 102 |
| 3 | Bottom Plate | Cast Iron |
| 4 | Stator | |
| 5 | Rotor | |
| 6 | Bearing | |
| 7 | Reae Cover | ZL 102 |
| 8 | Fan | PP |
| 9 | Fan Cover | 08F |
| 10 | Bracket Cover | AISI 304 |
| 11 | Mechanical Seal | Carbon/Ceramic |
| 12 | Diffuser3 | AISI 304 |
| 13 | Diffuser2 | AISI 304 |
| 14 | Sleeve | AISI 304 |
| 15 | Impeller | AISI 304 |
| 16 | Spacer Bush | AISI 304 |
| 17 | Pressure Plate | AISI 304 |
| 18 | Diffuser1 | AISI 304 |
