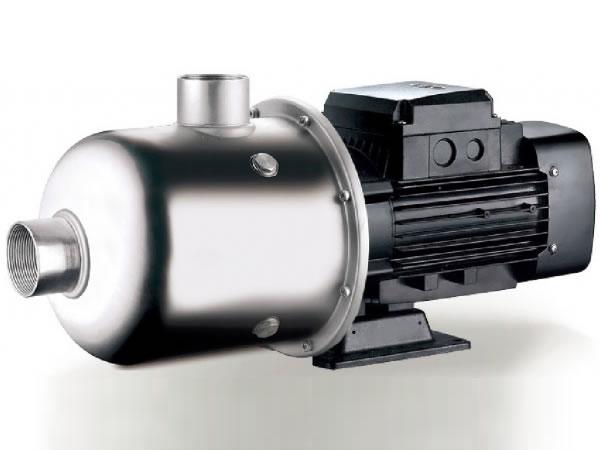

EDH10 Single Phase Multistage Stainless Steel Centrifugal Pump

EDH10 Single Phase Multistage Stainless Steel Centrifugal Pump

Application
- Stainless steel horizontal multistage centrifugal pump is applicable to household water supply, equipment support, pipeline pressurization, garden watering, vegetable greenhouse watering, fish farming and poultry raising, industrial and mining, water supply and drainage of enterprises and high-rise buildings, central air conditioner and centralized heating circulation system, etc.

Stainless Steel Horizontal Multistage Centrifugal Pump Features
- AISI 304 shaft.
- Max. liquid temperature: +85℃.
- Altitude: up to 1000m.
- Max. suction: 8m.
- Max. inlet pressure: limited by max. operating pressure.

Stainless Steel Horizontal Multistage Centrifugal Pump Motor Features
- Motor with cooper winding.
- Built-in thermal protector for single phase motor.
- Insulation class: F.
- Protection class: IP44.
- Max. ambient temperature: +40℃.

Technical Data of EDH10 Single Phase Multistage Stainless Steel Centrifugal Pump
MODEL POWER Q(m³/h) 0 2 4 6 7 8 9 10 11 12 13 14
Single Phase KW HP Q(l/min) 0 33 67 100 117 133 150 167 183 200 217 233
EDH(m)10-10 0.75 1 H(m) 9.4 9.6 9.5 9.1 8.7 8.3 7.8 7.1 6.4 5.4 4.4 3.1
EDH(m)10-20 19.2 18.8 18.7 17.9 17.1 16.3 15.3 13.9 12.4 10.7 8.4 6.2
EDH(m)10-30 1.1 1.5 28.5 28.7 28.7 27.5 26.5 25.2 23.6 21.7 19.3 17 14 10
EDH(m)10-40 1.5 2 37 39.9 40.1 38.7 37.2 35.9 33.9 31.6 28.7 24.9 19.7 15.9
EDH(m)10-50 2.2 3 48.3 48.8 49.3 47.2 45.4 43.6 41 38.2 34.2 30 24.5 18
EDH10 Single Phase Multistage Stainless Steel Centrifugal Pump Hydraulic Performance Curves
Material Table of EDH10 Single Phase Multistage Stainless Steel Centrifugal Pump
No. Part Material
1 Pump Body AISI 304/AISI 316
2 Support ZL 102
3 Bottom Plate Cast Iron
4 Stator
5 Rotor
6 Bearing
7 Reae Cover ZL 102
8 Fan PP
9 Fan Cover 08F
10 Bracket Cover AISI 304
11 Mechanical Seal Carbon/Ceramic
12 Diffuser3 AISI 304
13 Diffuser2 AISI 304
14 Sleeve AISI 304
15 Impeller AISI 304
16 Spacer Bush AISI 304
17 Pressure Plate AISI 304
18 Diffuser1 AISI 304

LEO is a listed company in China (stock code 002131), LEO is a leading stainless steel centrifugal pump manufacturer only offers high quality pumps. LEO has made millions of pumps now used in more than 140 countries, and is offering residential water pumps, single phase water pumps, sewage pumps, deep well pumps with custom solutions. LEO single phase multistage water pumps can meet you any requires in domestic pumping systems.
